Designed for Motorsport use the Racetech tube connectors provide a compact and light weight solution for connecting pipework. They offer a fast method of connecting and disconnecting while allowing un-restricted flow.
- Suitable for high pressure applications (140psi working pressure)
- Allows for -/+ 4 degrees of angular misalignment
- No restriction of flow
- Ideal for coolant systems, oil cooler or dry sump systems, intercoolers or air intakes.

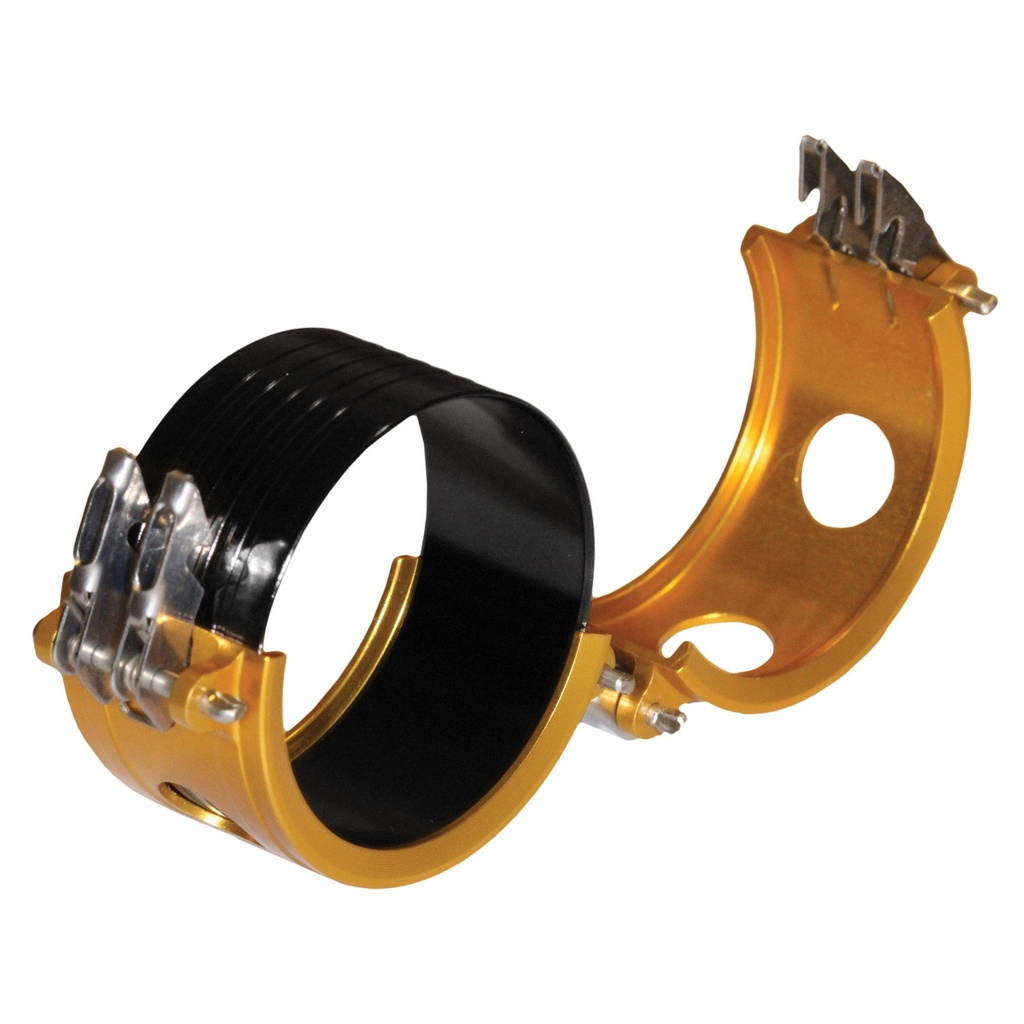

The Racetech tube connectors are manufactured from 7075 grade aluminium so they are light wight and very strong making them ideal for use in Motorsport applications. They feature an easy clasp action for fast removal and refitting and have a low profile body for use in restricted space areas.
There are several components available in the tube connector range to provide a complete solution for pipe joining:

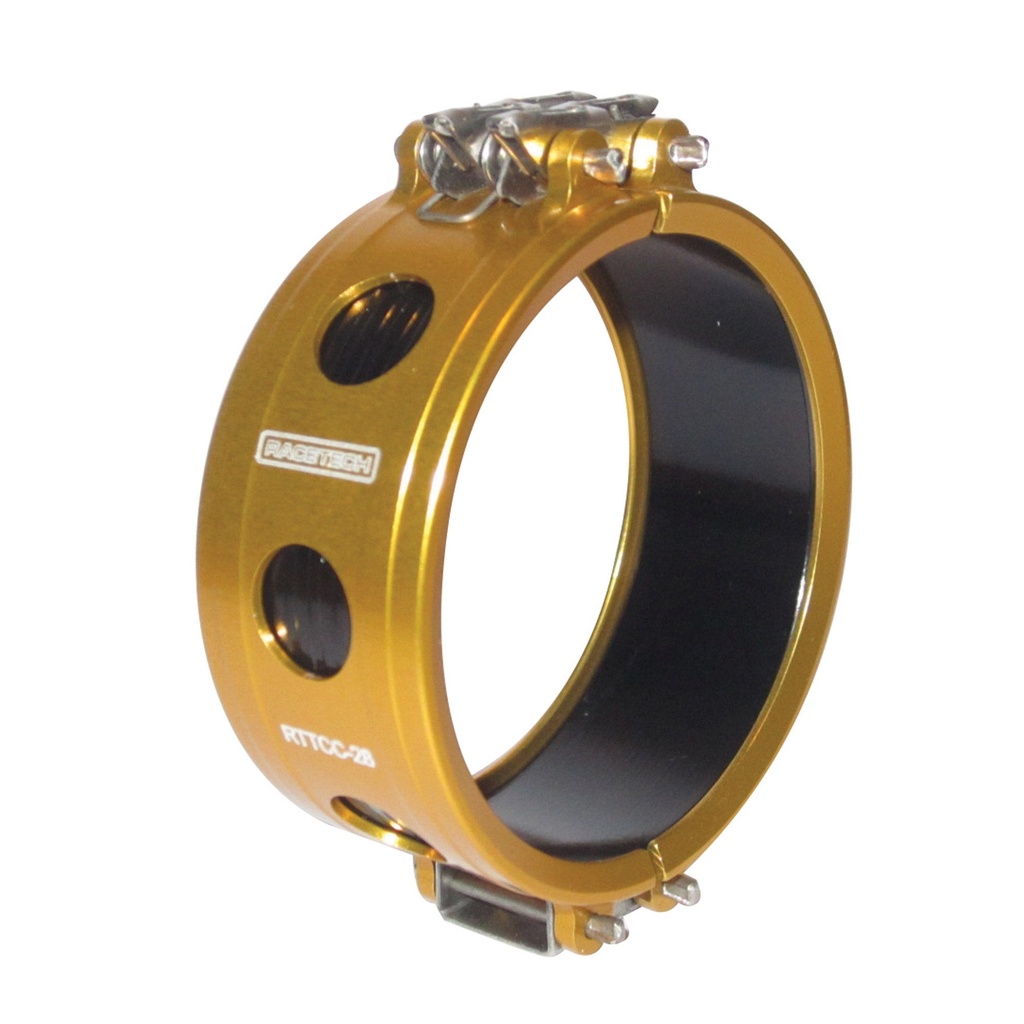

Tube connector - Joins together sleeves or weld ferrules.

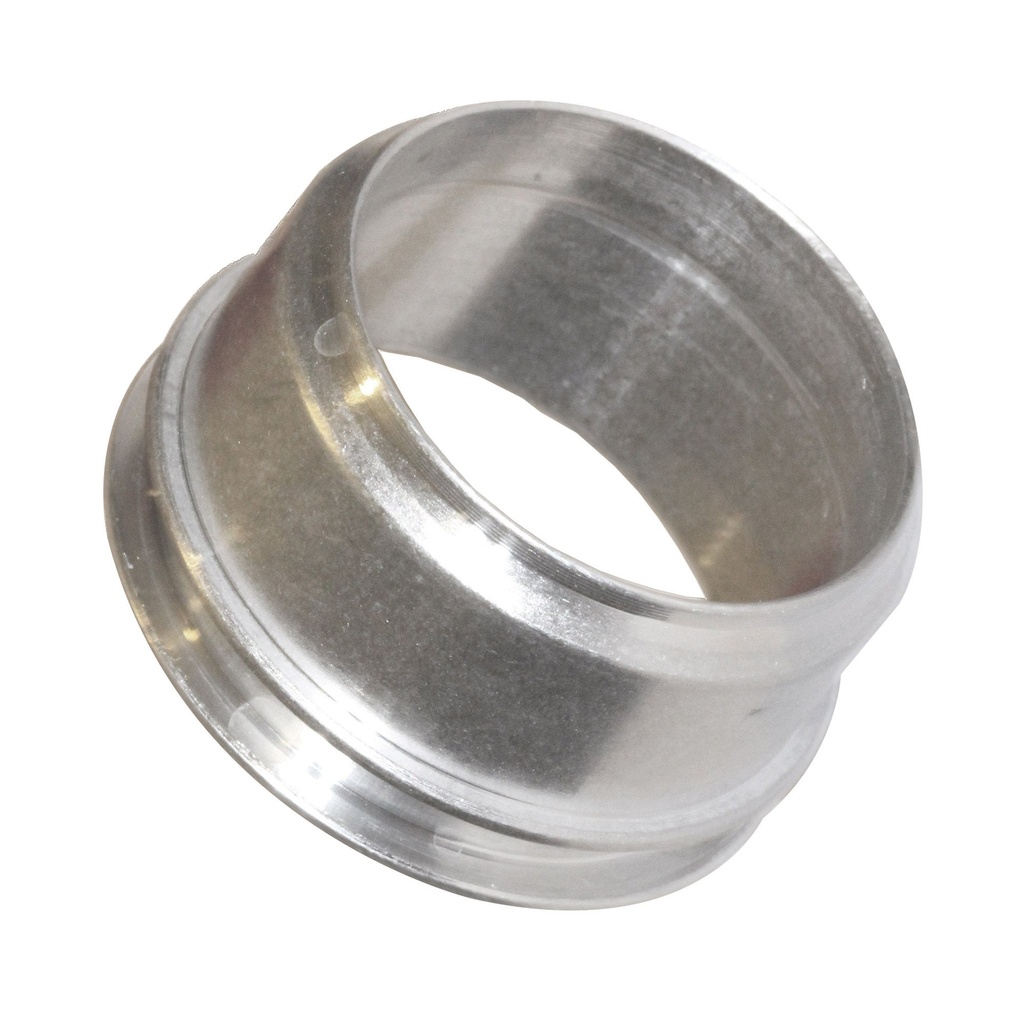

Weld ferrules - For welding to radiators, intercoolers or tanks etc to allow connection to the tube connector.

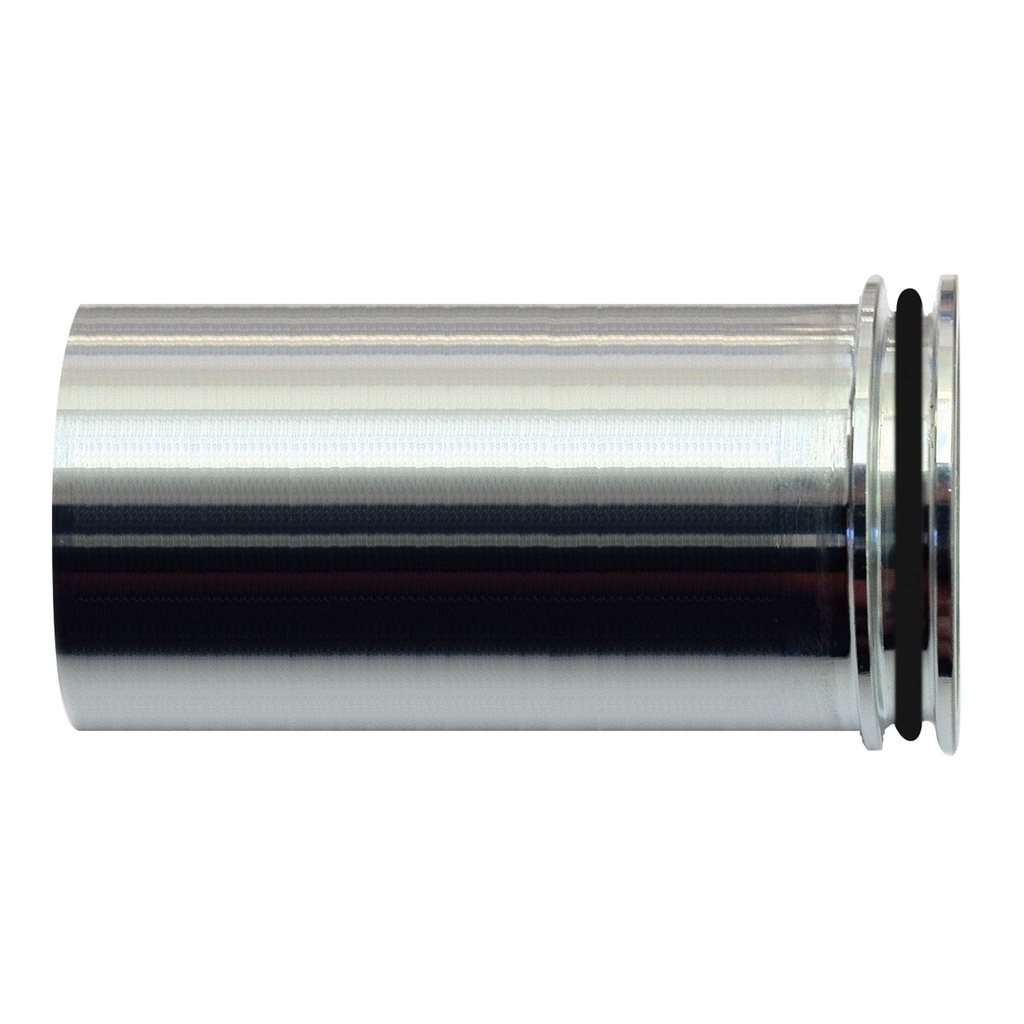

Sleeves - Connects to the tube connectors and can be welded to alloy tubing or clamped to silicone or rubber pipework.

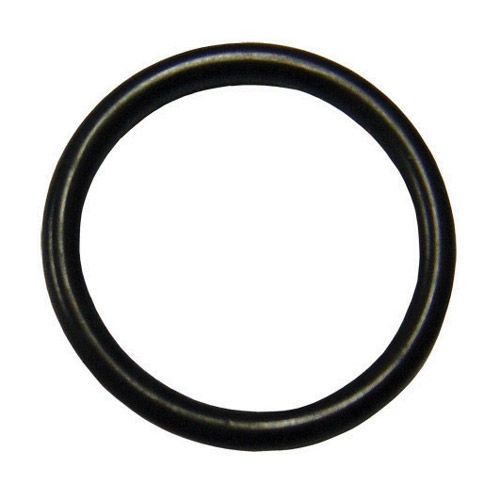

O rings - These fit to the weld ferrules or sleeves to create a seal in the tube connector
Specifications: Operating pressure 140psi, Burst pressure 420psi, Axial movement 0.250", Angular misalignment -/+ 4 degrees
