The multi-port fuel pressure regulator from Radium Engineering features a unique port configuration which allows it to be used to combine twin fuel pumps into s single feed line or to split a single fuel line into 2 lines for systems with 2 fuel rails. It can also be used in a single pump / single fuel rail configuration by plugging unused ports (blanking plugs are supplied in the kit).
- Multiple ports allow use with various fuel system set ups
- Compatible with all gasoline fuels and alcohol blends including E85
- Adjustable fuel pressure
- Ultra high fuel flow suitable for high power applications (tested up to 1400 litres per hour)
The Radium Engineering multi-port fuel pressure regulator is supplied with 2 different diameters of return port orifices to enable the amount of fuel bypassed to be matched to the application. Also included is a bracket to allow the regulator to be base mounted, alternatively if the bracket is not used the regulator can be bulkhead mounted using the mounting holes in the body. Fuel pressure can easily be adjusted using the screw on top of the unit. The body is clearly marked with which direction to turn for increasing or decreasing pressure.

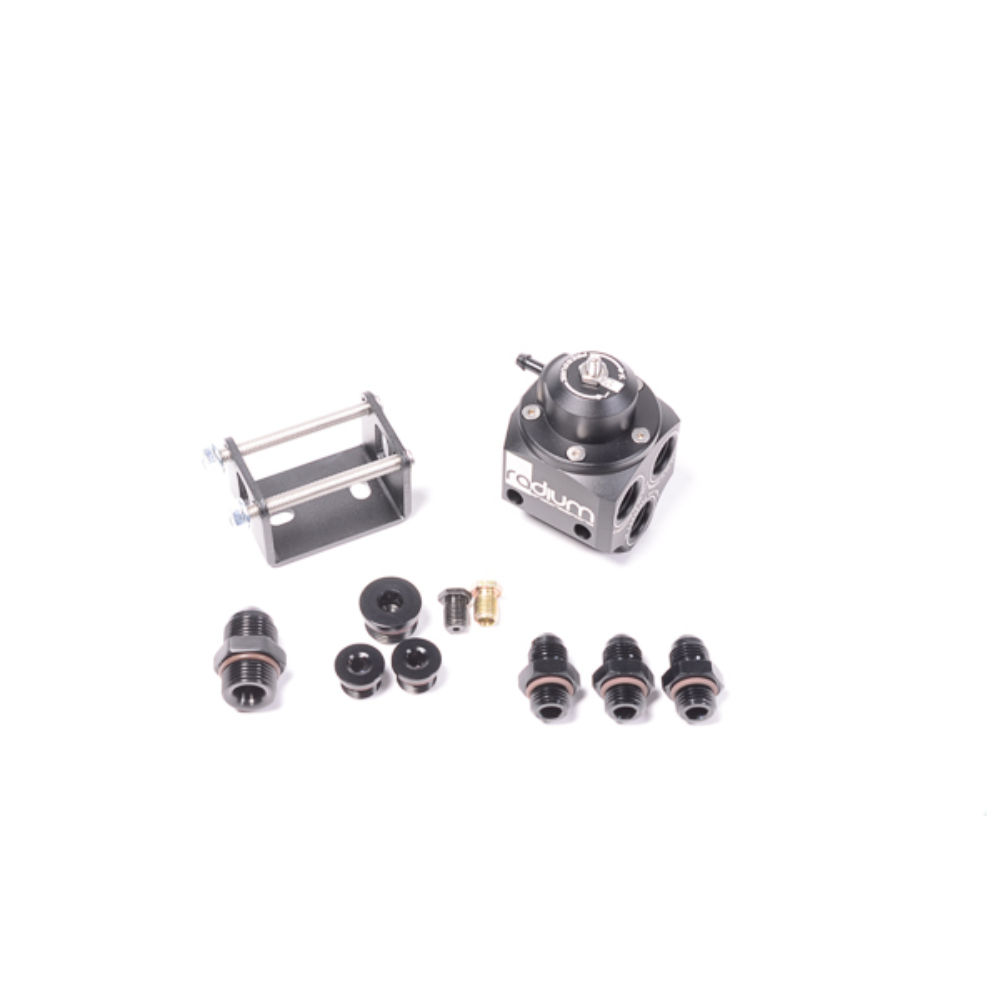

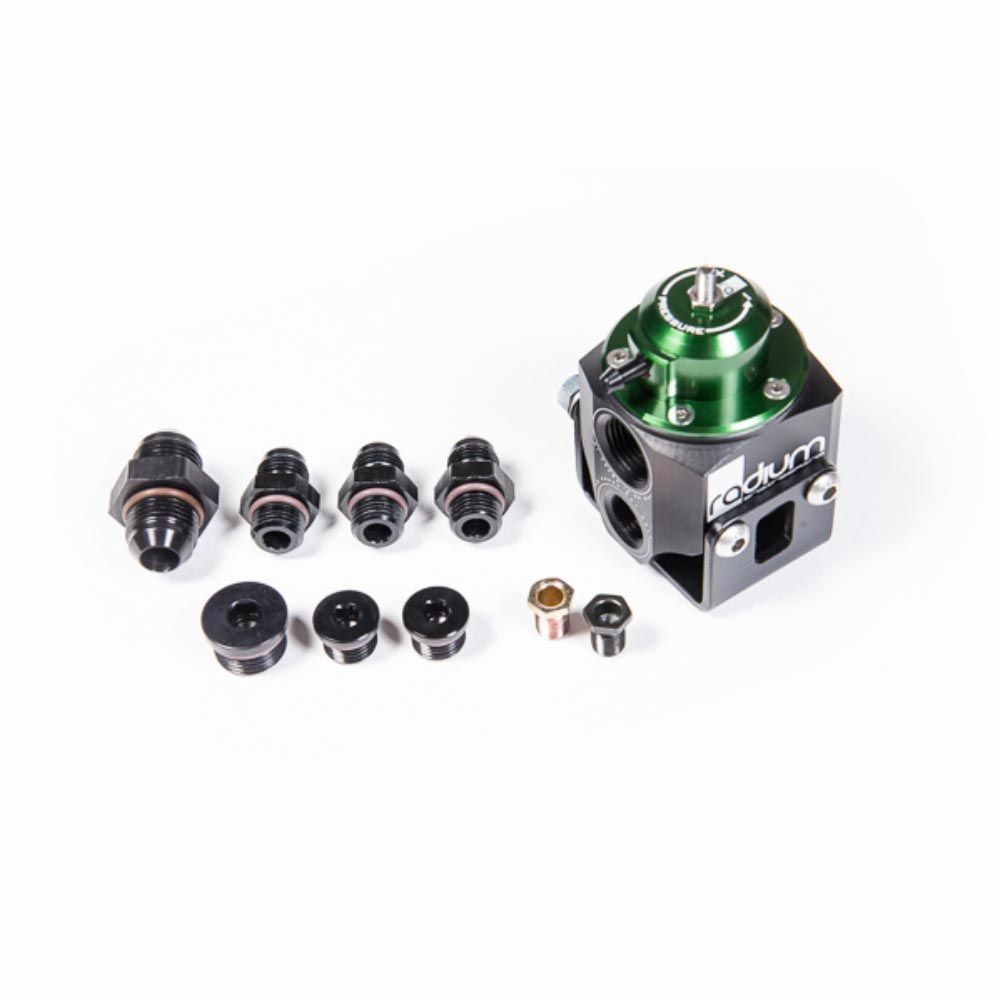

Included in the kit: Multi-port regulator, mounting bracket with hardware, 2 x interchangeable return orifices, 2 x AN -6 ORB blanking plugs, 1 x AN -8 ORB blanking plug, 3 x AN -6 male adaptors, 1 x AN -8 male adaptor.
