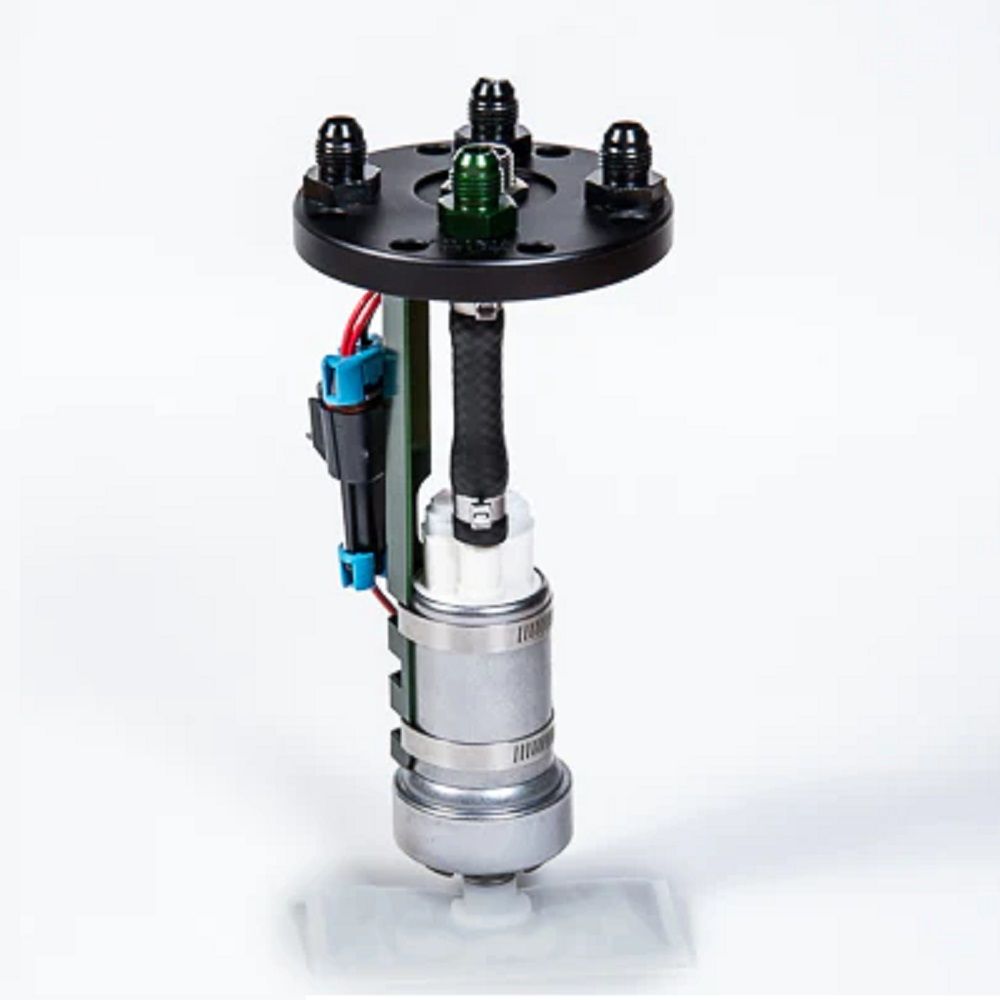

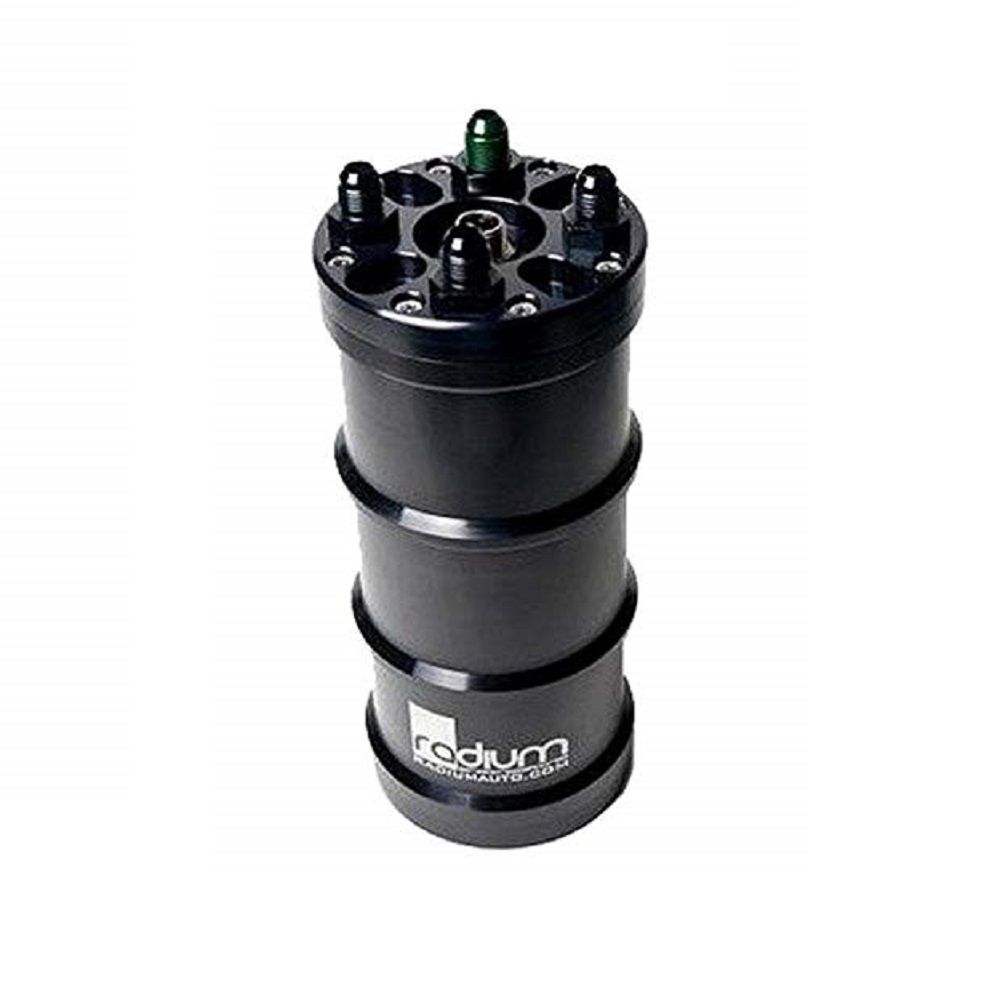

This universal fuel surge tank from Radium Engineering is ideal for vehicles which get used on track days or for Motorsport use. The tank eliminates the risk of fuel starvation due to fuel slosh under high cornering G forces. An integral fuel pump hangar allows a high flow Walbro F90000267 / 274 fuel pump to be fitted (pump not included).
- Prevents damaging fuel starvation due to fuel slosh under high lateral G force
- Allows a high flow aftermarket fuel pumps to be installed
- Ideal fuel delivery solution for track day cars or competition cars
The Radium Engineering universal fuel surge tank works by retaining a constant supply of fuel, separate from the main fuel tank, to feed the high pressure fuel pump. The tank is fed by a feed pump (usually the OEM fuel pump) and also by the return from the fuel pressure regulator to ensure the tank is constantly full. Excess fuel is drained back to the main fuel tank. The surge tank features AN -6 male fittings on the inlets and outlets, larger fittings can be purchased separately if required.
Compatible Fuel Pumps: The universal surge tank is compatible with Walbro (TI Automotive) F90000267 and F90000274 fuel pumps.
