The Radium Engineering fuel pressure regulator / damper combines two critical fuel system components into a high flow, pressure adjustable package. The 1:1 ratio rising rate regulator is capable of flowing over 1400 litres per hour making it suitable for extreme power applications. It comes supplied with different size return orifices to suit differing engine demands.
- Combines a high flow fuel pressure regulator and fuel damper in one compact unit
- Capable of flowing over 1400 litres per hour
- Adjustable fuel pressure
The fuel pressure regulator is adjustable via a screw on top of the unit with markings on the body indicating which way to turn for increasing or decreasing fuel pressure. The inlet / outlet ports are AN -10 ORB and adaptors to AN -6 and AN -8 are included. A 1/8" NPT auxiliary port can be used for a fuel pressure or temperature take off. The integrated fuel pulse damper is designed to stabilise the pressure created by the regulator, pump and injectors.

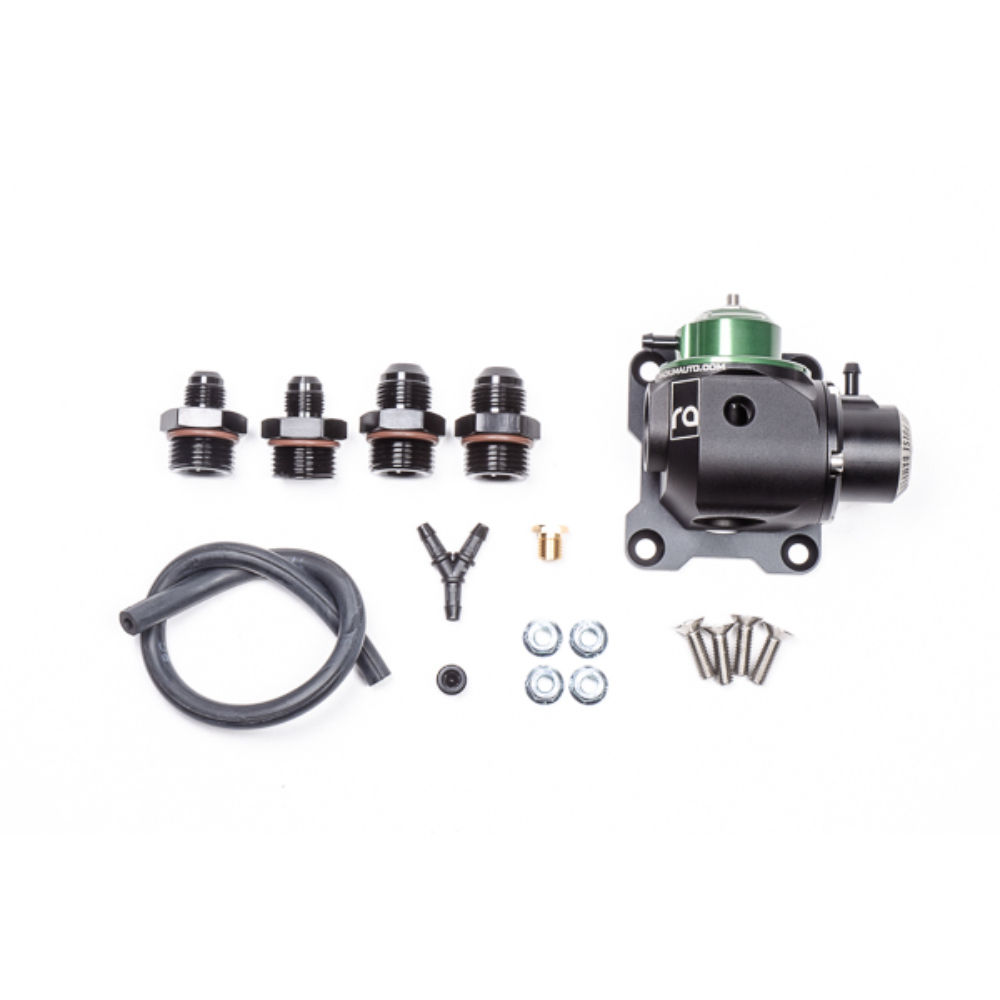

Included in the kit: Fuel pressure regualtor / damperm mounting bracket, 2 x AN -6 adaptors, 2 x AN -8 adaptors, 1/8" NPT blanking plug, interchangeable return orifices, boost reference Y adaptor, 4mm (5/32") bore vacuum hose, mounting hardware.
