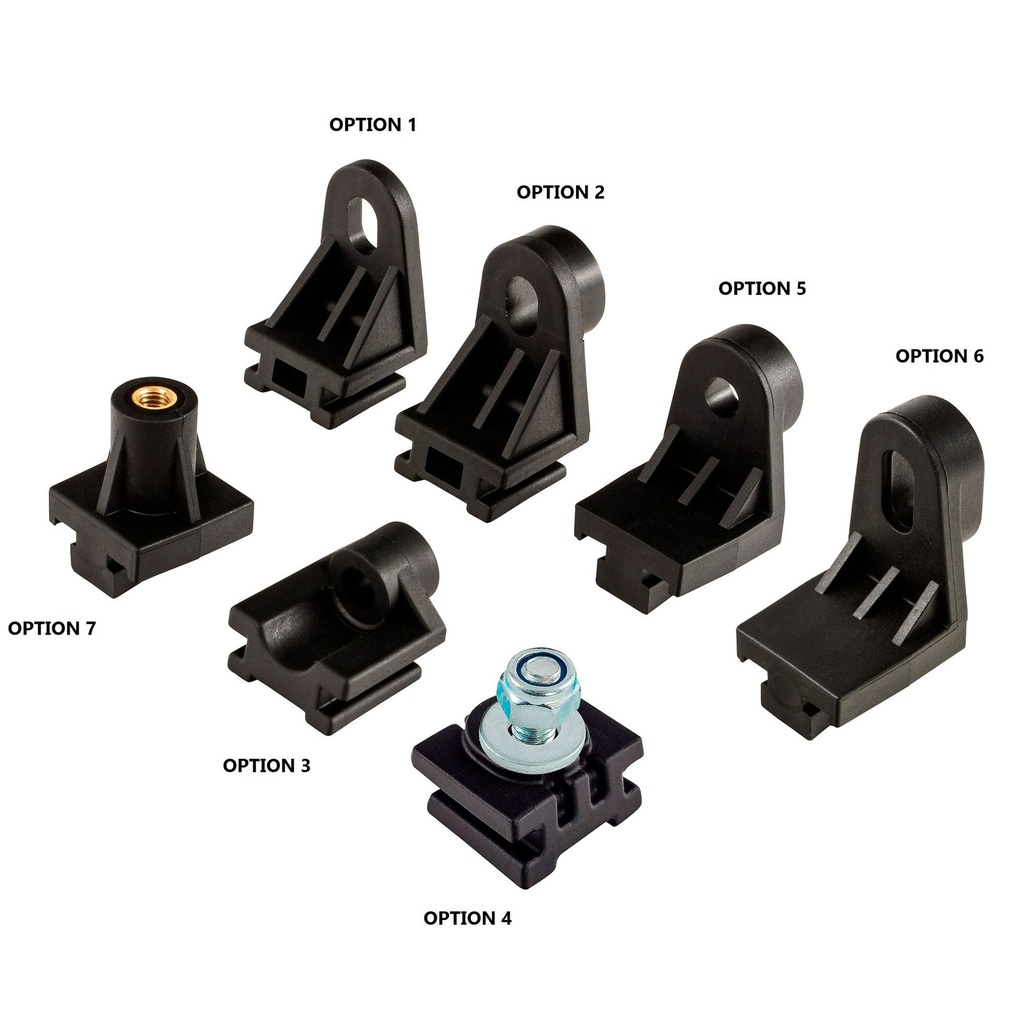

These feet are designed for use with Revotec fans and clip into the fan housing to provide a neat and secure method of attachment. Available in a range of options to suit most applications, please refer to the images for full dimensions.
Options For All Revotec Fans Excluding 13" and 14"

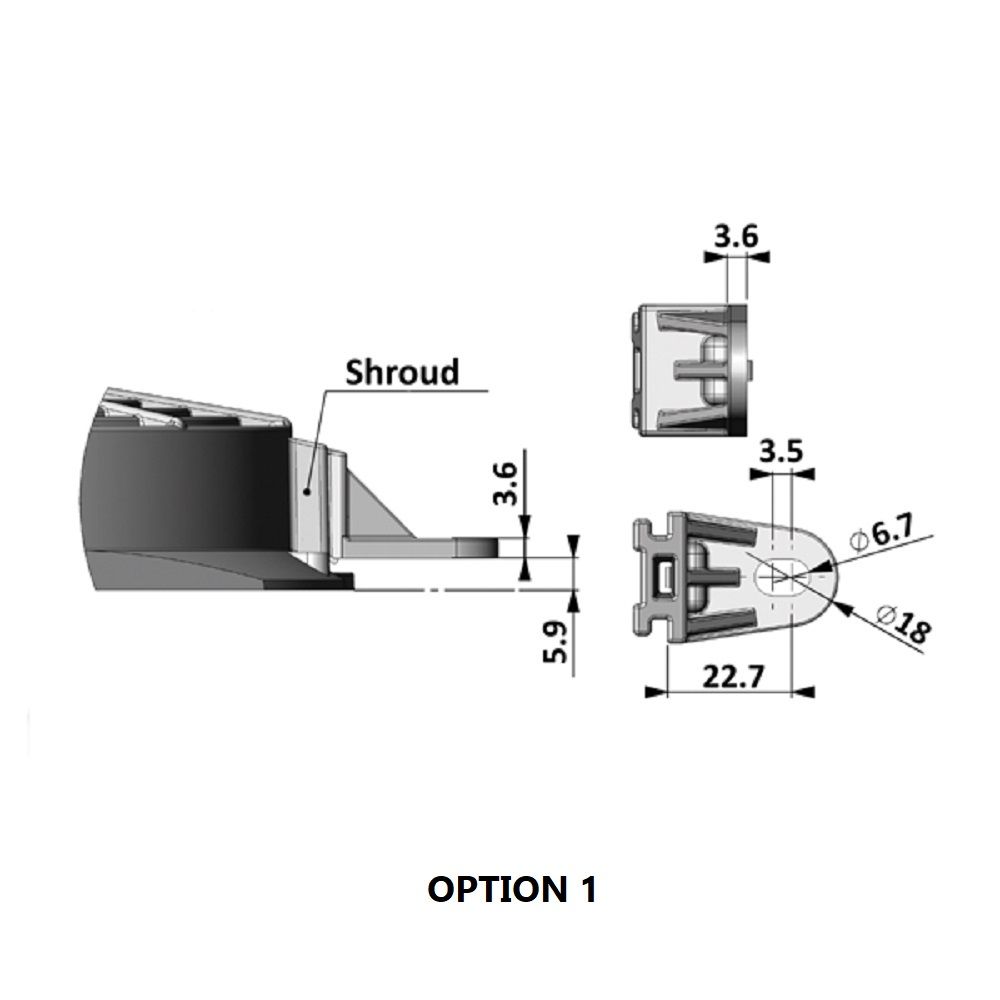

- Option 1: L Type 22.7 x 3.6mm

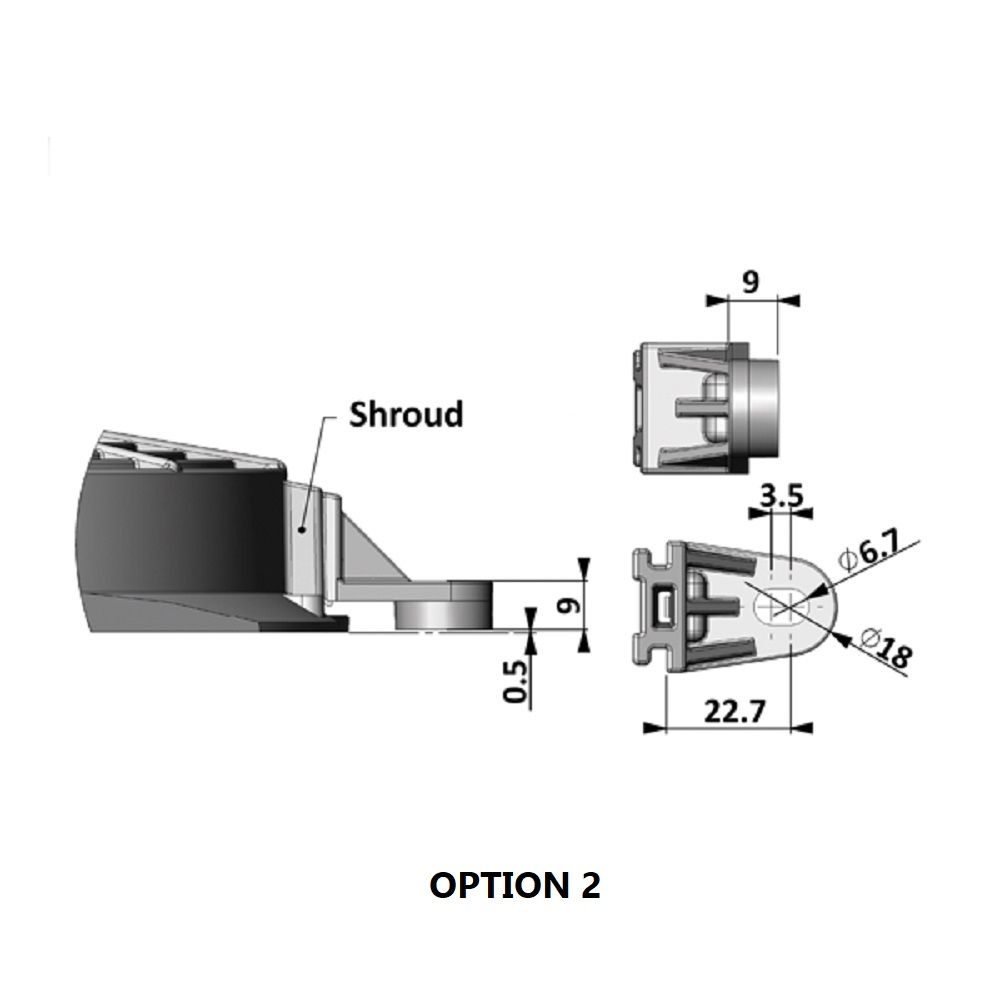

- Option 2: L Type 22.7 x 9mm

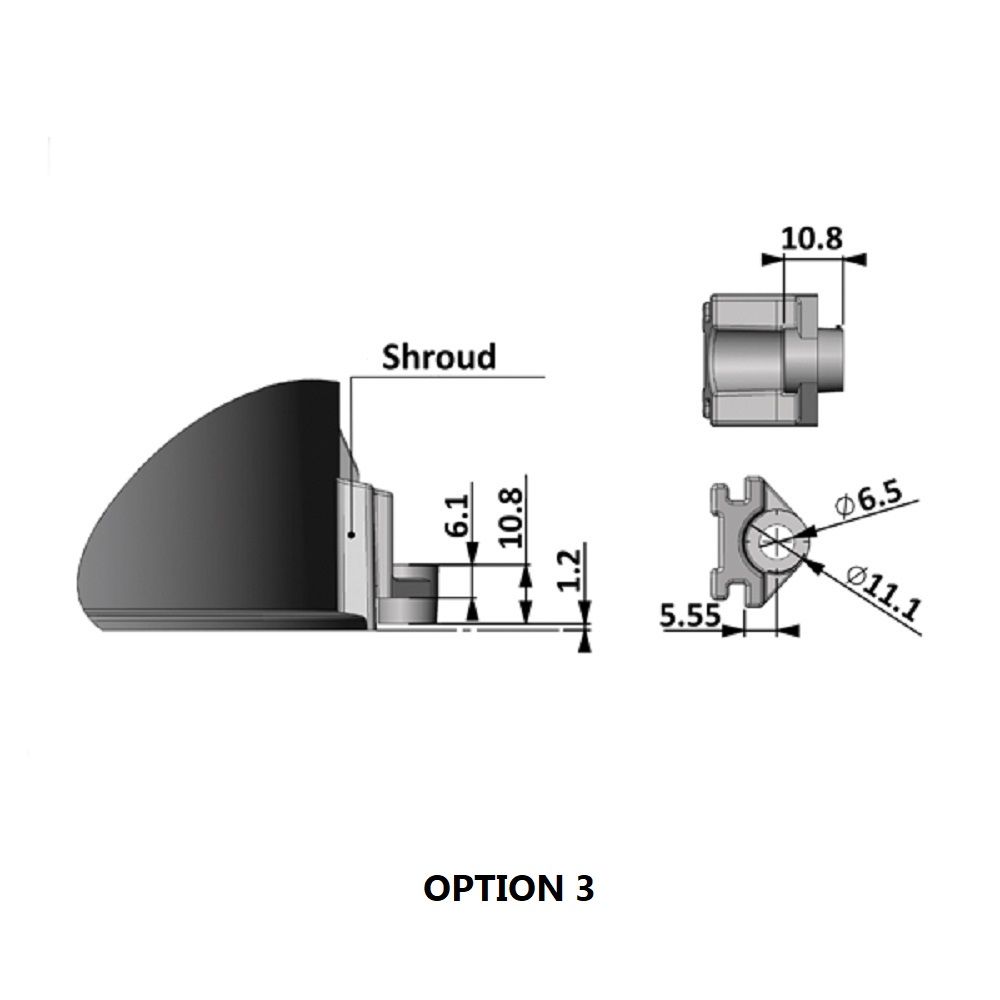

- Option 3: L Type: 10.8 x 5.5mm

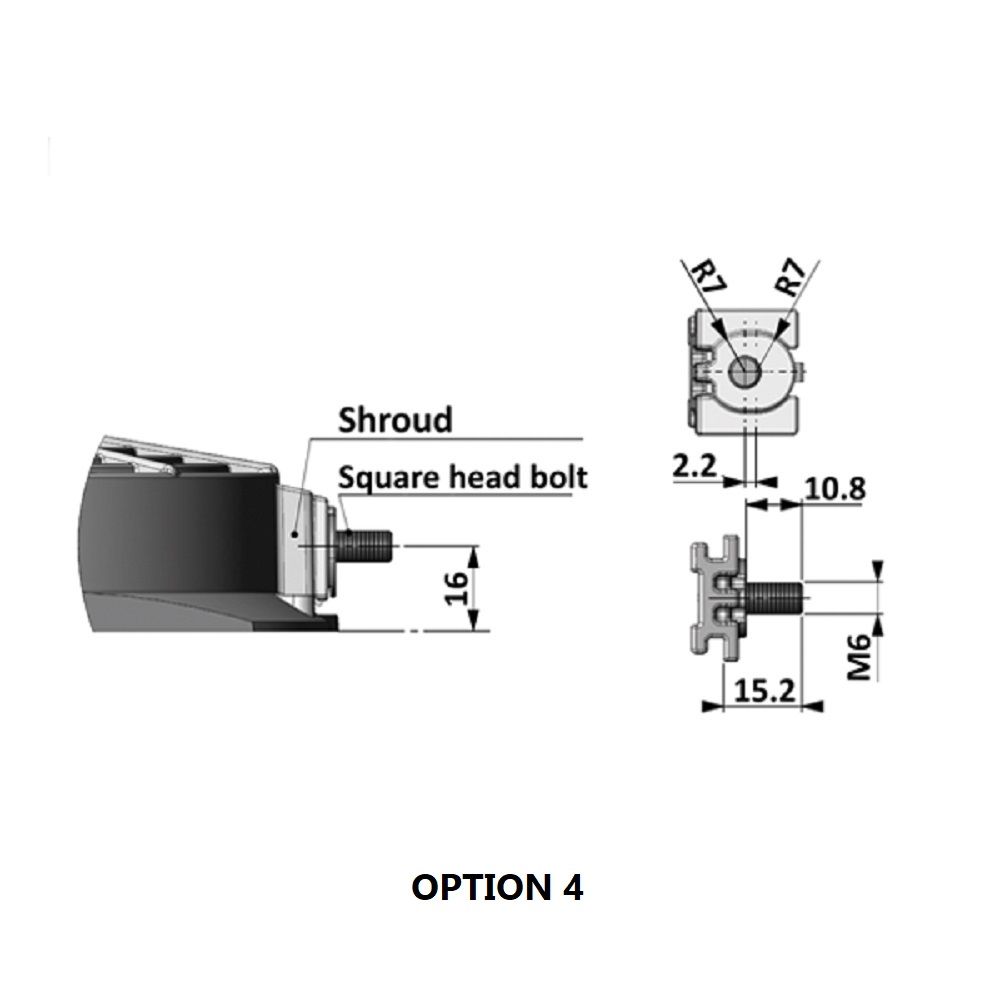

- Option 4: H Type with M6 bolt, nylock nut and washer
Options For Revotec 13" and 14" Fans

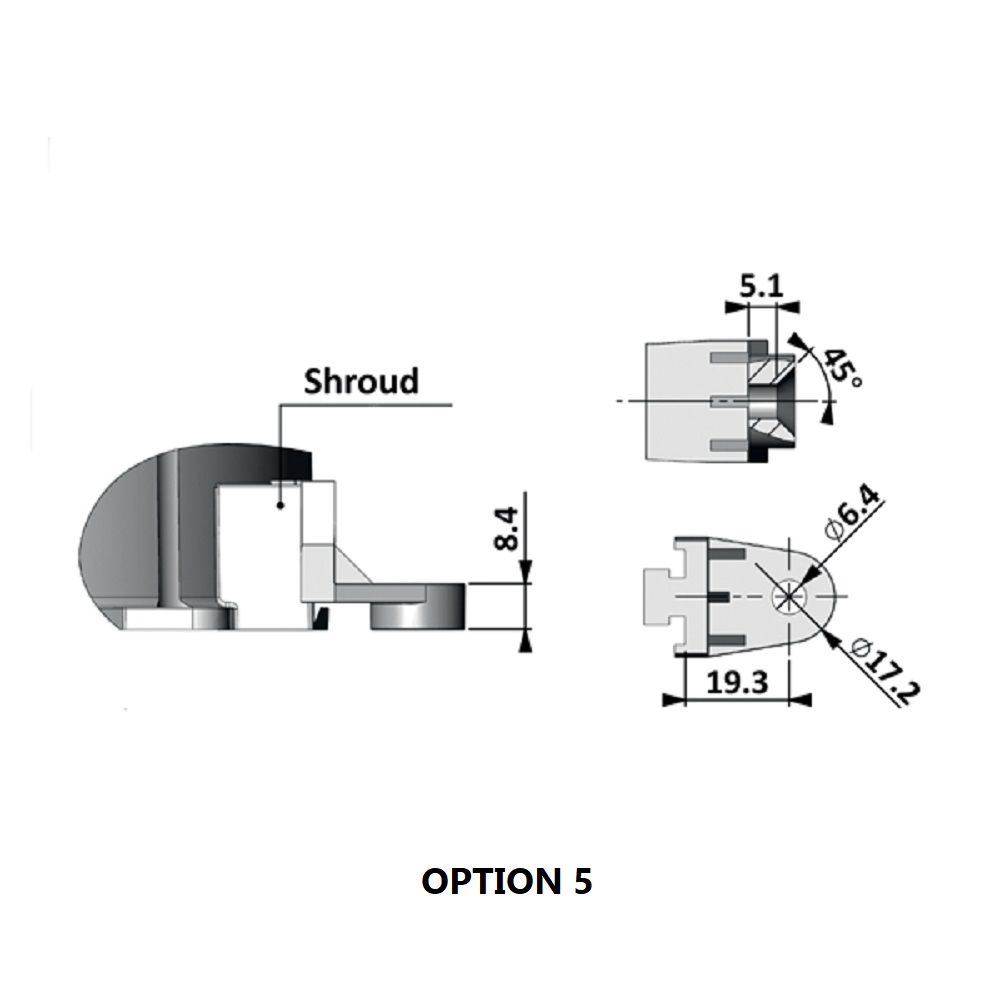

- Option 5: L Type 19.3 x 8.4mm

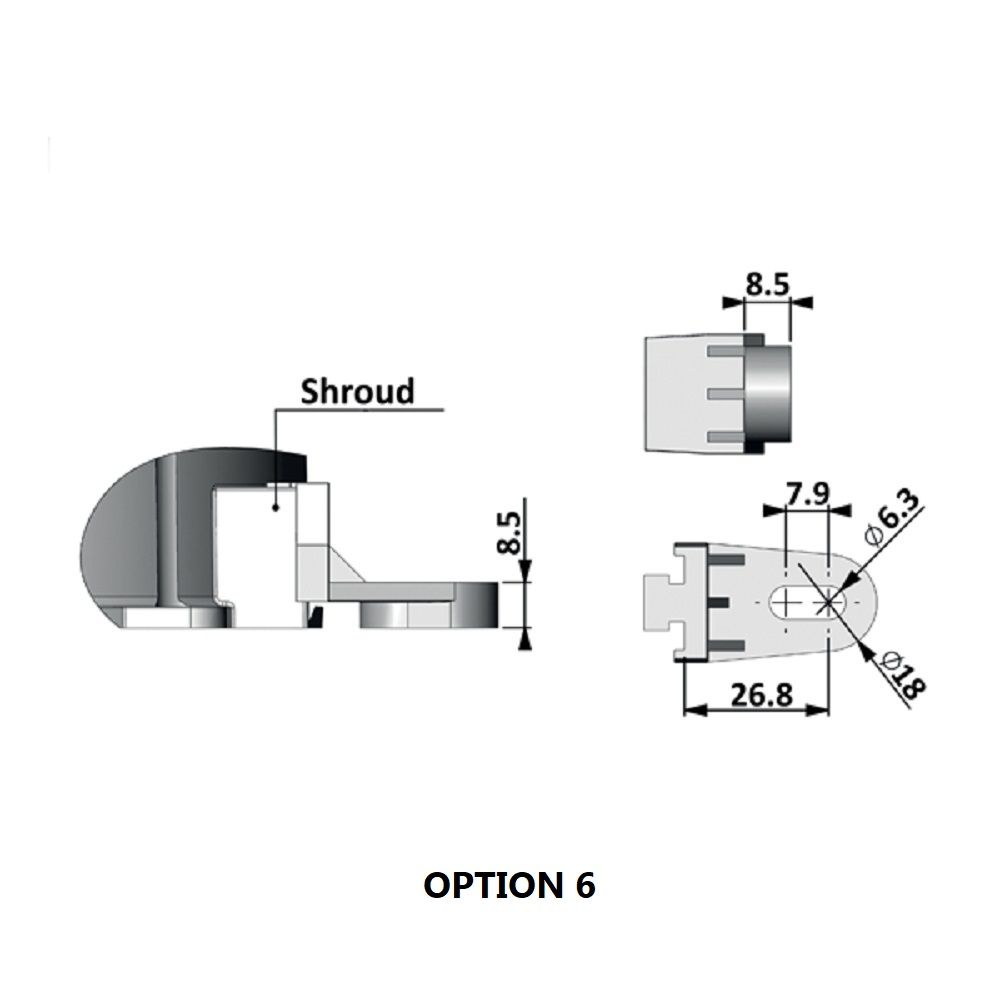

- Option 6: L Type 26.8 x 8.5mm

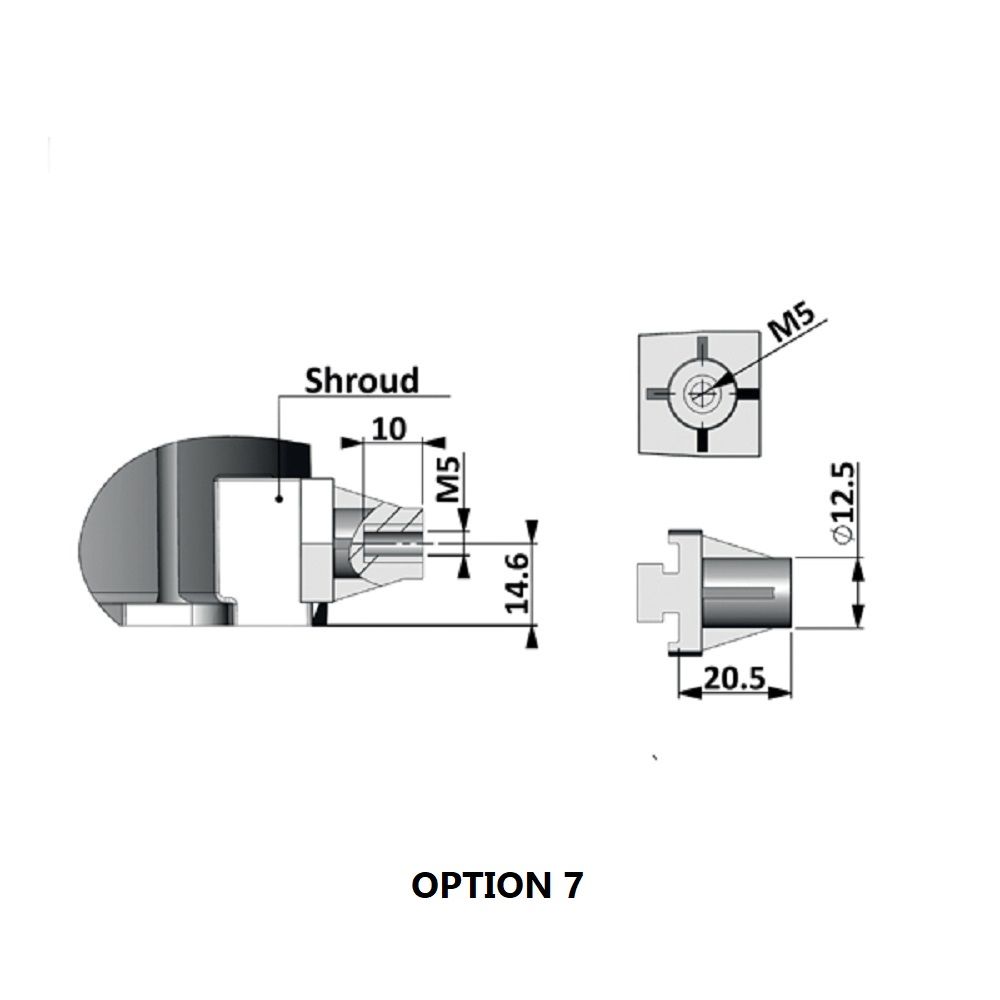

- Option 7: L Type 20.5 x 12.5mm
