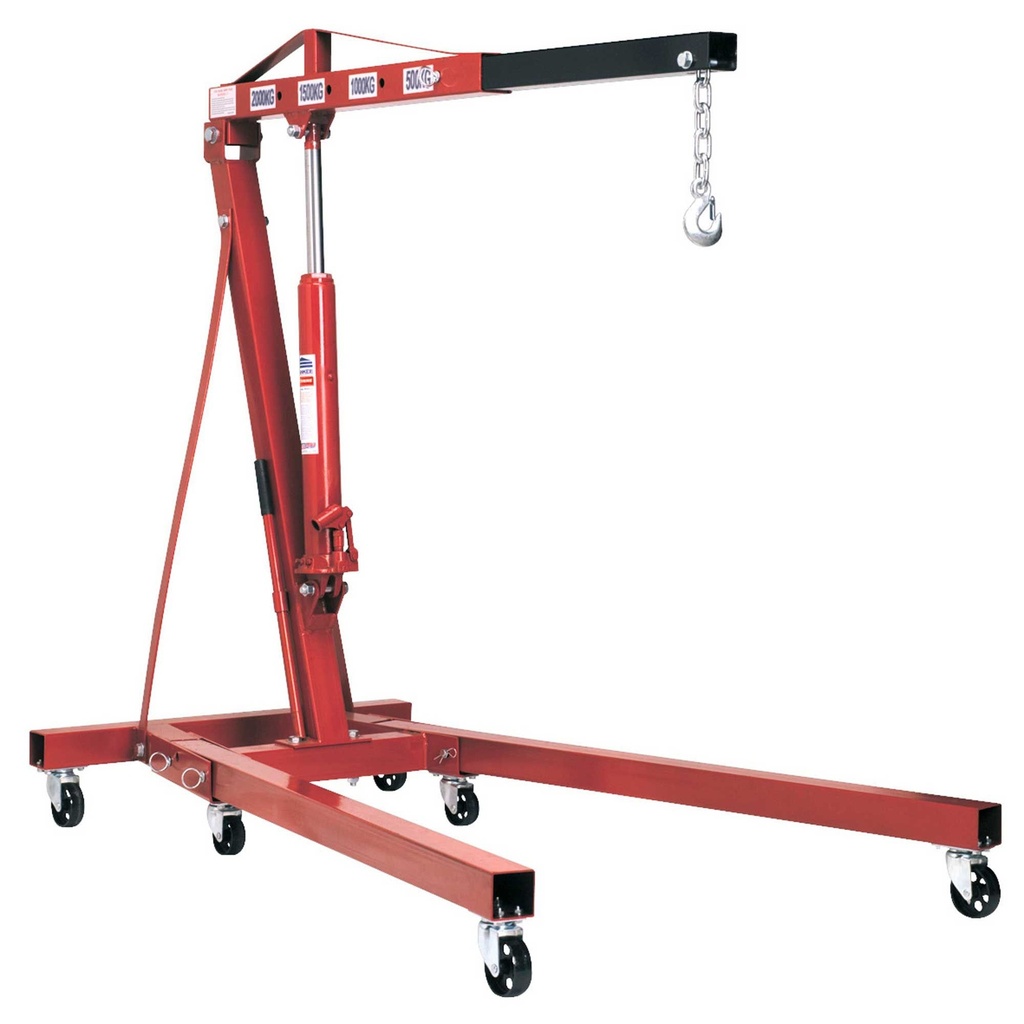

2tonne Folding crane - economy model. Folds for easy storage, freeing valuable workshop space when not in use. Heavy-duty castors. Weighs only 77kg and is perfect for mobile or workshop use. Pump access from side. Delivered in knock-down form for reduced freight cost. Some self-assembly required.
| Model No: | PH20 |
| Lifting Capacity Position 1: | 2000kg |
| Lifting Capacity Position 2: | 1500kg |
| Lifting Capacity Position 3: | 1000kg |
| Lifting Capacity Position 4: | 500kg |
| Lifting Capacity Position 5: | - |
| Max. Lift Ht at Max. Jib Ext. Position 1: | 2060mm |
| Max. Lift Ht at Max. Jib Ext. Position 2: | 2190mm |
| Max. Lift Ht at Max. Jib Ext. Position 3: | 2330mm |
| Max. Lift Ht at Max. Jib Ext. Position 4: | 2490mm |
| Max. Lift Ht at Max. Jib Ext. Position 5: | - |
| Length of Jib Position 1: | 930mm |
| Length of Jib Position 2: | 1110mm |
| Length of Jib Position 3: | 1200mm |
| Length of Jib Position 4: | 1460mm |
| Length of Jib Position 5: | - |
| Height Jib Down: | 1440mm |
| Length: | 1750mm |
| Length Legs Extended: | - |
| Rear Width: | 850mm |
| Width Inside Front Frame: | 915mm |
| Width Front Frame: | 1055mm |
| Height Legs Folded: | 1540mm |
| Height of Frame: | 195mm |
| Weight: | 77kg |
