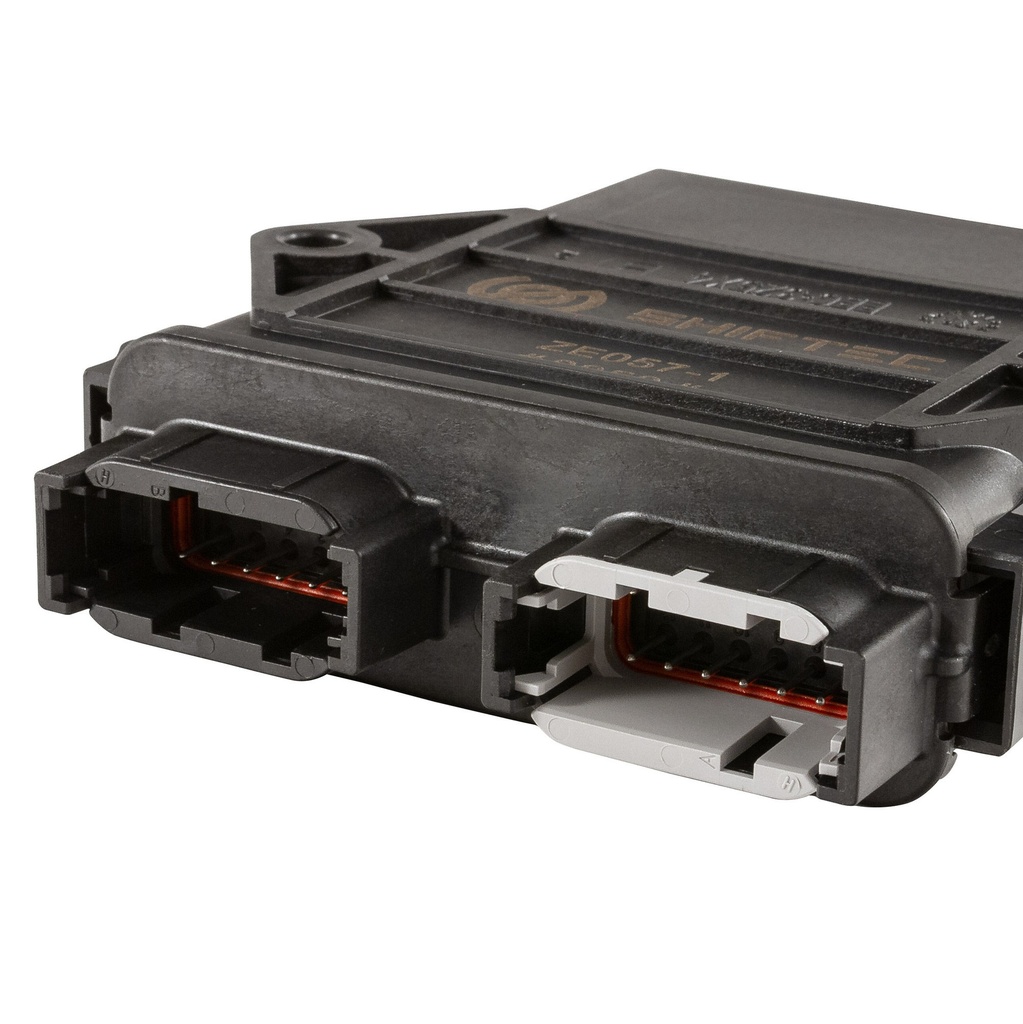

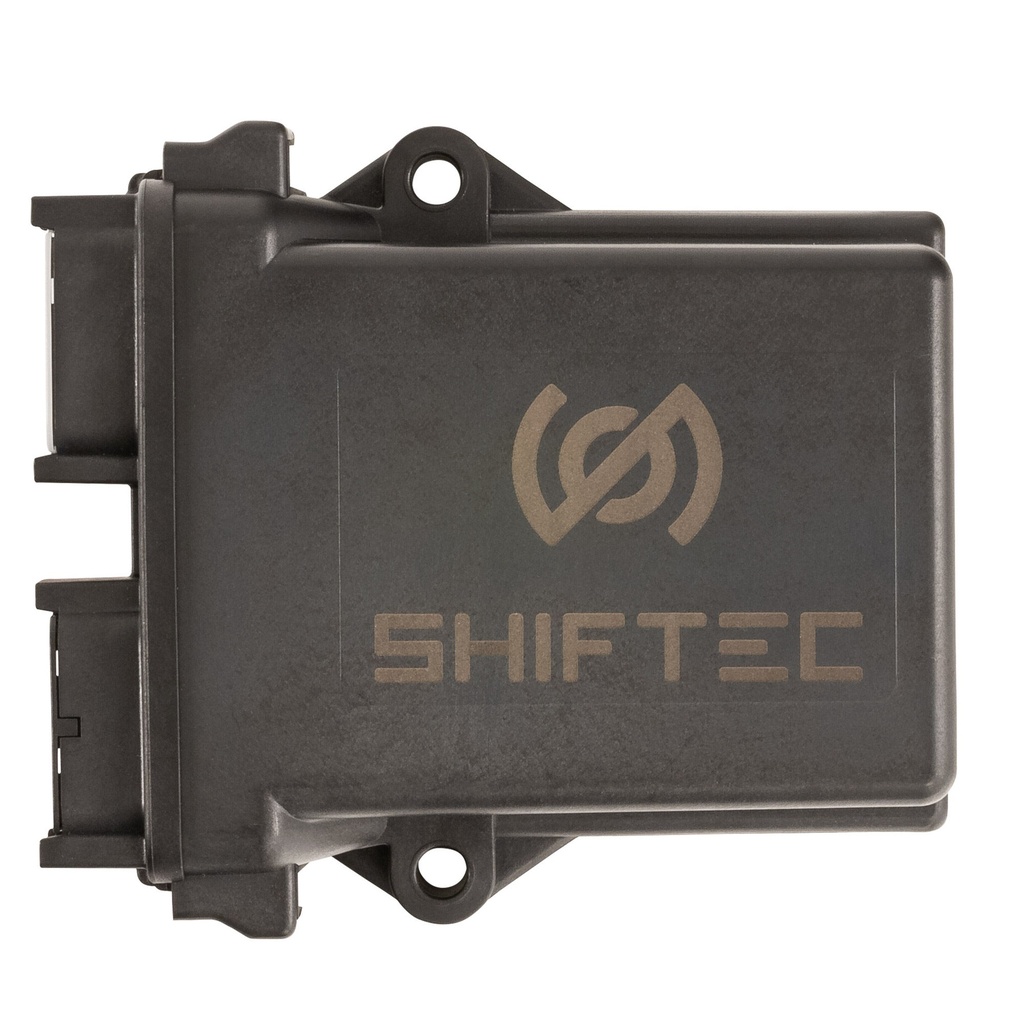

This GCU500 is a powerful transmission controller and logger packaged in a compact and environmentally sealed ABS casing. Connectivity is with standard DTM connectors and communication link is via a simple USB connection. The programming of the GCU500 is done through the simple to use Shiftec software that features ready set up tabs and templates.
- 6 analogue inputs including 2 differential inputs
- Dedicated speed input
- Full closed loop 3 stage shift control
- Auto upshift strategy
- Off condition shifts (on throttle down shift, off throttle up shift)
- Sophisticated diagnostics and state machines
- CAN link enabled
- Fully featured safety features and fail safe parameters
- CAN analyser functionality with direct PC logging, transmit, engineering conversion for all formats and bit packing
- Supports FBW and pneumatic blip
- Reverse battery, over-voltage and load dump protection
Connecting the GCU500 to a vehicle may either be by hard wire or linked over a CAN system. The inbuilt burst enabled data logging allows it to maximise data storage. Combined with full diagnostics and live state machines to allow simple set up and analysis.
Specifications
| Brand | Shiftec |
