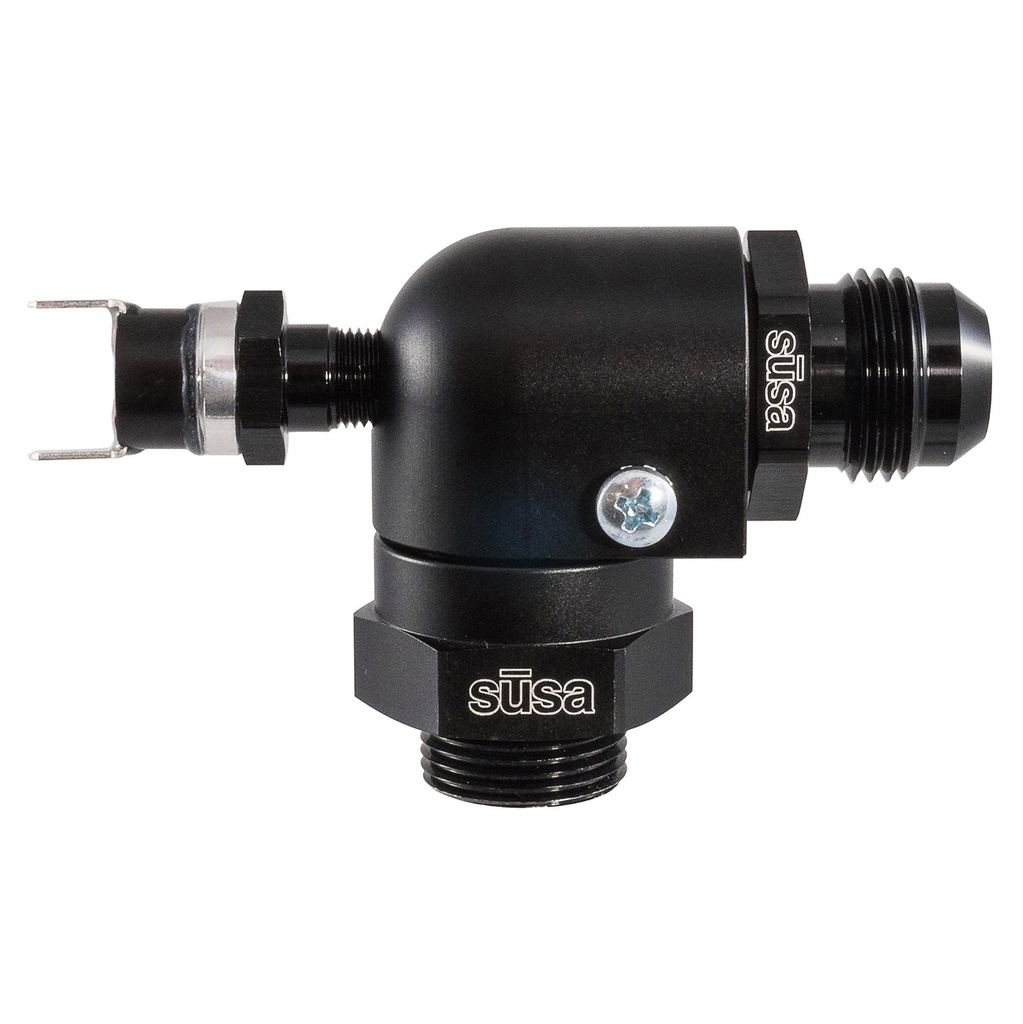

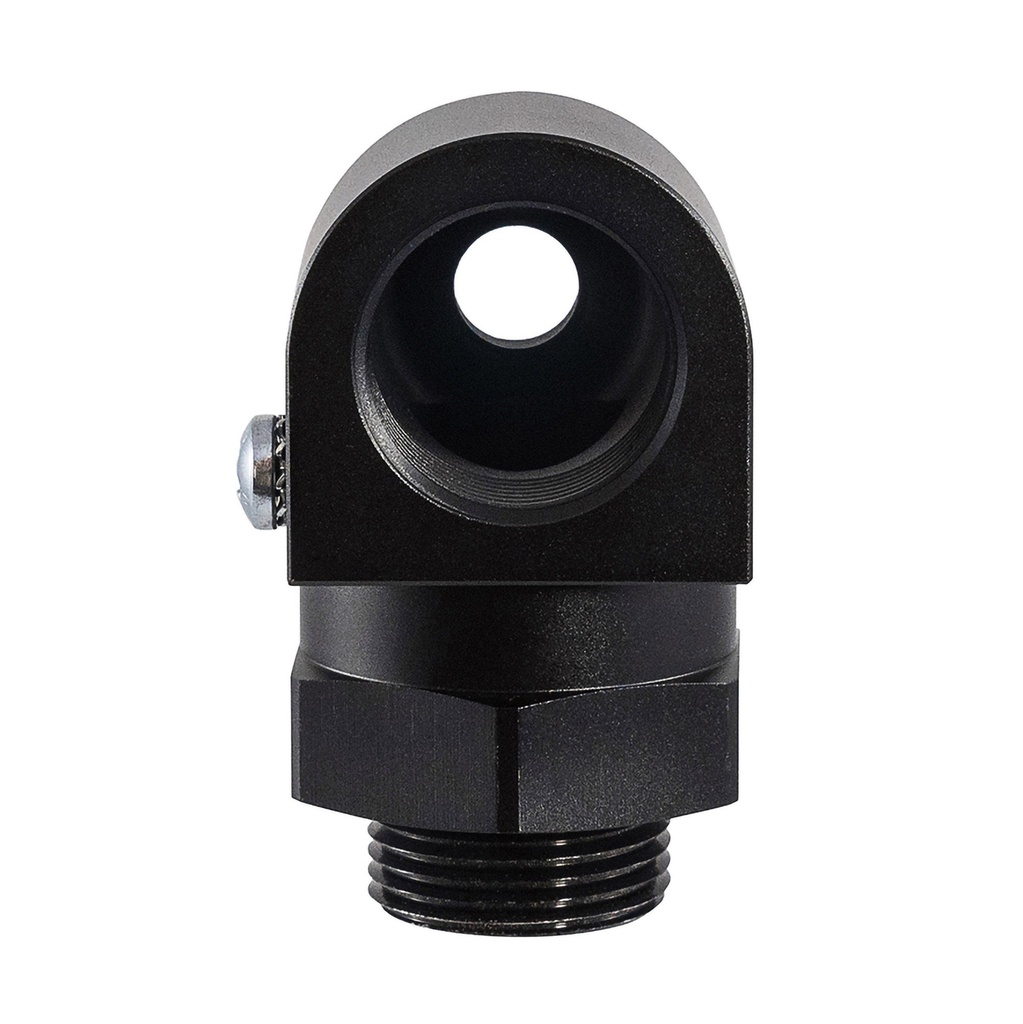

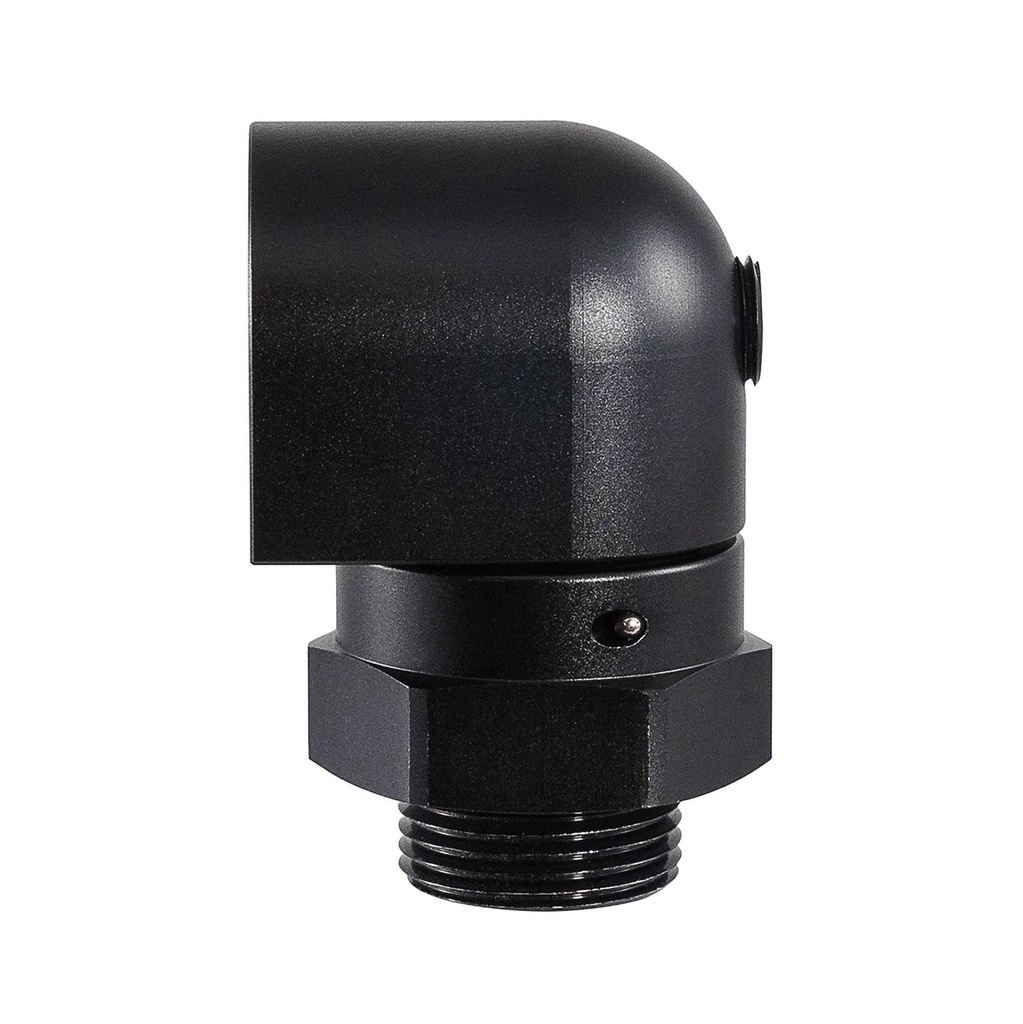

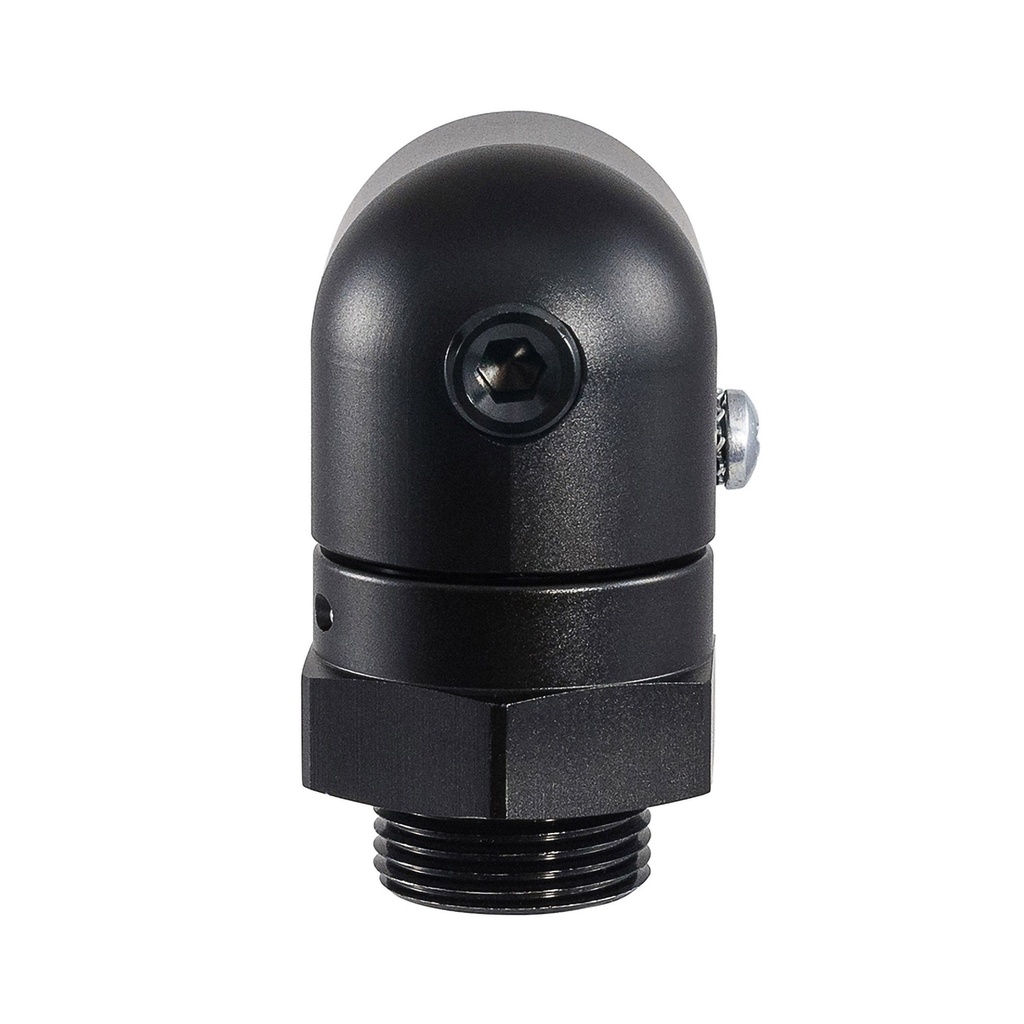

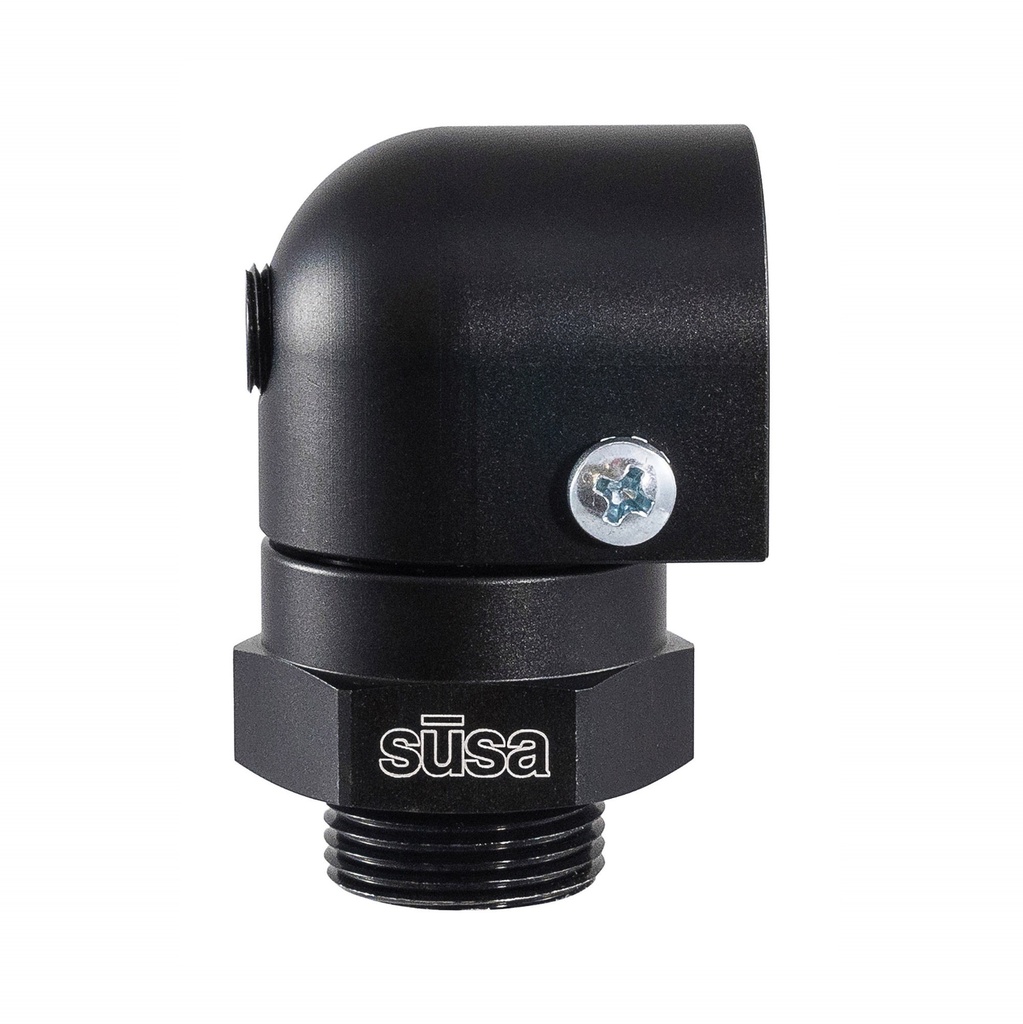

Designed to fit Setrab and Susa ProLine products with an M22 x 1.5 port these adapters provide a compact 90° solution for where space is limited. The adapter swivels through 360° so it is fully clockable to obtain the ideal orientation before tightening. The female port is also M22 x 1.5 and a range of adapters are available separately to satisfy any plumbing requirement. A 1/8" NPT female port is also features to allow a sender unit or switch to be added. A blanking plug is supplied for when the port is not required.
- Provides a compact 90° take off for Setrab and Susa ProLine products including Oil cooler, sandwich plates and remote filter heads
- Swivels through 360° to allow for optimum orientation

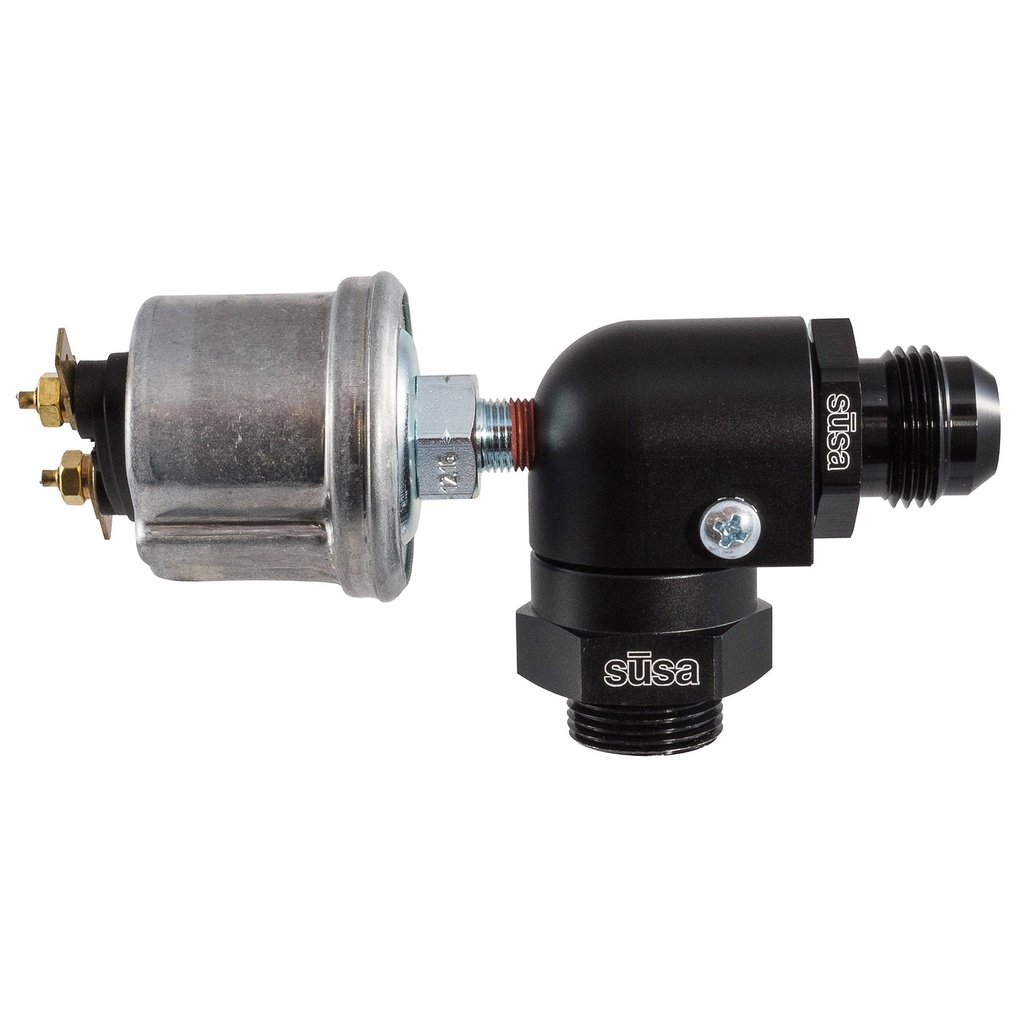

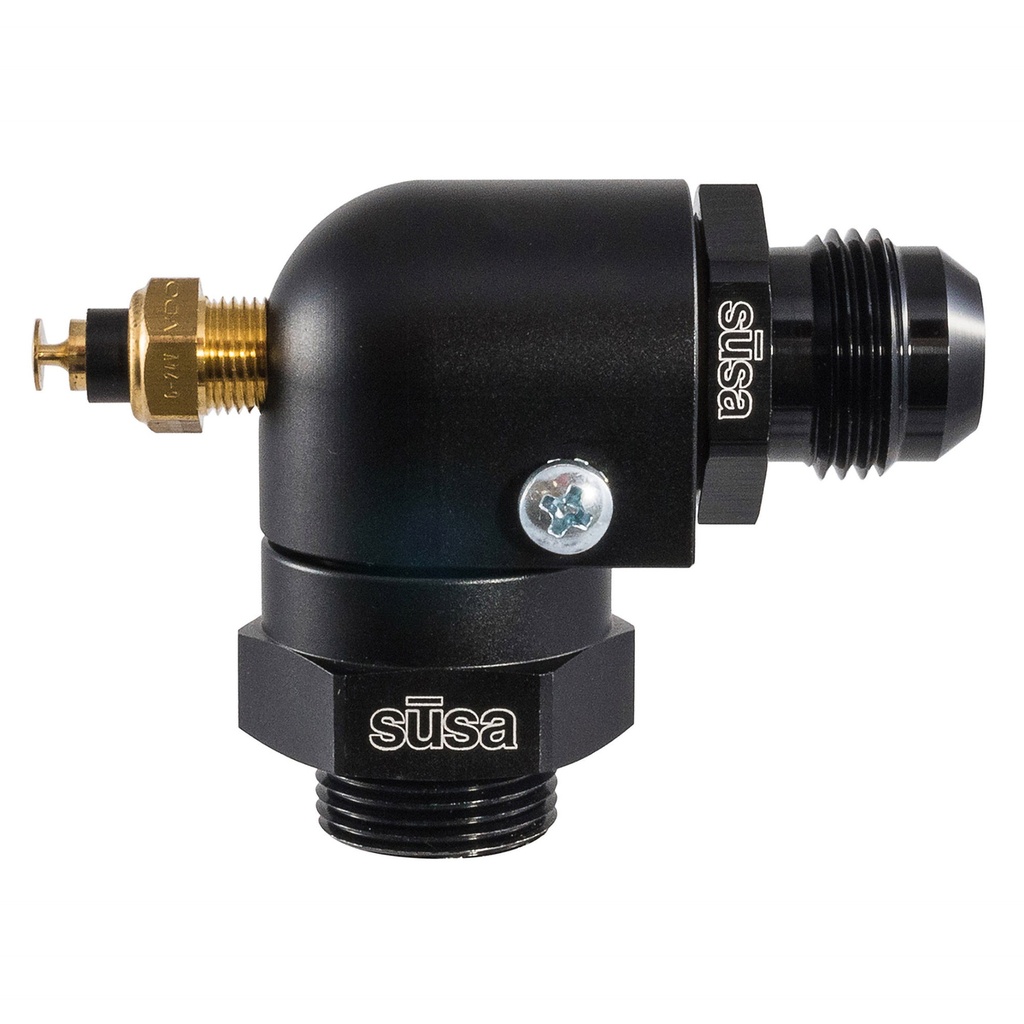

- 1/8" NPT take off port for adding sender units, switches or a small bore oil feed
- Provision to attach an earthing strap for single pole sender units
- Hard anodised aluminium for a professional finish with excellent corrosion resistance

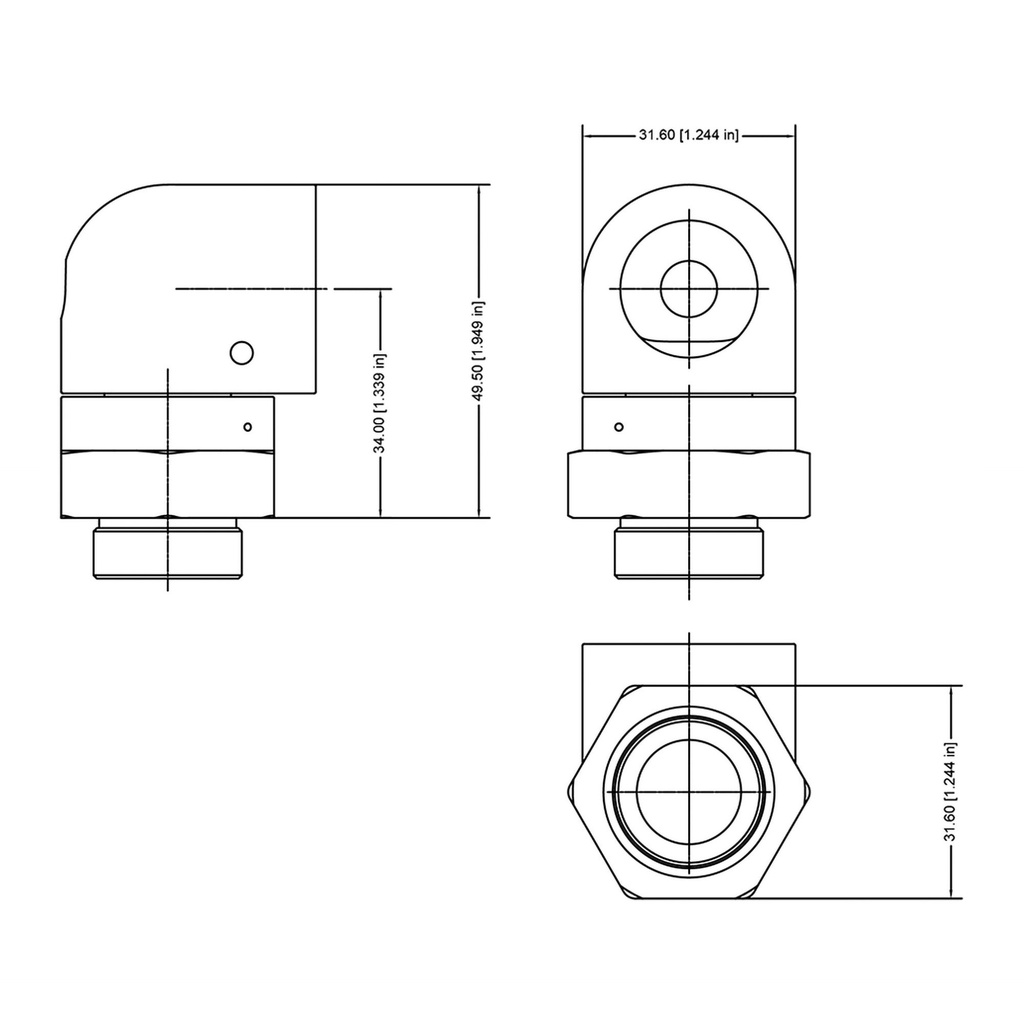

Dimensions: Height (excl male thread) 34mm, width 31.6mm, Male thread M22 x 1.5, female port M22 x 1.5, Take off port 1/8" NPT
