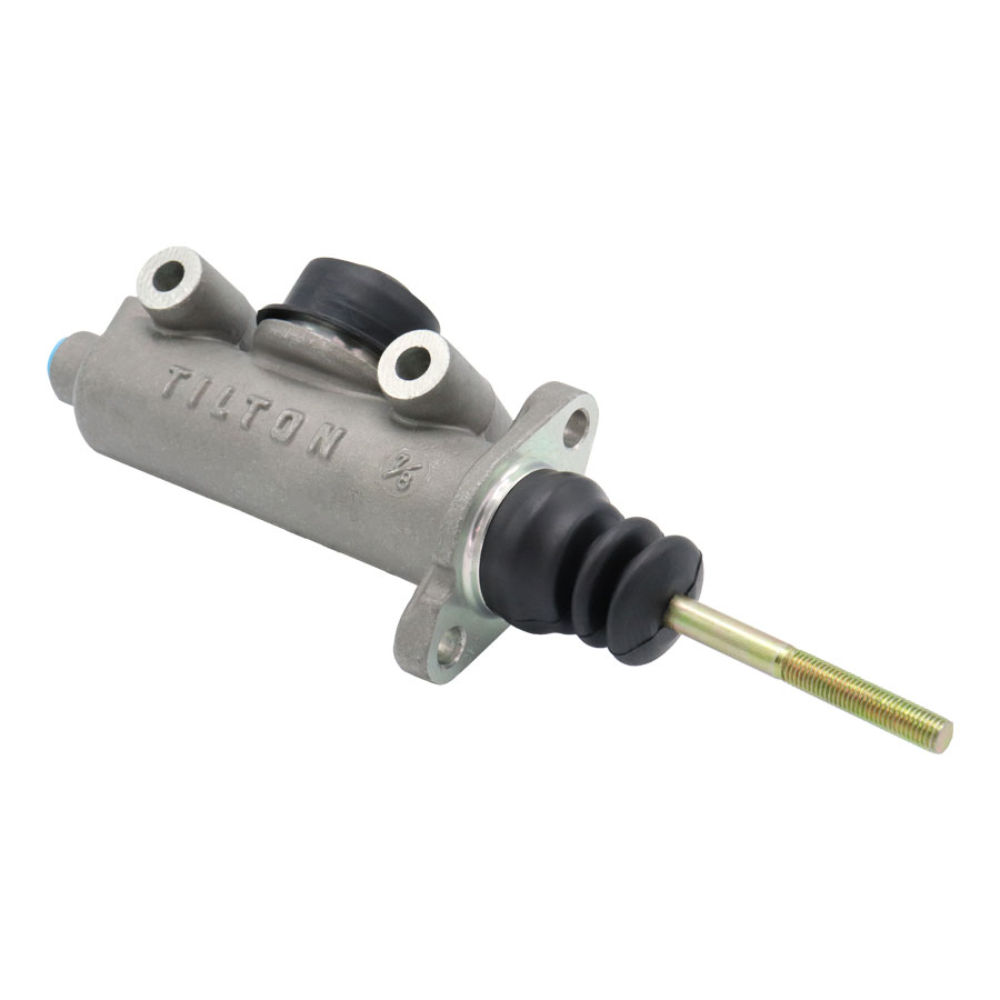

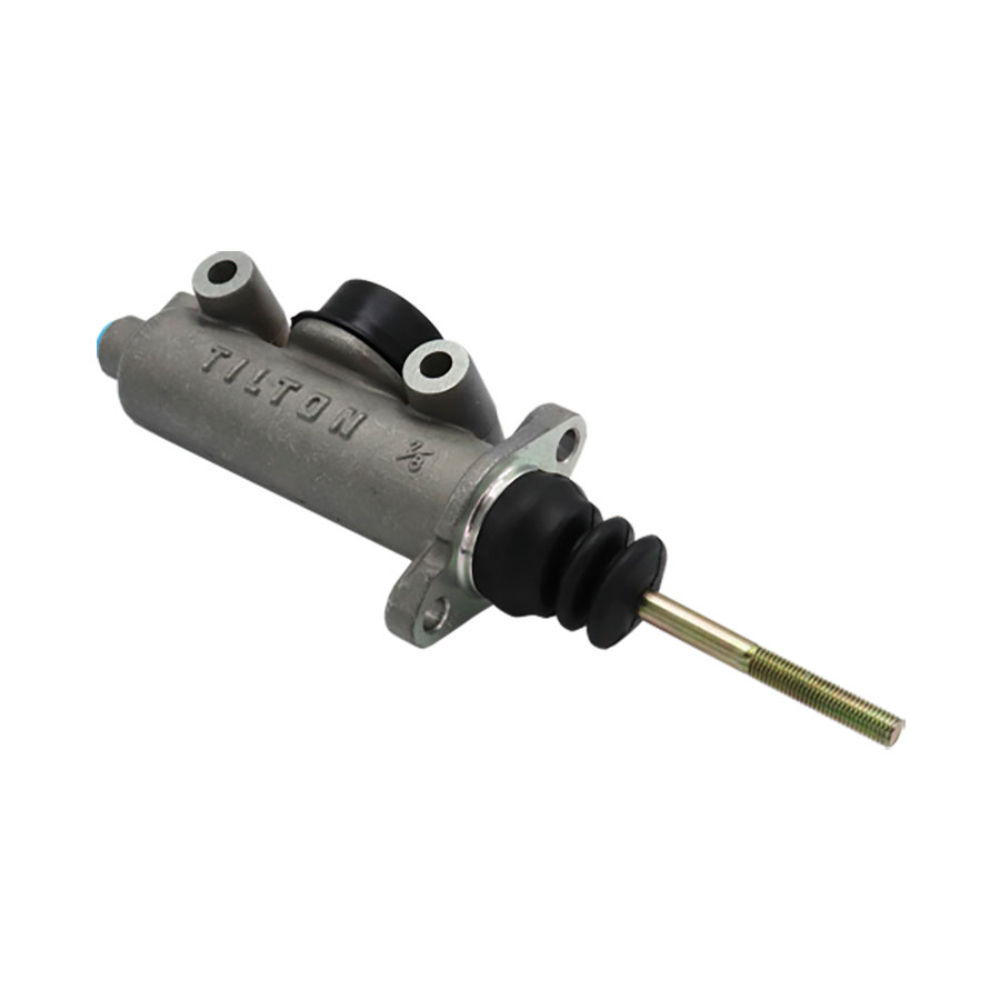

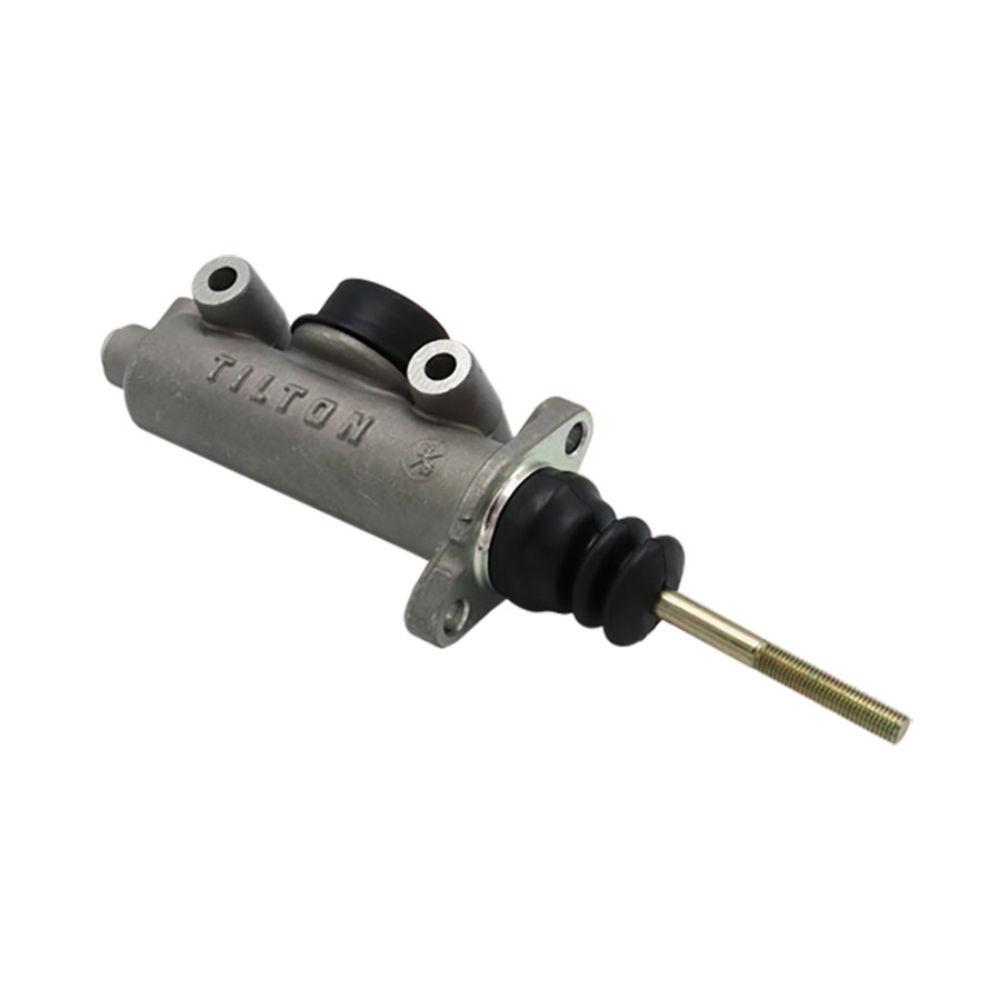

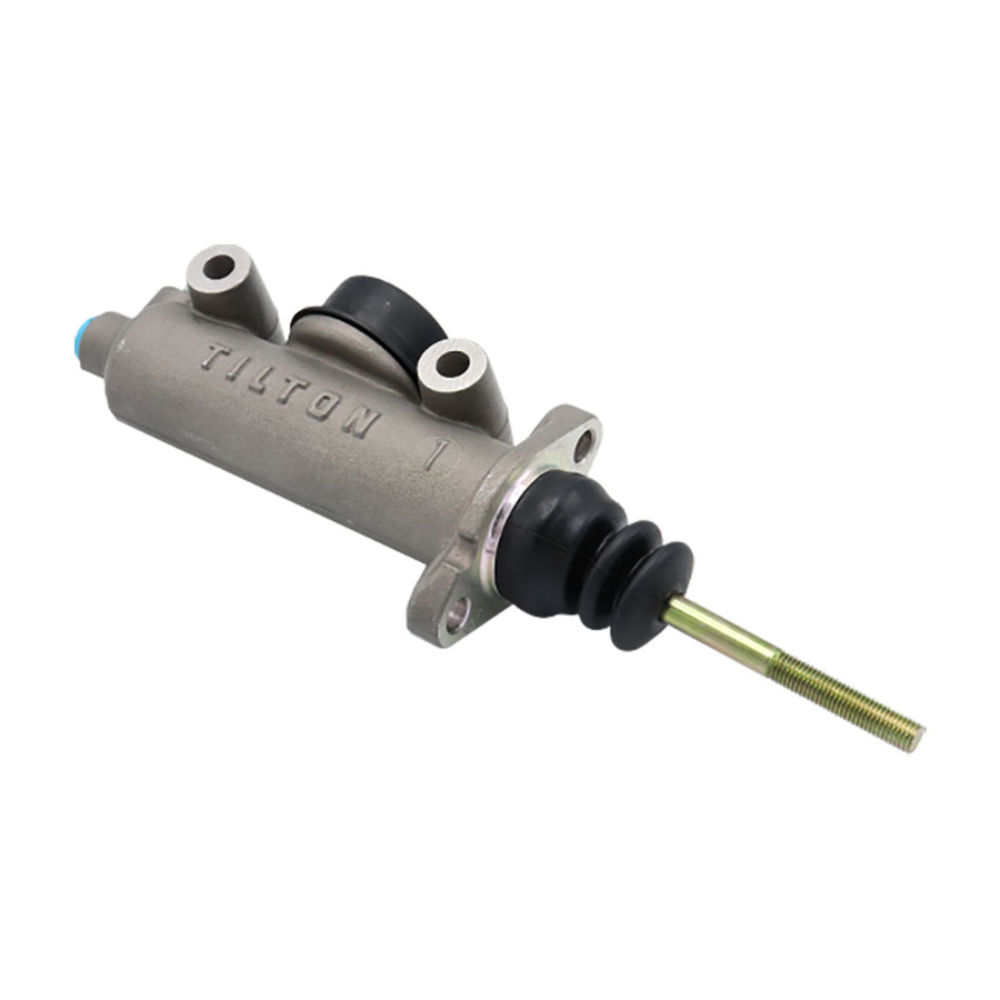

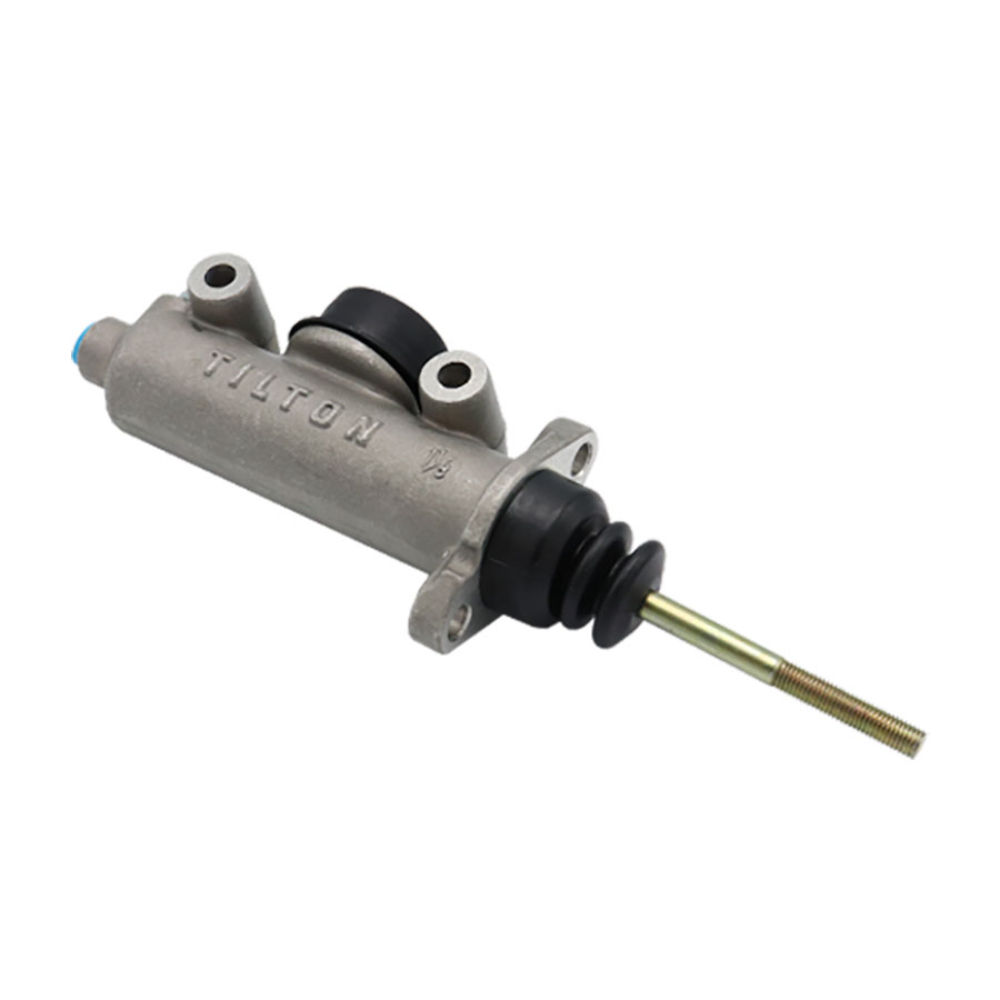

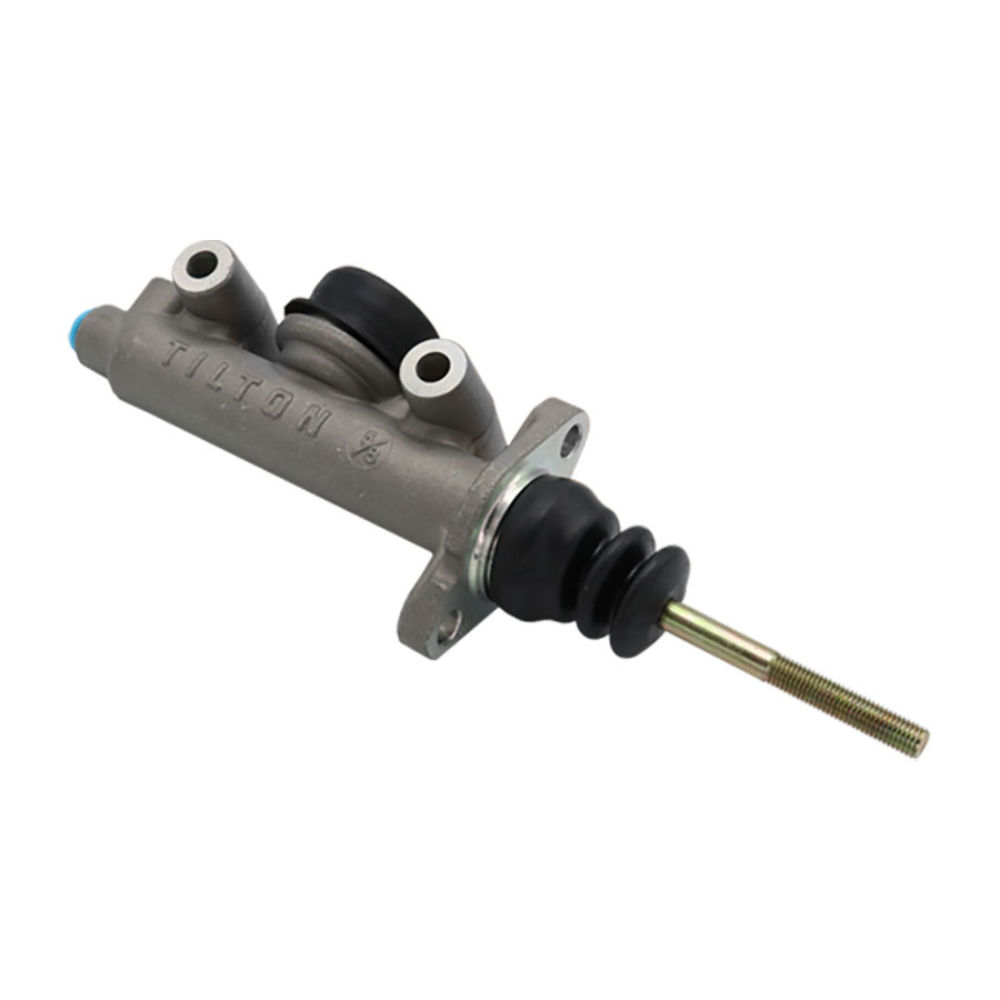

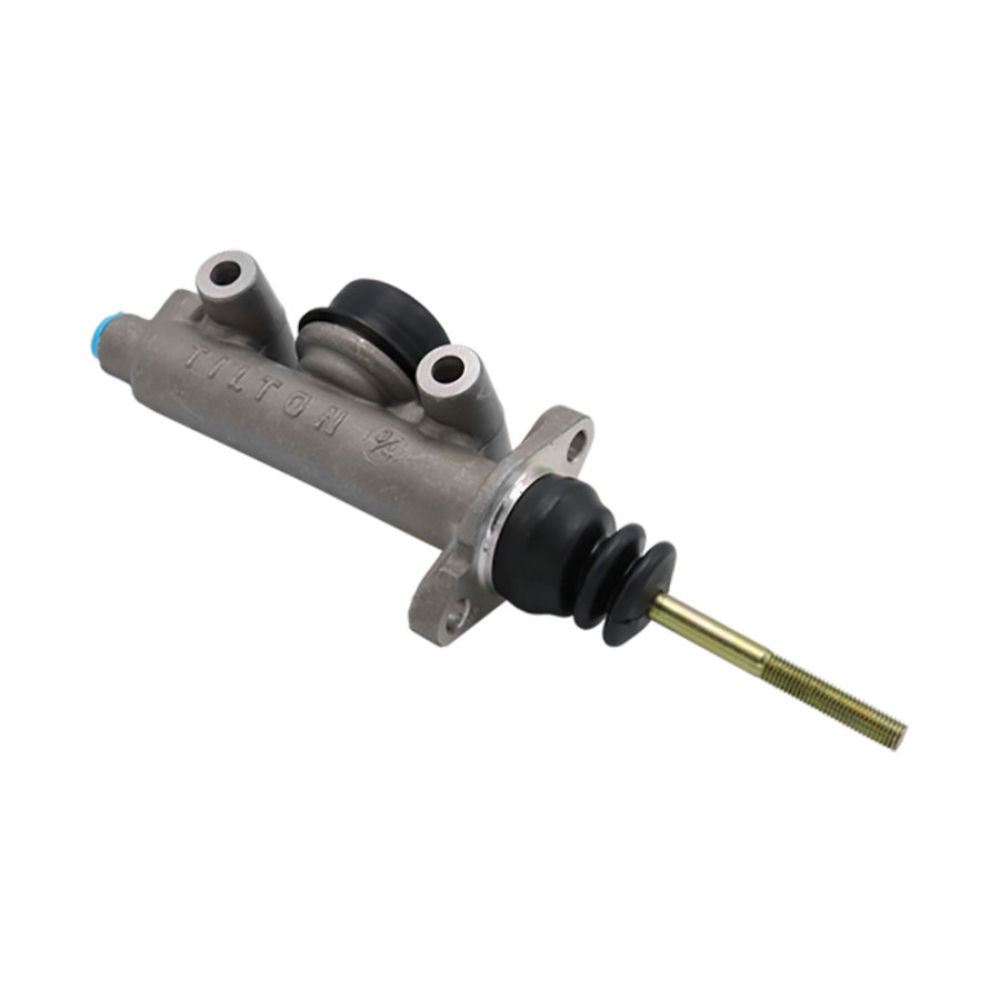

The 74 series universal master cylinder kits from Tilton are an ideal solution for brake or clutch actuation. The cylinder design allows for either flange or side mounting and dual 3/8" UNF outlets provide flexibility for brake line routing. The distance between the mounting holes on the flange is 2.25" (57mm).
- Ideal for brake or clutch use
- Comprehensive kit including direct and remote mount reservoir options
- Wide range of bore sizes to suit most applications

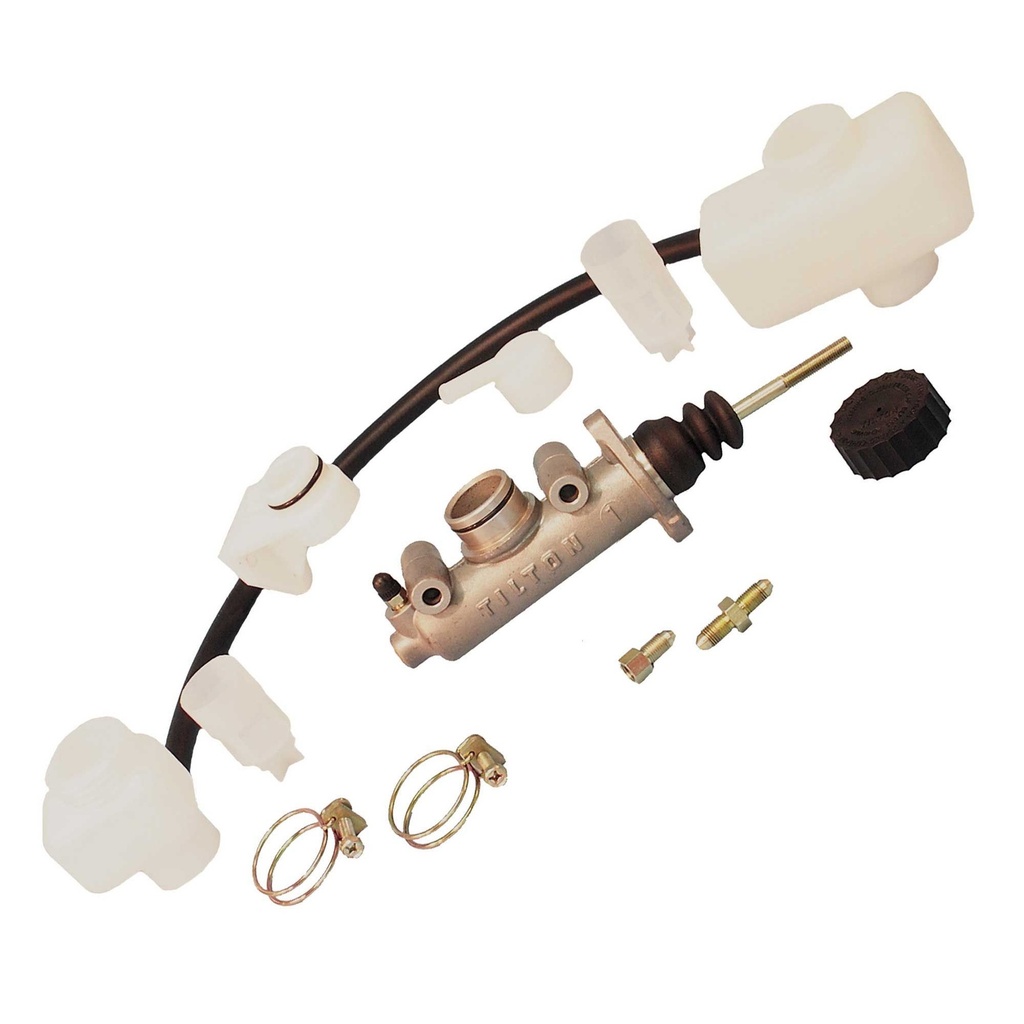

The Tilton 74 series master cylinder kit comprises of a master cylinder, small fluid reservoir, large fluid reservoir and a remote reservoir mounting kit. This gives the flexibility to either have the reservoir mounted to the cylinder or mounted remotely.
Cylinders are available in a range of bore sizes to suit most applications. The pushrod thread is 5/16 UNF and protrudes 4.28" (108.7mm) from the mounting flange.
Inlet Port - Accepts included clamp on reservoir or included adaptor for remote reservoir
Outlet Ports - Both outlet ports (one on top and one on the end of the cylinder) feature a 3/8" UNF (-3 AN) thread. Includes a 3/8" UNF (-3 AN) male to male adaptor.
Specifications
| Bore Size | .700 (7/10 Inch), .625 (5/8 Inch), .750 (3/4 Inch), .875 (7/8 Inch), 1.0 Inch, .812 (13/16 Inch), 1.012 (1 1/8 Inch) |
| Brand | Tilton |
