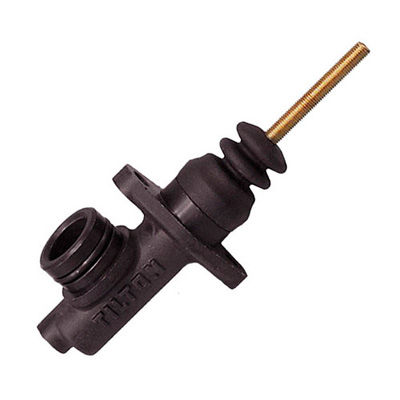

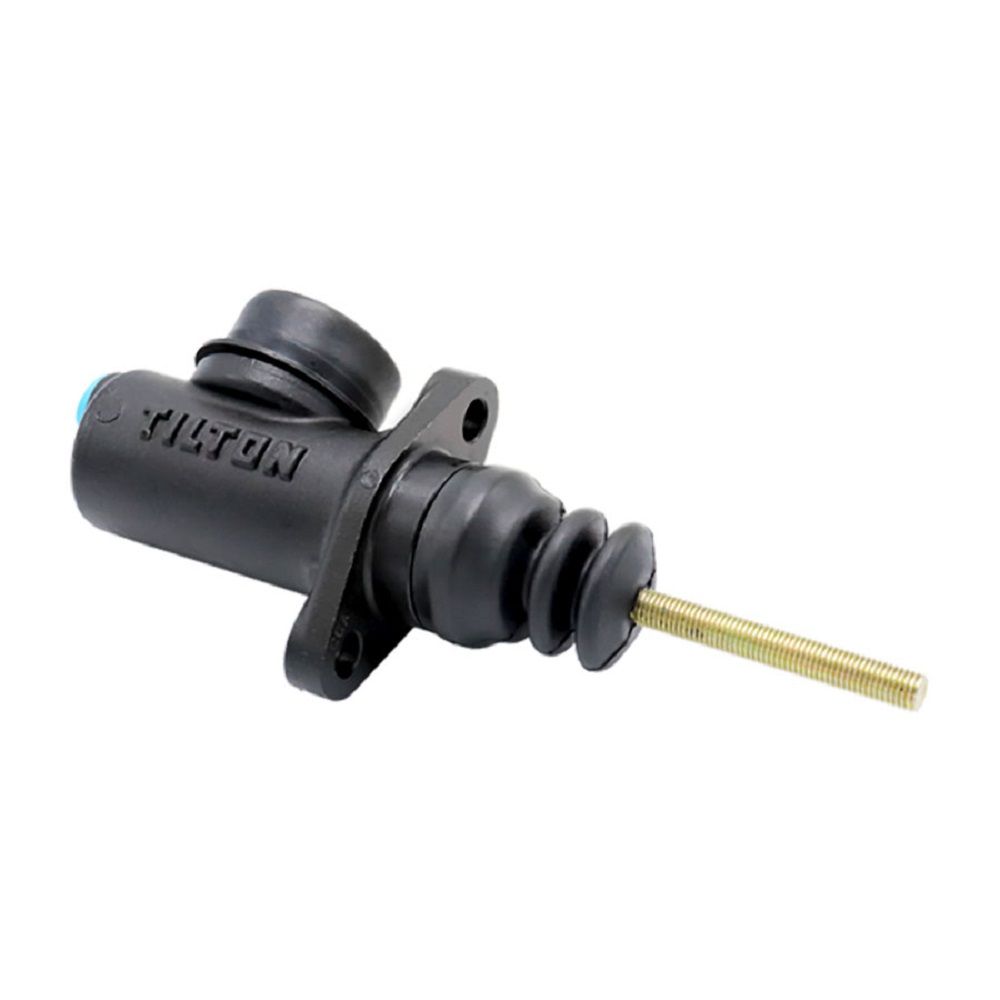

The 75 series range of alloy master cylinder kits from Tilton are designed for brake and clutch use where space is limited. The short body still allows for a full 1.1 inch stroke to provide enough fluid displacement for most applications. The cylinder is flange mounted and the mounting hole spacing is 2.25" (57mm). The pushrod has a thread of 5/16 UNF and protrudes 4.3" (109.2mm) from the mounting flange.
- Ideal for brake or clutch use where space is limited
- Comprehensive kit including direct and remote mount reservoir options
- Wide range of bore sizes to suit most applications

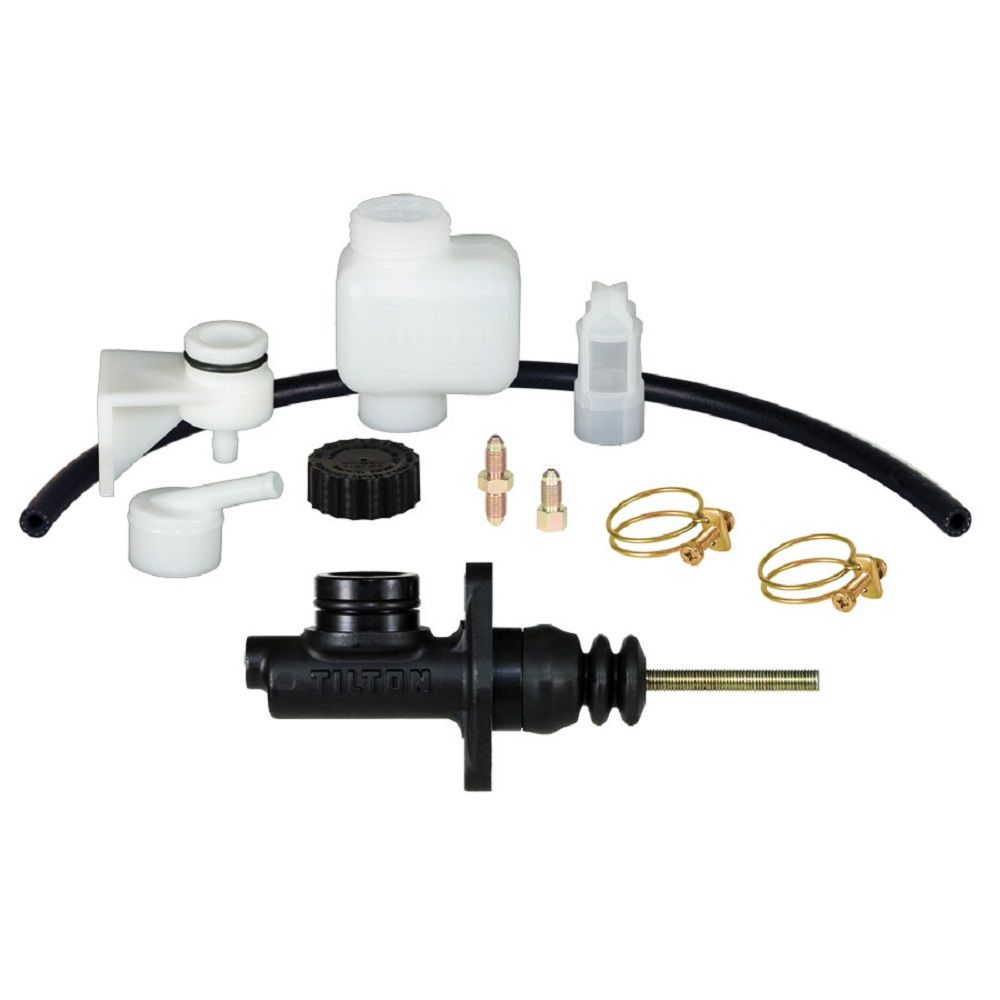

The Tilton 75 series master kit is supplied with 2 sizes of fluid reservoir and a remote mount kit which gives the flexibility of having the reservoir attached directly to the cylinder or mounted remotely. The 75 series master cylinders are available with a wide range of bore sizes to suit most applications.
Inlet Port - Accepts included clamp on reservoir or included adaptor for remote reservoir
Outlet Port - Located on the end of the cylinder, features a 3/8" UNF (-3 AN) thread. Includes a 3/8" UNF (-3 AN) male to male adaptor.
Specifications
| Bore Size | .700 (7/10 Inch), .625 (5/8 Inch), .750 (3/4 Inch), .875 (7/8 Inch), 1.0 Inch, .812 (13/16 Inch) |
| Brand | Tilton |
