The Dynapro from Wilwood is a new generation of compact and lightweight brake caliper which is an evolution of the extremely popular Dynalite range.
The Dynapro offers a sleek profile with high strength and is manufactured using stress flow forged premium grade billet. This process gives the body higher strength when compared to one machined from straight billet. The result is a caliper which provides a firm and responsive brake pedal with excellent stopping power.
Dynapro 4 piston calipers are available to suit a range of rotor thicknesses and have different piston size options.

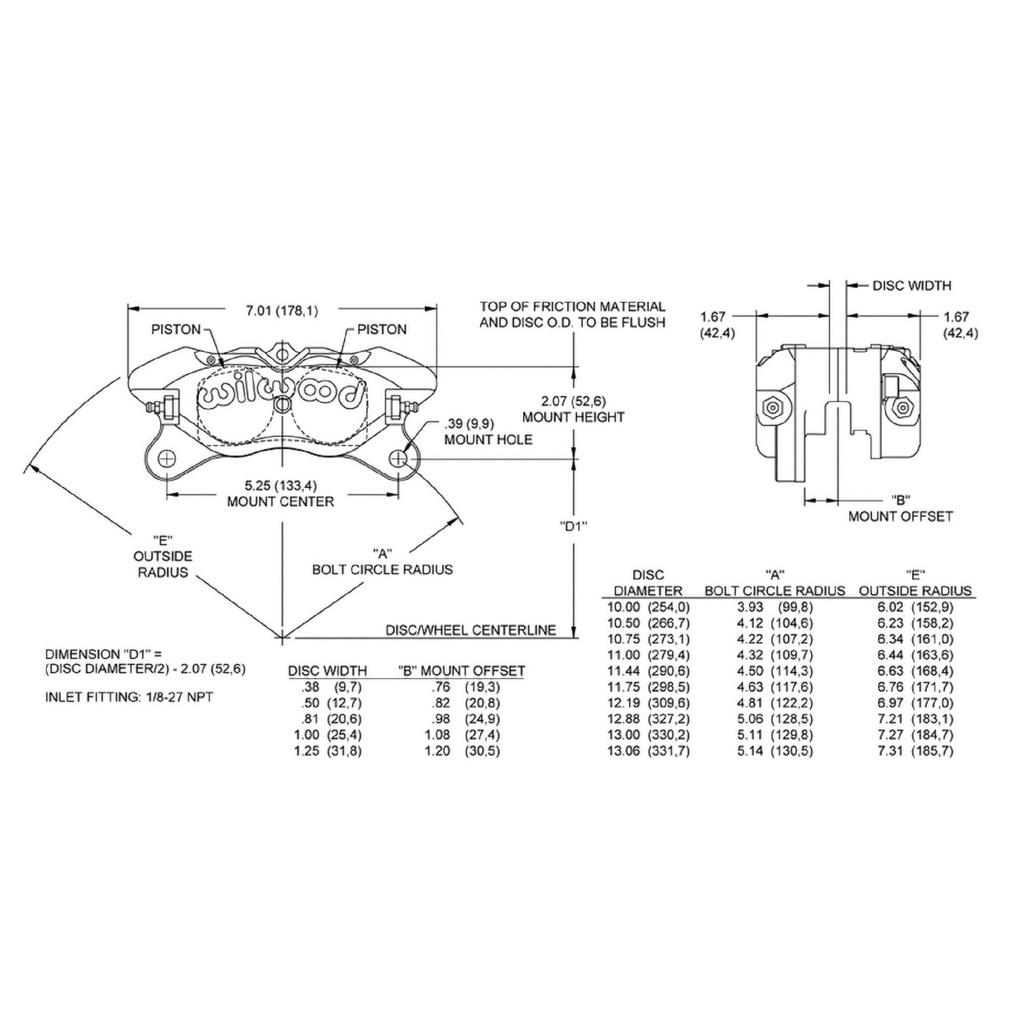

SPECIFICATION
Suitable Rotor Size - 10"-13" (254-300mm)
Number of Pistons - 4
Piston Material - Stainless Steel
Pad Area - 6.3"
Mounting Type - Lug
Inlet Port - 1/8" NPT
Mounting Centre - 5.25"
Weight - 3.8lb
The Wilwood Dynapro 4 piston caliper is suitable for use on rotor sizes 10"-13" (254-330mm)
Calipers are non-handed and sold individually.

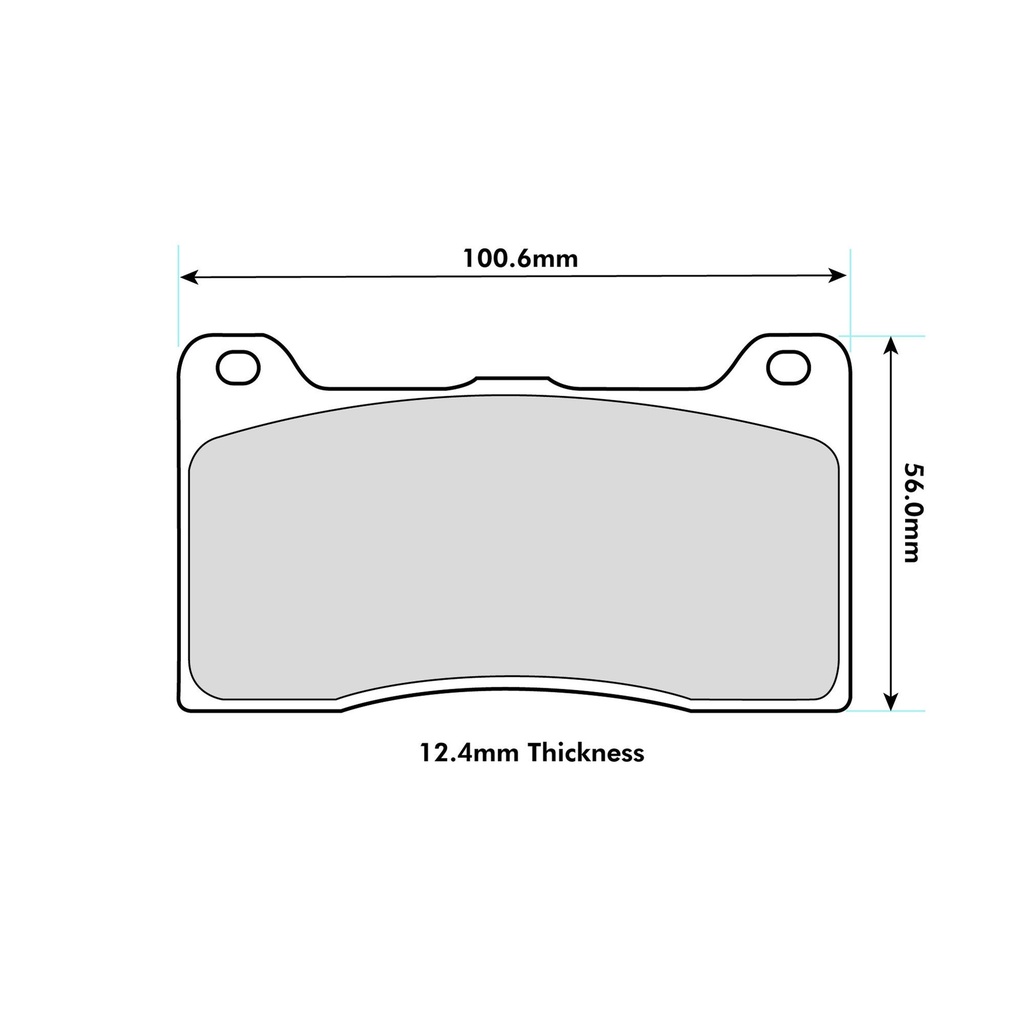

Please note: Brake pads are not included but are available to purchase from our Motorsport brake pad category.
Specifications
| Finish Type | Type III Anodised Grey, Powder Coated Black, Powder Coated Red, Anodised Black |
| Piston Diameter | 1.75 Inch (44.45mm), 1.38 Inch (35.05mm), 1 Inch (25.4mm) |
| Rotor Width | 0.81 Inch (20.57mm), 1.25 Inch (31.75mm), 0.38 Inch (9.6mm), 1.00 Inch (25.4mm) |
| Inlet | Standard Inlet, Side Inlet |
| Brand | Wilwood |
