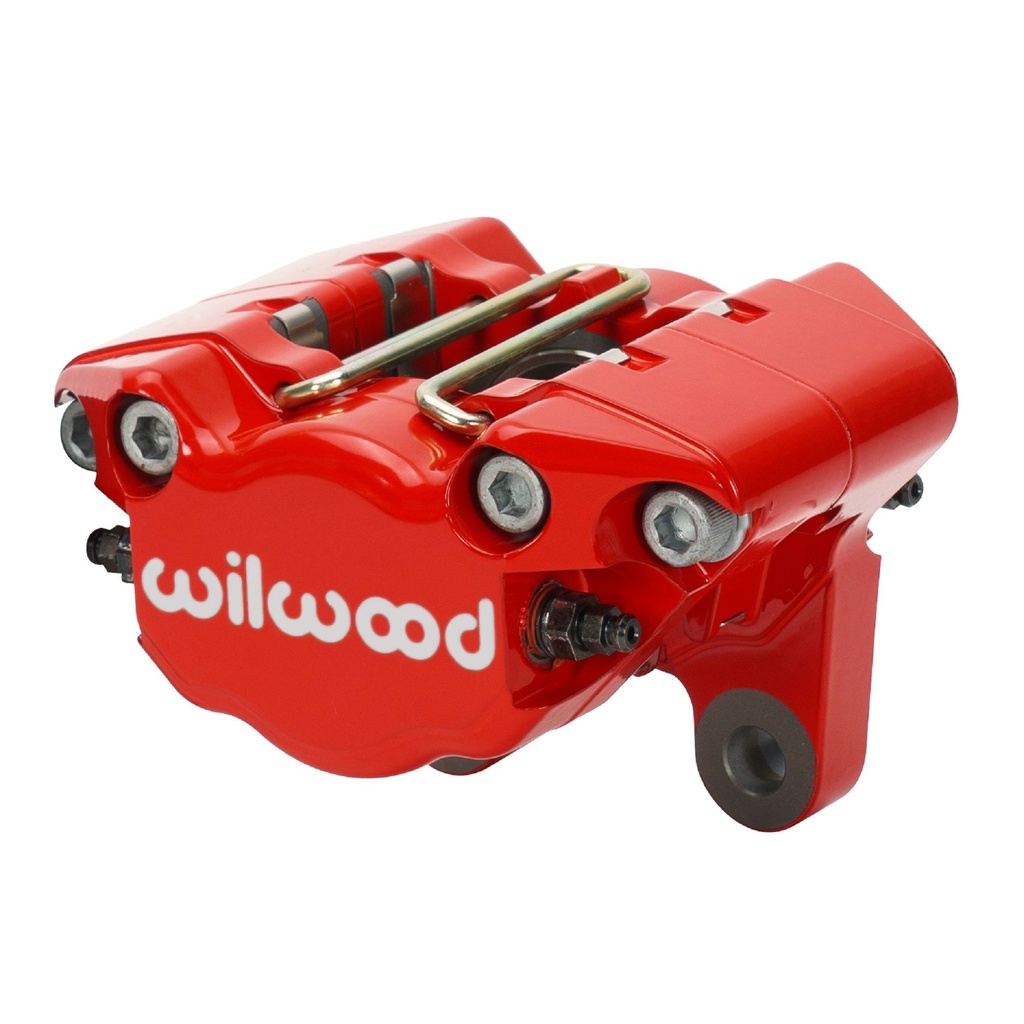

This Dynapro Single lightweight billet aluminium brake caliper from Wilwood has been designed as a direct replacement for the ATE 2 piston caliper found on Classic VW Beetle and also Karman Ghia models from 1967 to 1978. The Dynapro caliper provides an increased clamping force to improve braking performance and also reduces unsprung weight which aids handling.
- Direct replacement for VW Beetle and Karman Ghia from 1967 to 1978 (Models fitted with OEM ATE 2 piston calipers only)
- Improves braking performance and reduces weight
- Choice of pad compounds (pads sold separately)
- Stainless steel pistons and anodised or powder coated body for excellent corrosion resistance

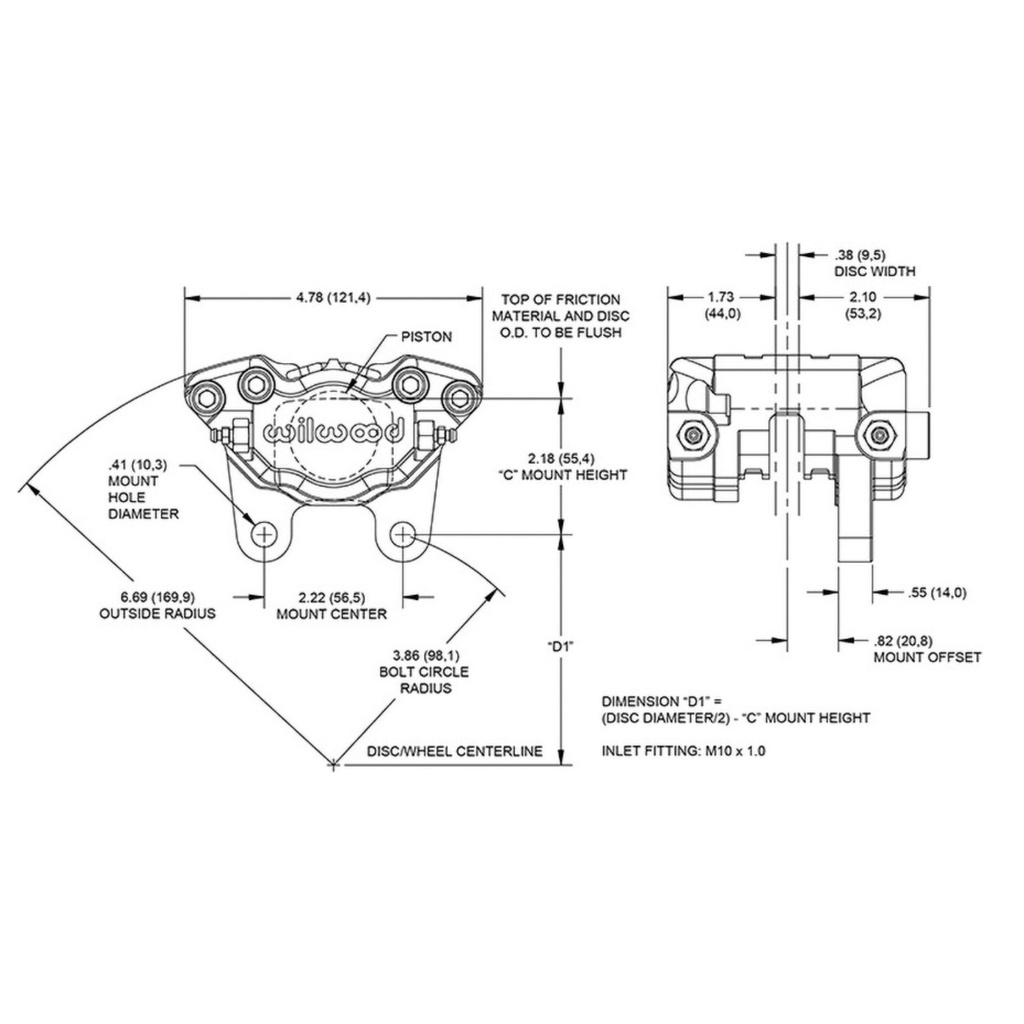

Dynapro Single Caliper Specification
Suitable rotor diameter: 6.0" to 13.0" (152-330mm)
Suitable rotor width: 0.25" to 0.38" (6.35-9.65mm)
Number of pistons: 2
Piston material: Stainless steel
Piston area: 2.06" (52.3mm)
Mounting type: Non-handed lug mount, 2.22" (56mm) hole spacing.
Inlet port thread: M10 x 1.0
A wide range of brake pad brands and compounds are available to suit this brake caliper, see our Motorsport brake pads category.
Calipers are non-handed and sold individually.
Specifications

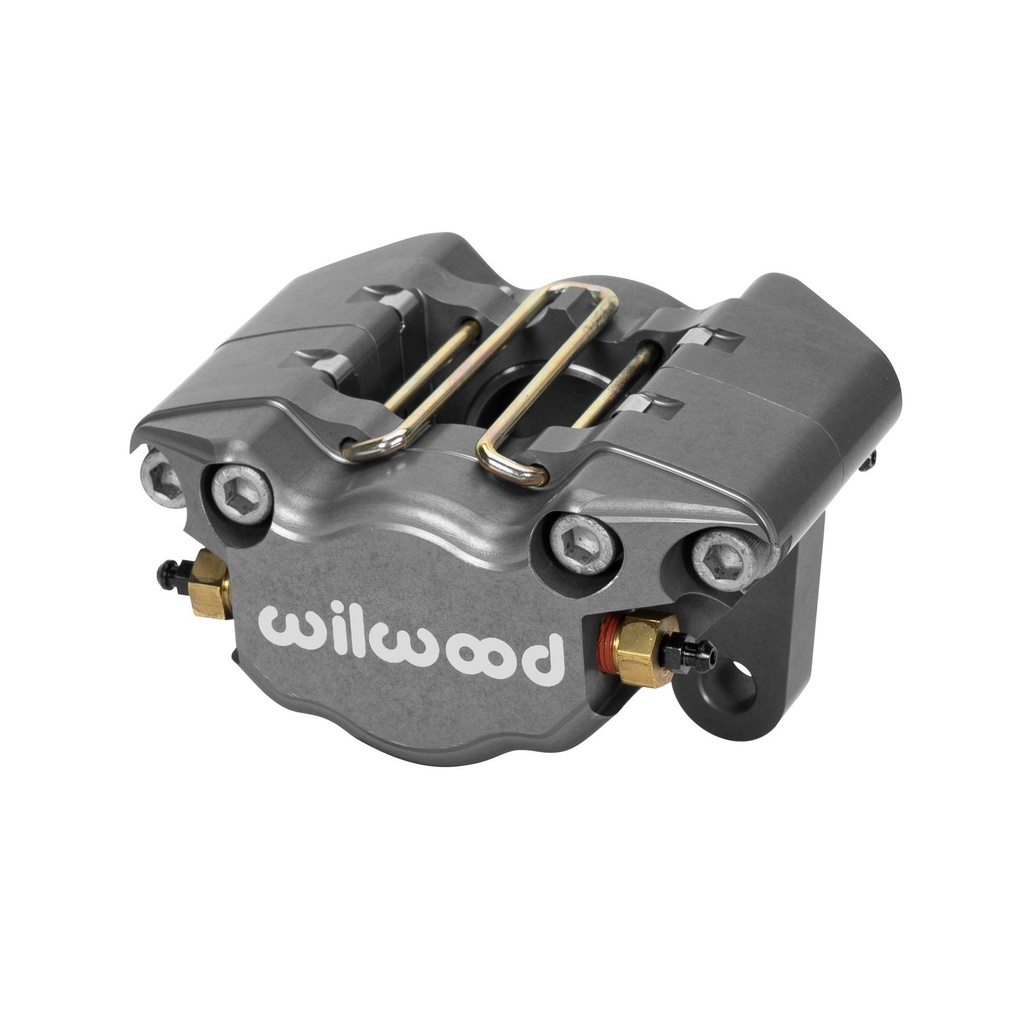

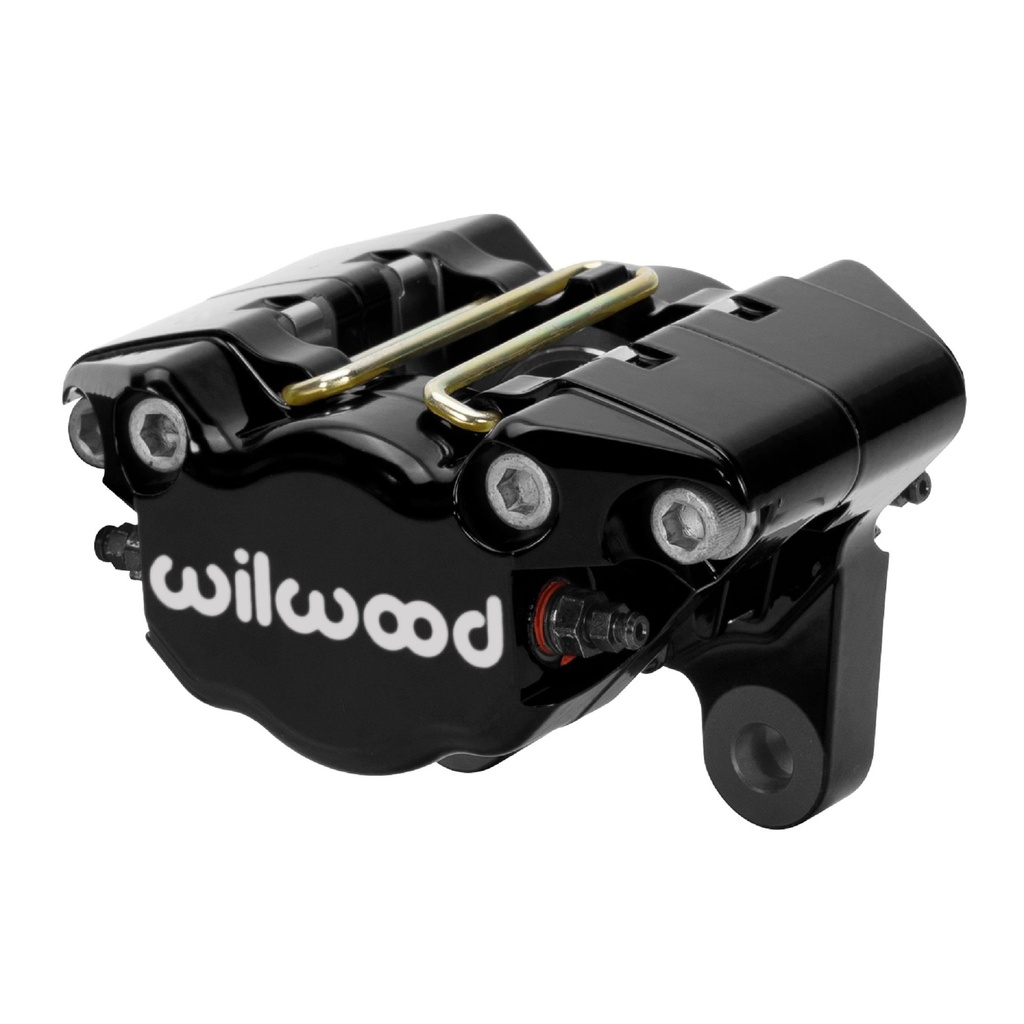

| Finish Type | Type III Anodised Grey, Powder Coated Black, Powder Coated Red |
| Brand | Wilwood |
