These reservoirs are designed for brake / clutch fluid and are machined from billet aluminium with a finned body design. They are available with a choice of outlet threads, 11/16" to screw directly into some models of Wilwood master cylinder or AN -3 JIC (3/8" UNF) for remote mounting. All options include a screw cap and internal rubber bellows seal.
- Compact design ideal for where space is limited
- Billet aluminium construction with ribbed body design
- Choice of outlet threads
- Screw cap with internal rubber bellows seal
Available in 2 finish options:

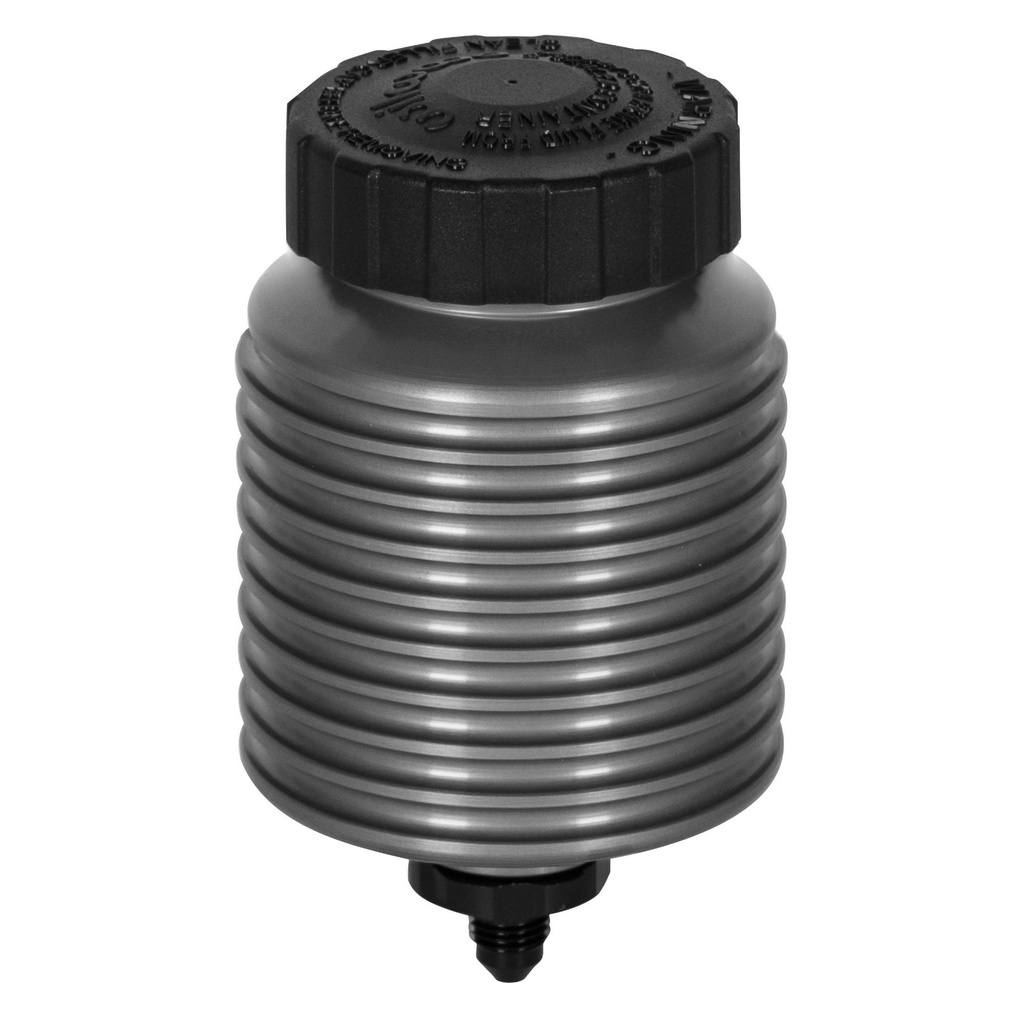

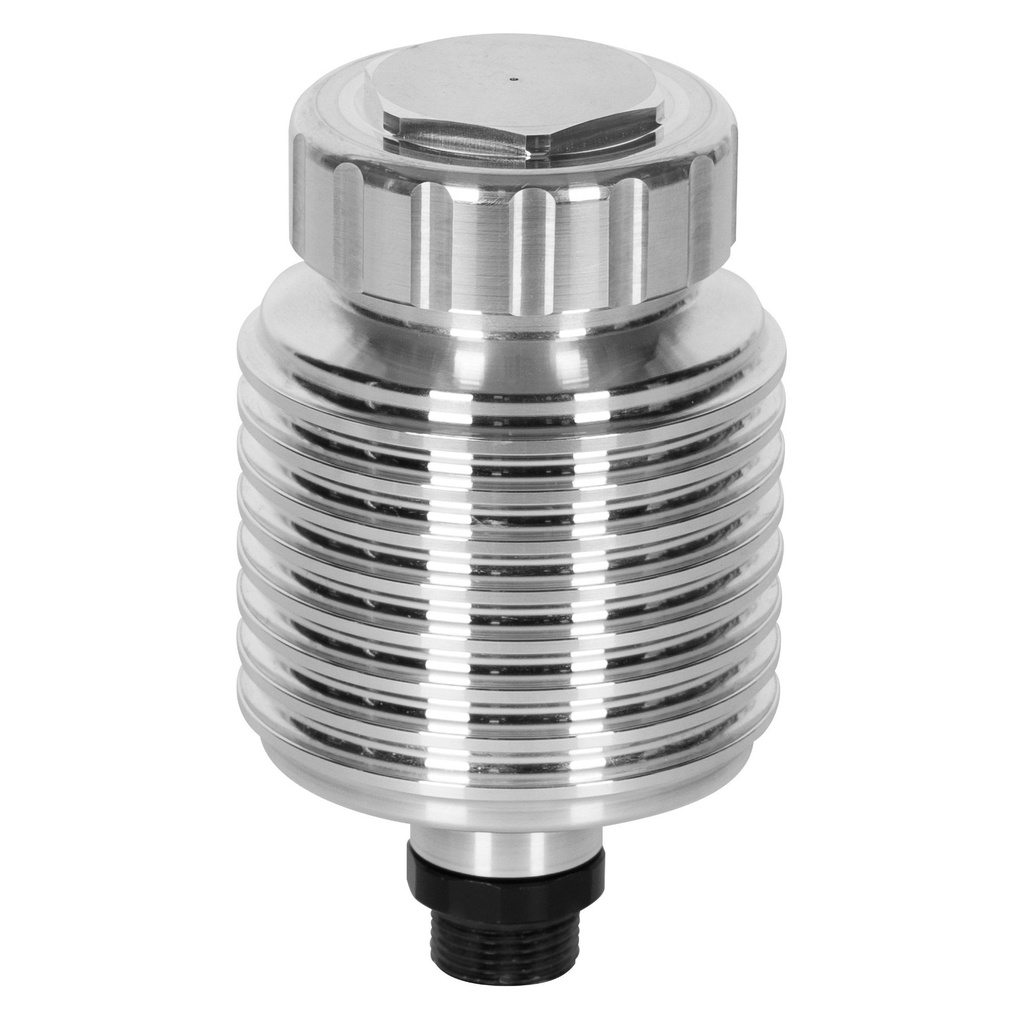

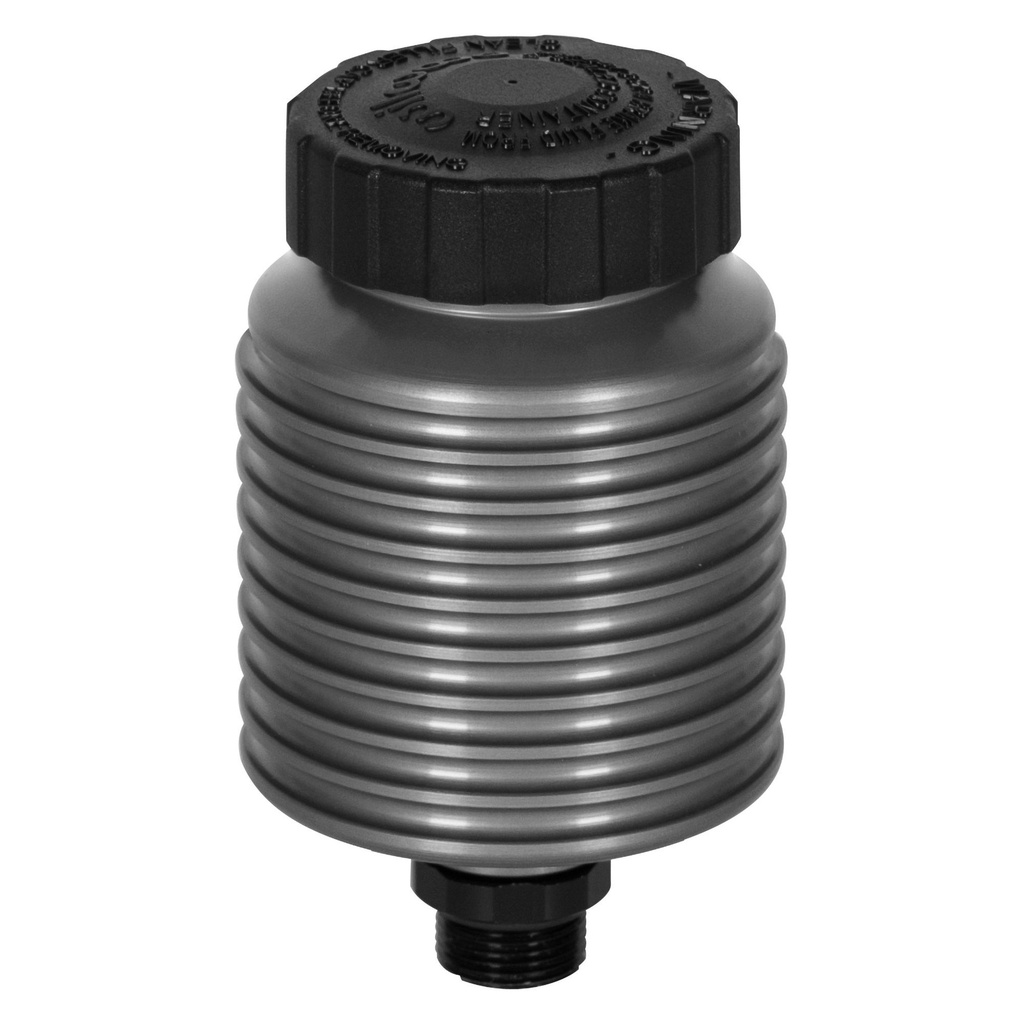

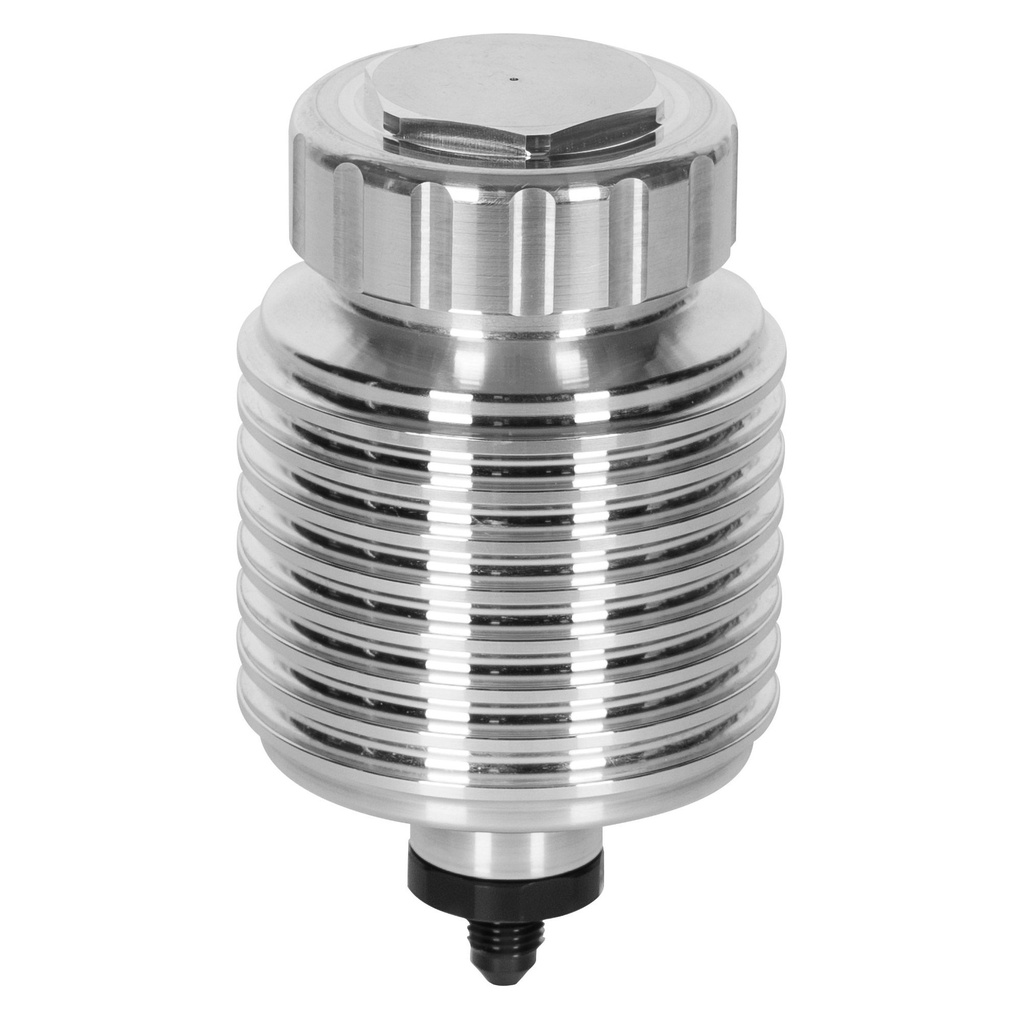

Aluminium finish with matching screw cap or Type III anodised titanium grey with plastic cap.
Dimensions: 2.45" (62mm) diameter x 4.27" (109mm) height (11/16" outlet) / 4.38" (111mm) height (3/8" outlet).
Fluid capacity: 4oz (7.2 cu in)
Specifications
| Colour | Aluminium, Titanium Anodised |
| Thread | -3 JIC (3/8 x 24), 11/16 Inch-20 |
| Brand | Wilwood |
