The Wilwood short compact remote master cylinders have been designed for applications where space is limited but the output capacity of a full size cylinder is required. The body is just 3.36" (85mm) long yet the stroke is 1.12" (28mm) which meets or exceeds most full size cylinders.
- Short body is ideal for where space is restricted
- 1.12" (28mm) stroke meets or exceeds standard size cylinders
- Options to mount reservoir directly to the cylinder or have it remotely mounted
- Fully rebuild-able with rebuild kits available to purchase separately
- Black E-coated body for corrosion resistance and long lasting great looks

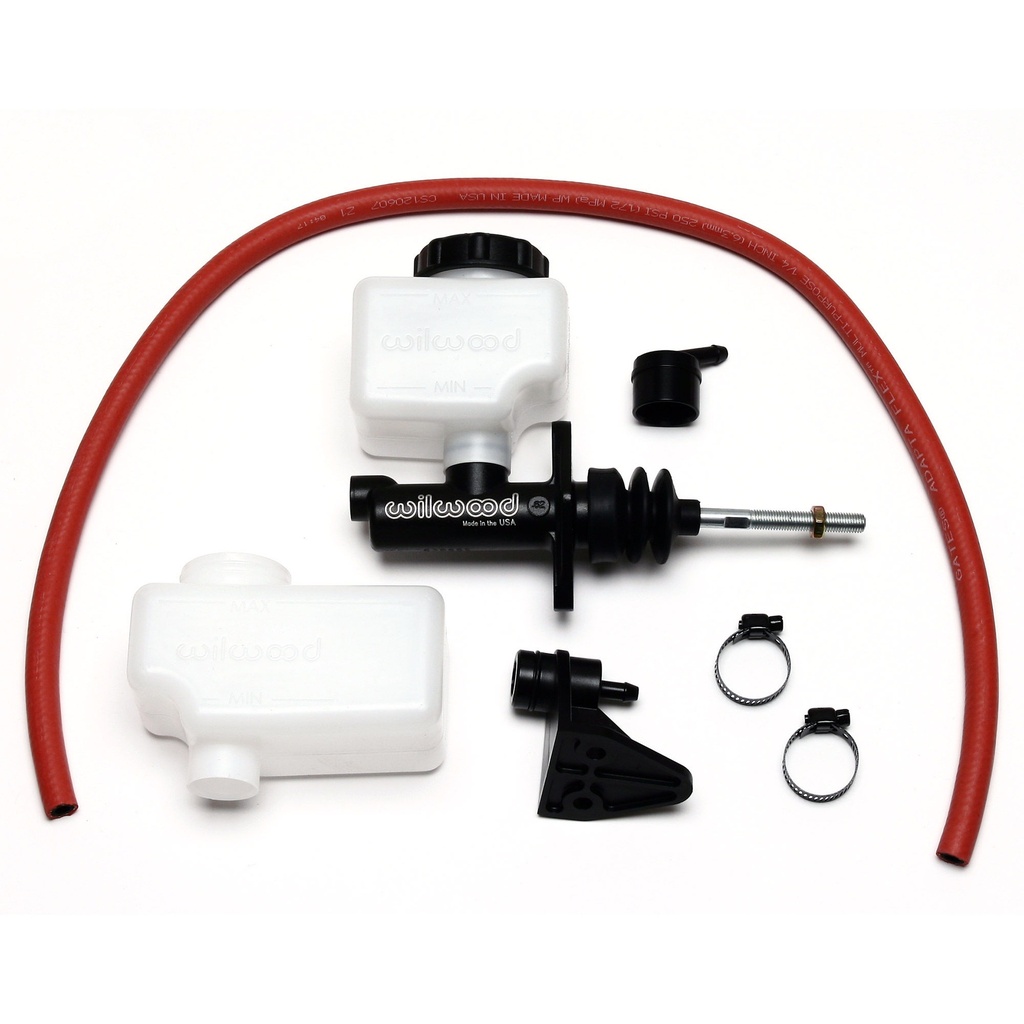

As well as the cylinder the kit includes 2 different sizes of reservoir which can be either mounted directly to the cylinder or remotely. A mounting bracket, feed hose, fittings and clips are included for remote mounting.

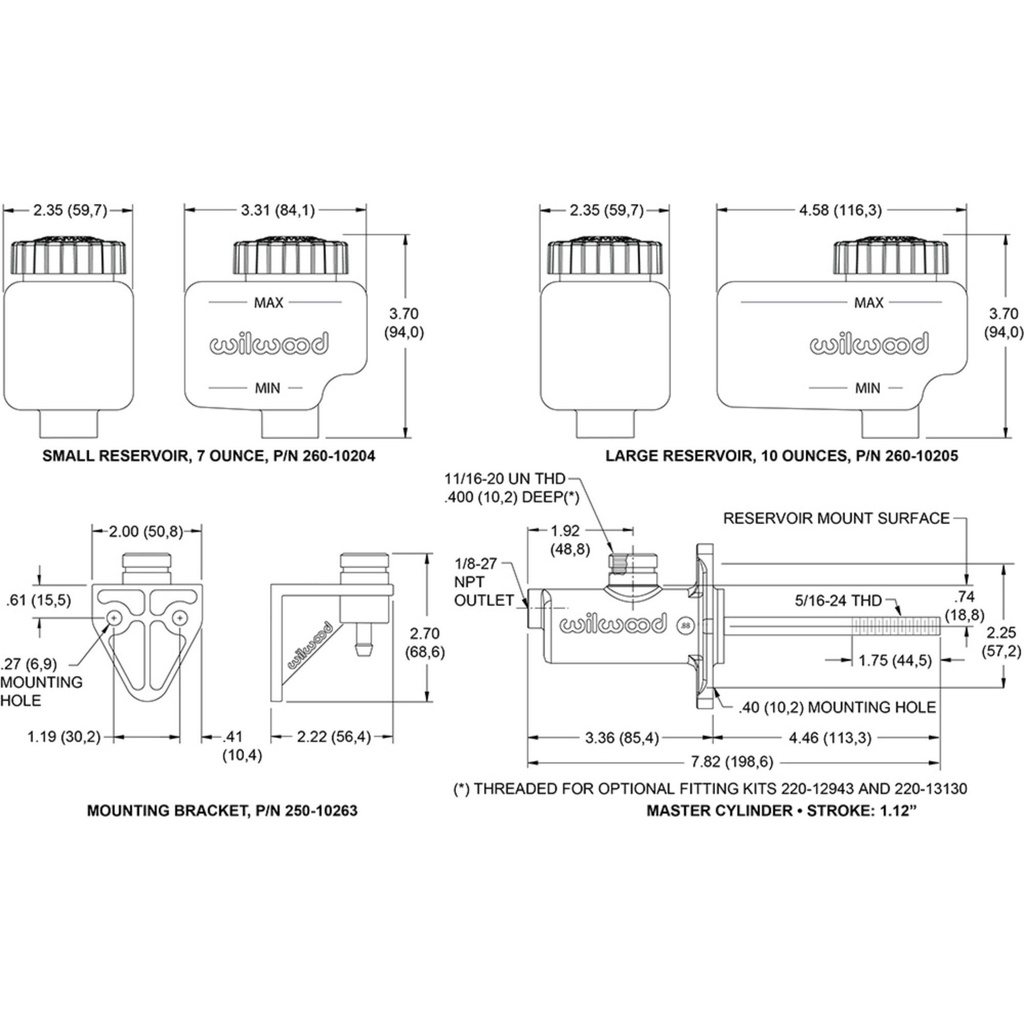

Dimensions:
Body length: 3.36" (85mm). Total length (inc pushrod): 7.82" (199mm)
Fluid outlet: 1/8" NPT female
Pushrod thread: 5/16" UNF
Mounting flange: Vertical with 2.25" (57mm) hole centres
Specifications
| Bore Size | .625 (5/8 Inch), .750 (3/4 Inch), .875 (7/8 Inch), .812 (13/16 Inch), 1 Inch, 1.012 (1 1/8 Inch), .937 (15/16 Inch) |
| Brand | Wilwood |
