The AIM Solo2 DL / SmartyCam 4 Corsa Camera Track Day Kit gives you an all-in-one solution for recording lap, vehicle and video data during track days and competitive testing, helping you identify where lap times can be improved. The Solo 2 DL data logging lap timer works with the SmartyCam 4 Corsa onboard camera to record lap timing, ECU data, vehicle position, speed, acceleration forces and full HD video for detailed analysis.
Read through the key features and benefits of the kit to see how its data logging, video recording and mounting systems work:

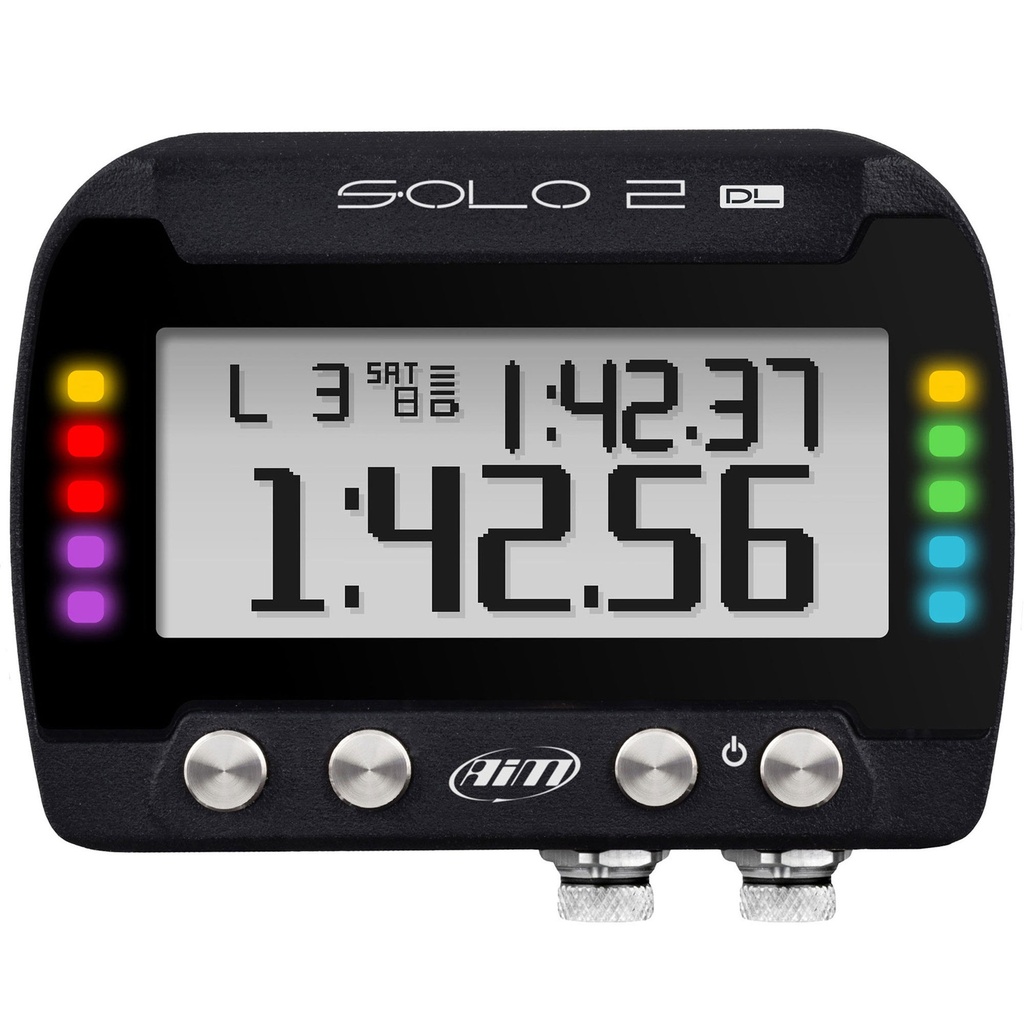

- Solo 2 DL Data Logging Lap Timer: The Solo 2 DL calculates, displays and records lap times, lap count, sector times, delta times and predictive lap times, giving you detailed timing information during each session and useful data for reviewing your performance afterwards.

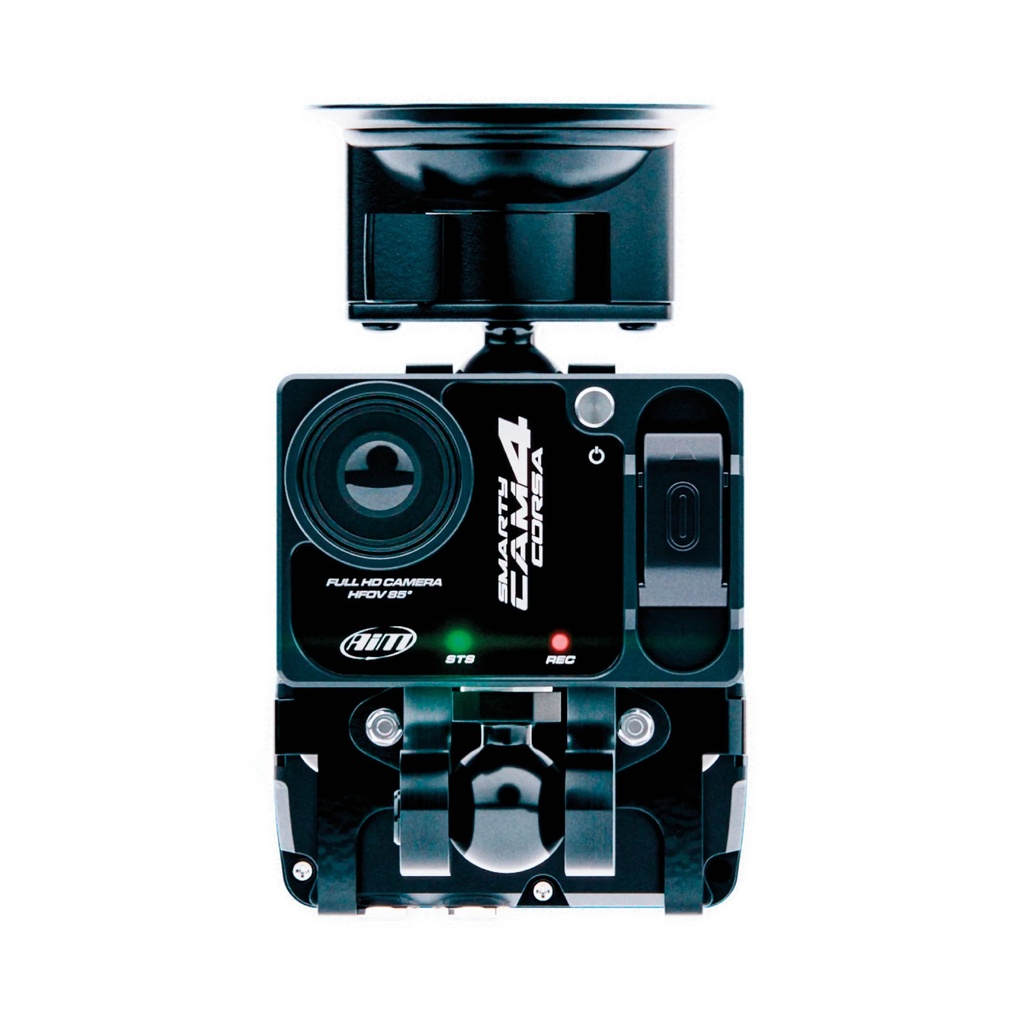

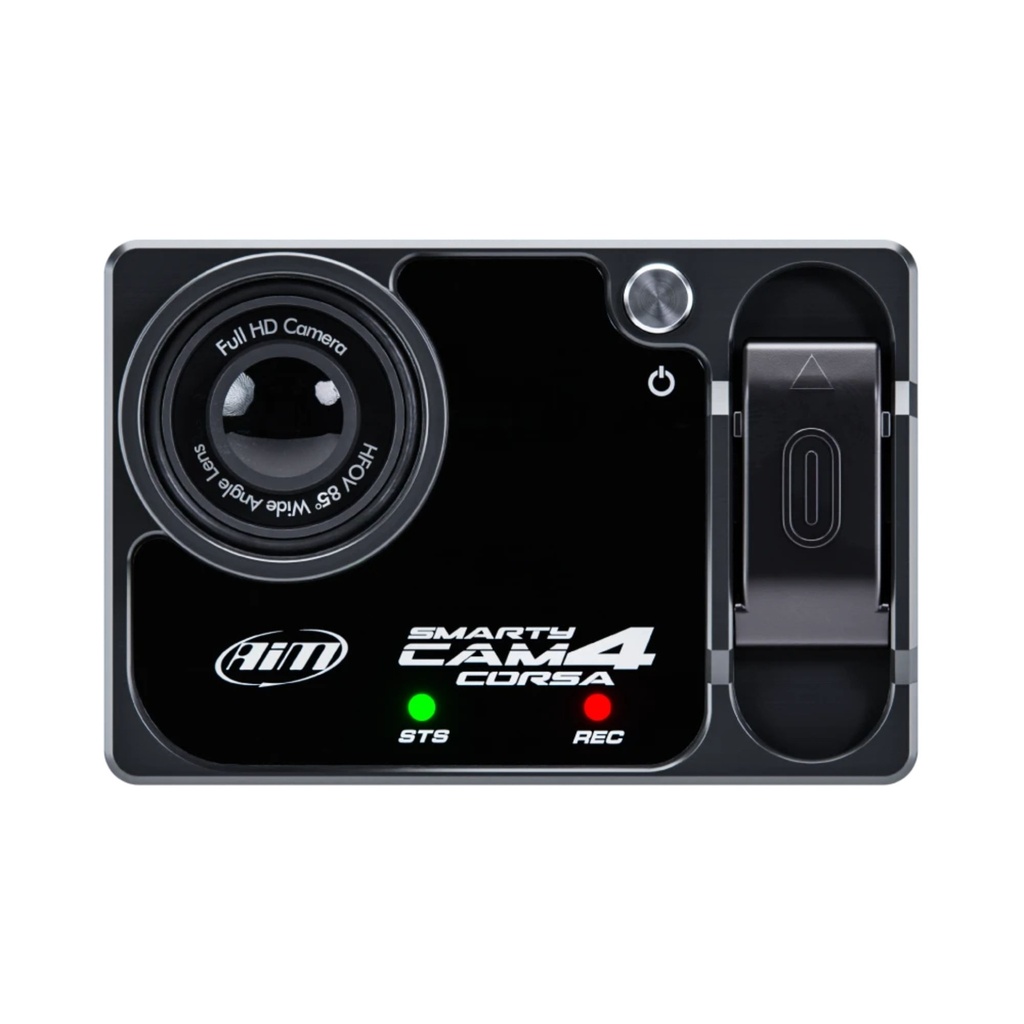

- SmartyCam 4 Corsa Full HD Camera: The SmartyCam 4 Corsa records every lap in full HD, giving you onboard footage that can be combined with lap and ECU data to provide a visual reference when reviewing your driving lines, technique and vehicle performance.
- Sony 12-Megapixel CMOS Sensor: The SmartyCam 4 Corsa uses a Sony 12-megapixel CMOS sensor to capture sharp detail, accurate colours and clear footage in low-light conditions, giving you detailed video for post-session analysis.
- Integrated LSI Image Stabiliser: The camera uses an integrated LSI image stabiliser to reduce vibration, optical distortion and horizon movement, helping you capture smooth and stable onboard footage during demanding track sessions.
- 85° Camera Lens: The SmartyCam 4 Corsa uses an 85° angle lens to record your view of the circuit, providing footage that can be reviewed alongside your logged data to assess driving lines and technique.
- Automatic Video Recording: An integrated 3-axis accelerometer automatically starts and stops the SmartyCam 4 Corsa recording, allowing you to concentrate on driving without manually controlling the camera during your session.
- ECU Data Logging: The Solo 2 DL can log data from your vehicle's ECU, allowing parameters such as engine revs and throttle position to be reviewed after your session to help you assess your driving and vehicle set-up.
- 25Hz GPS Sampling: The Solo 2 DL records position and vehicle speed at up to 25Hz, giving you detailed information about your position around the circuit and allowing you to analyse your racing line against your lap performance.
- 3D Acceleration and Gyro Data: Integrated 3D acceleration and gyro measurement records your vehicle's movements, providing data on acceleration, braking and cornering forces that can help you identify areas of your driving to work on.
- On-Screen Delta Times: Delta timing gives you immediate feedback on your current performance against your best timing, allowing you to see the effect of changes to your driving as you complete each lap.
- Predictive Lap Timing: The Solo 2 DL calculates predictive lap times using your best lap of the day, best lap of the session, previous lap or a user reference lap, giving you ongoing timing information throughout your session.
- Automatic Track Recognition: With over 4,000 tracks pre-loaded, the Solo 2 DL uses your position to identify the circuit and start line coordinates automatically, allowing lap timing to begin as you pass the start line.
- Custom Track Layouts: The Solo 2 DL allows you to create temporary or permanent track layouts when a circuit is not already stored, giving you the ability to record lap data at additional venues.

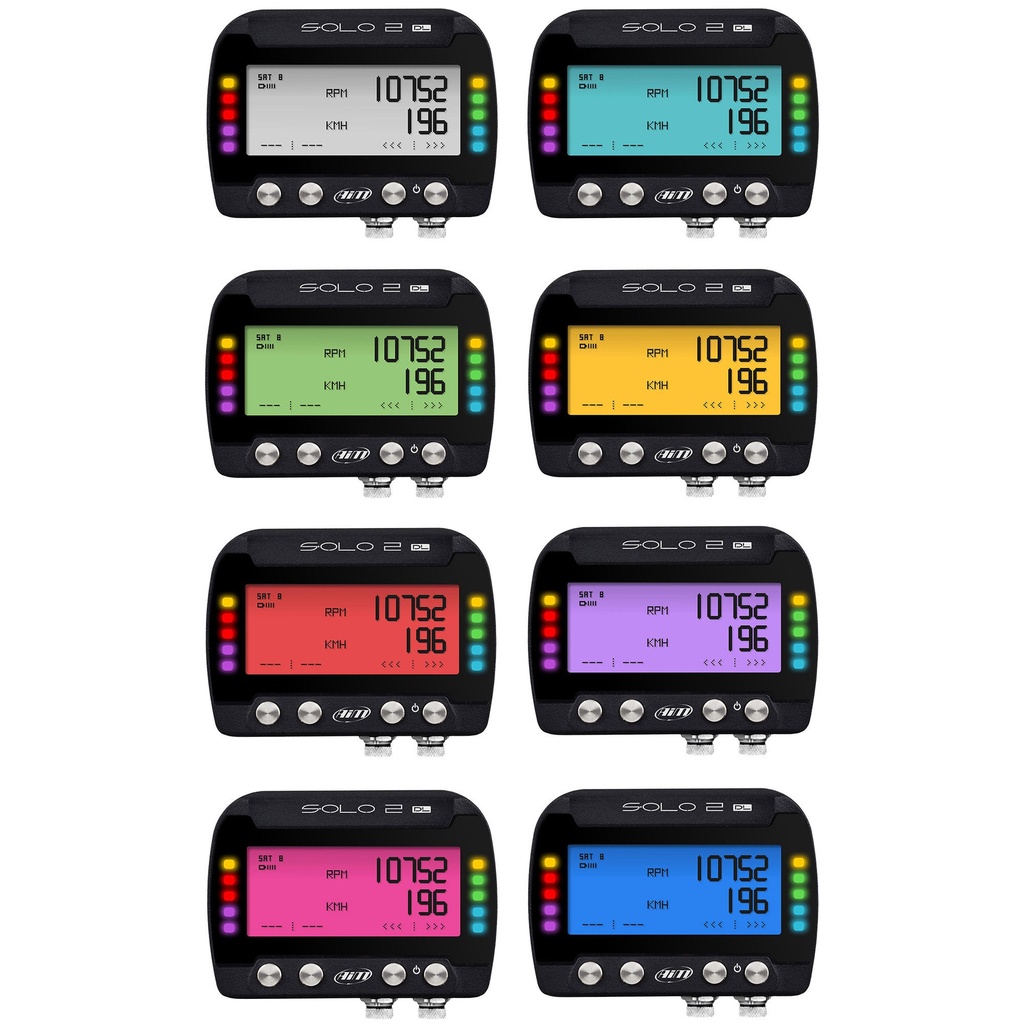

- High-Contrast Display: The Solo 2 DL uses a sharp, high-contrast display with eight backlight colours, helping you read your selected timing and vehicle data while using the unit on track.
- Race Studio 3 Analysis: Data recorded by the Solo 2 DL and video captured by the SmartyCam 4 Corsa can be combined in the free Race Studio 3 software, allowing you to analyse speed, G-forces, throttle position, driving lines and technique alongside your onboard footage.

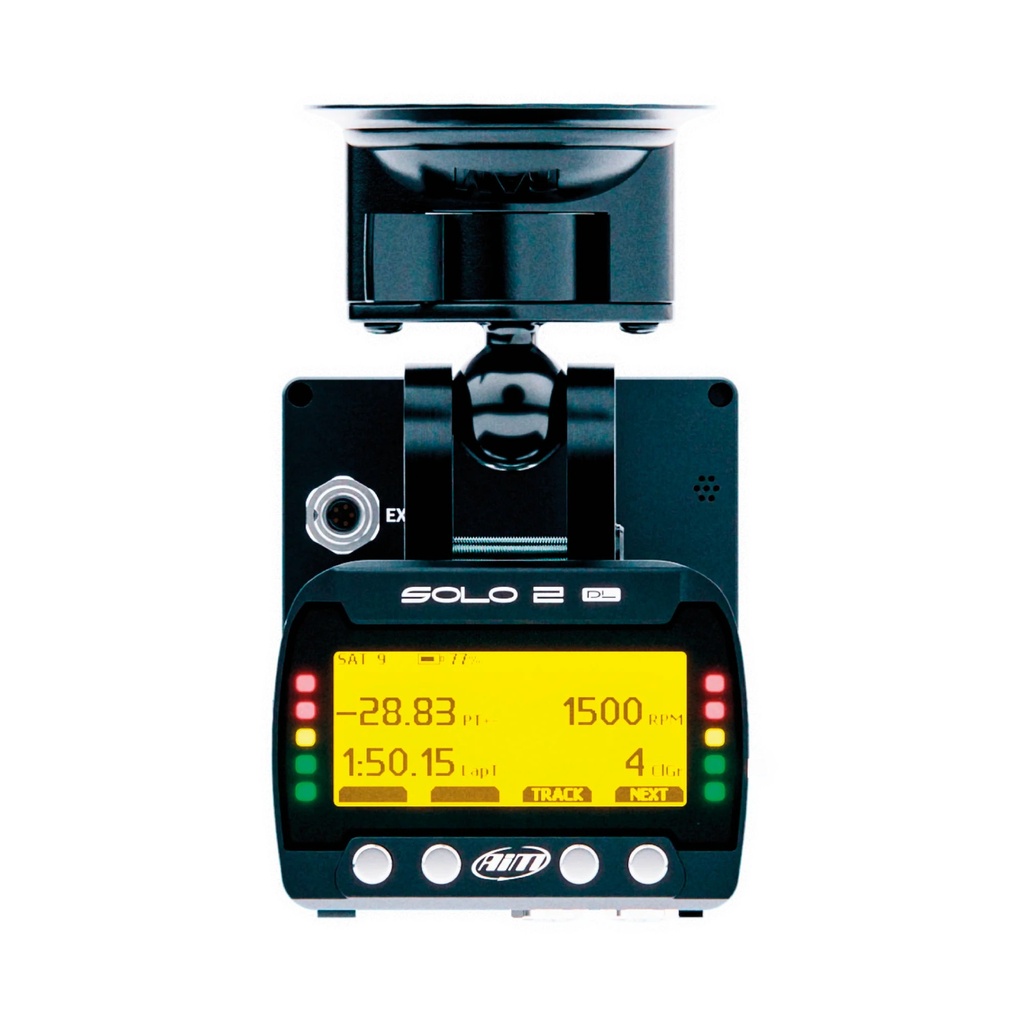

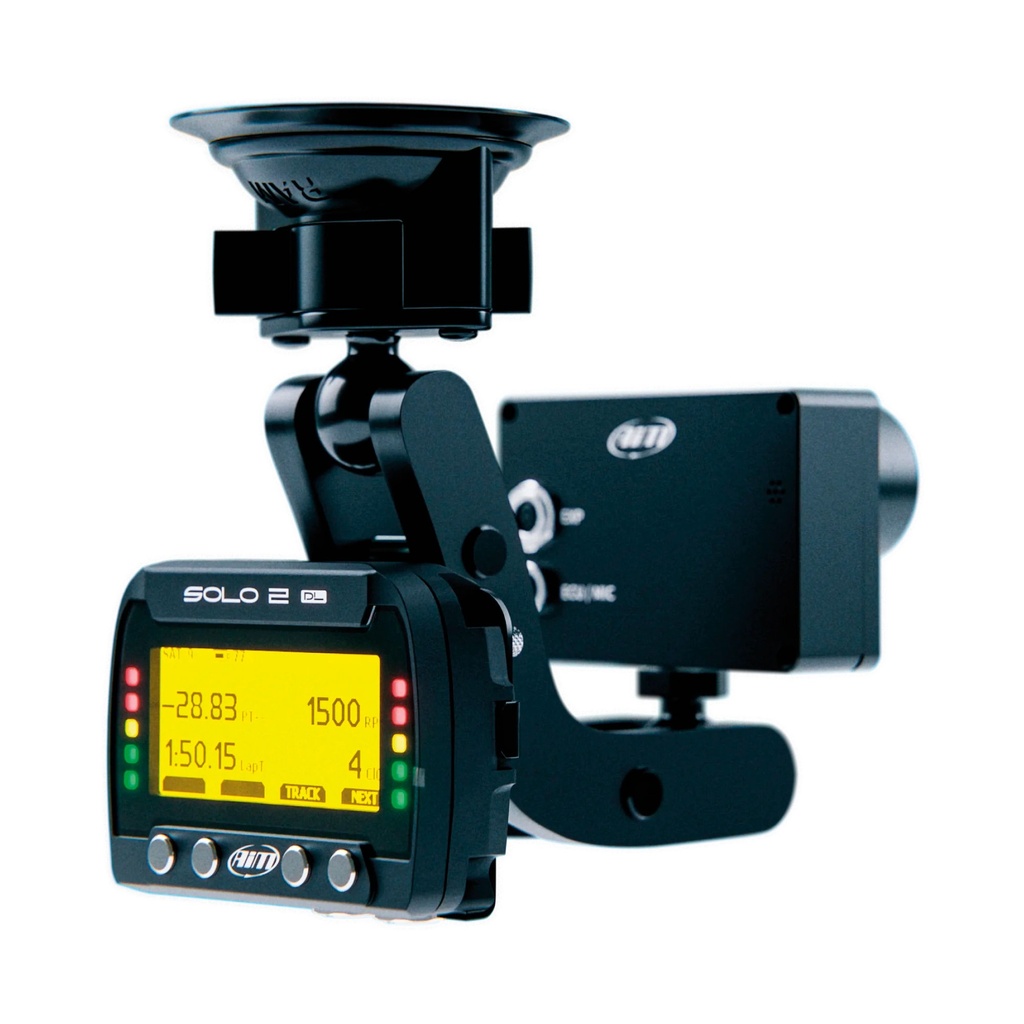

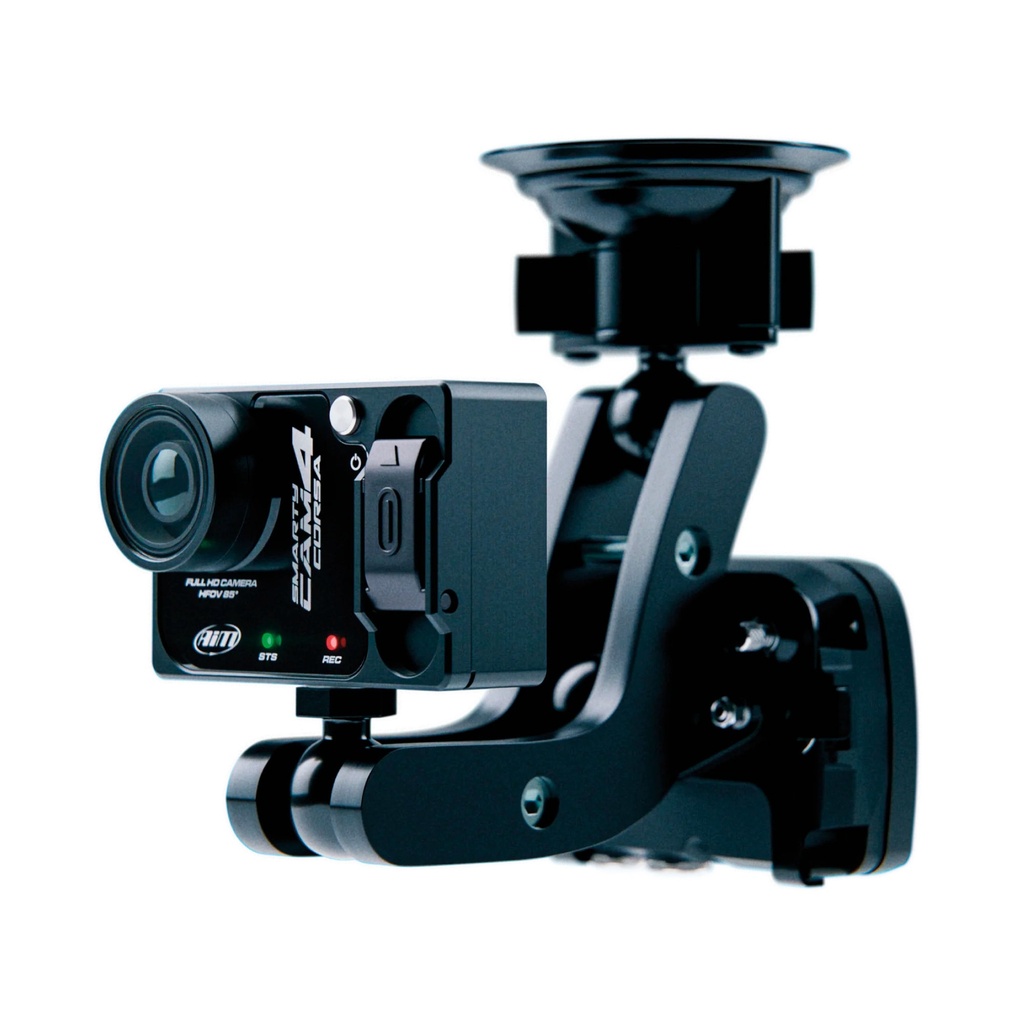

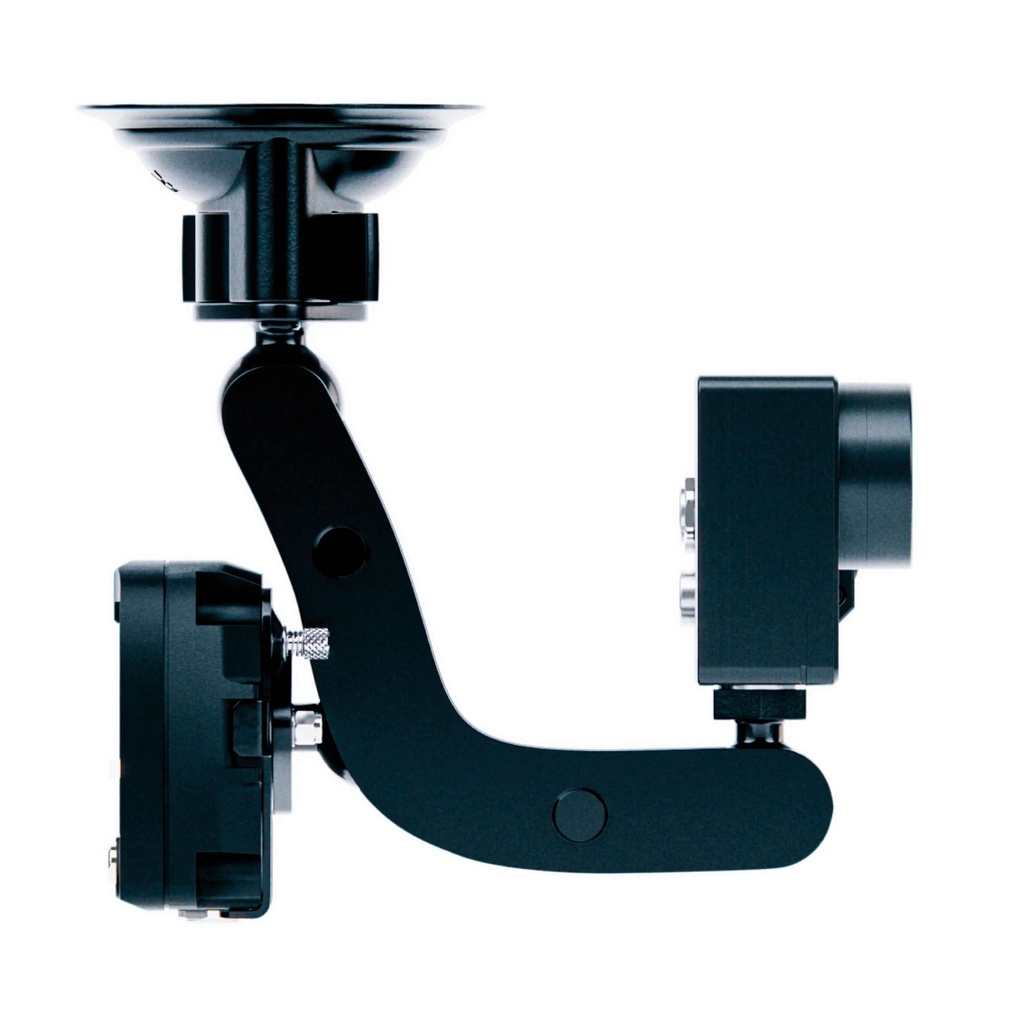

- Double Bracket Mounting Frame: The included double bracket provides a compact mounting point for the Solo 2 DL and SmartyCam 4 Corsa, keeping both devices secured together in the vehicle for a neat installation.
- Multiple Mounting Options: The double bracket can be installed using a suction cup on the windscreen or dashboard, or securely fastened to a roll cage, giving you practical installation options and allowing the kit to be transferred between vehicles.
Getting the best from your car and your driving requires clear information about where time is being gained or lost around the circuit. By recording lap timing, vehicle data, track position and onboard video, this kit gives you the information needed to identify areas of your driving and vehicle set-up that can be addressed. You can review parameters such as speed, engine revs, G-forces and throttle position alongside your racing line and onboard footage to understand what happened during each lap. The straightforward installation also makes the kit practical for regular track days and competitive testing, with the included mounting system allowing quick transfer between vehicles.
Use detailed lap data, ECU information and synchronised onboard video to understand your performance and identify specific areas where lap times can be improved. With the Solo 2 DL and SmartyCam 4 Corsa mounted together in one easy-to-install kit, you have the tools needed to record, review and analyse each track session.
