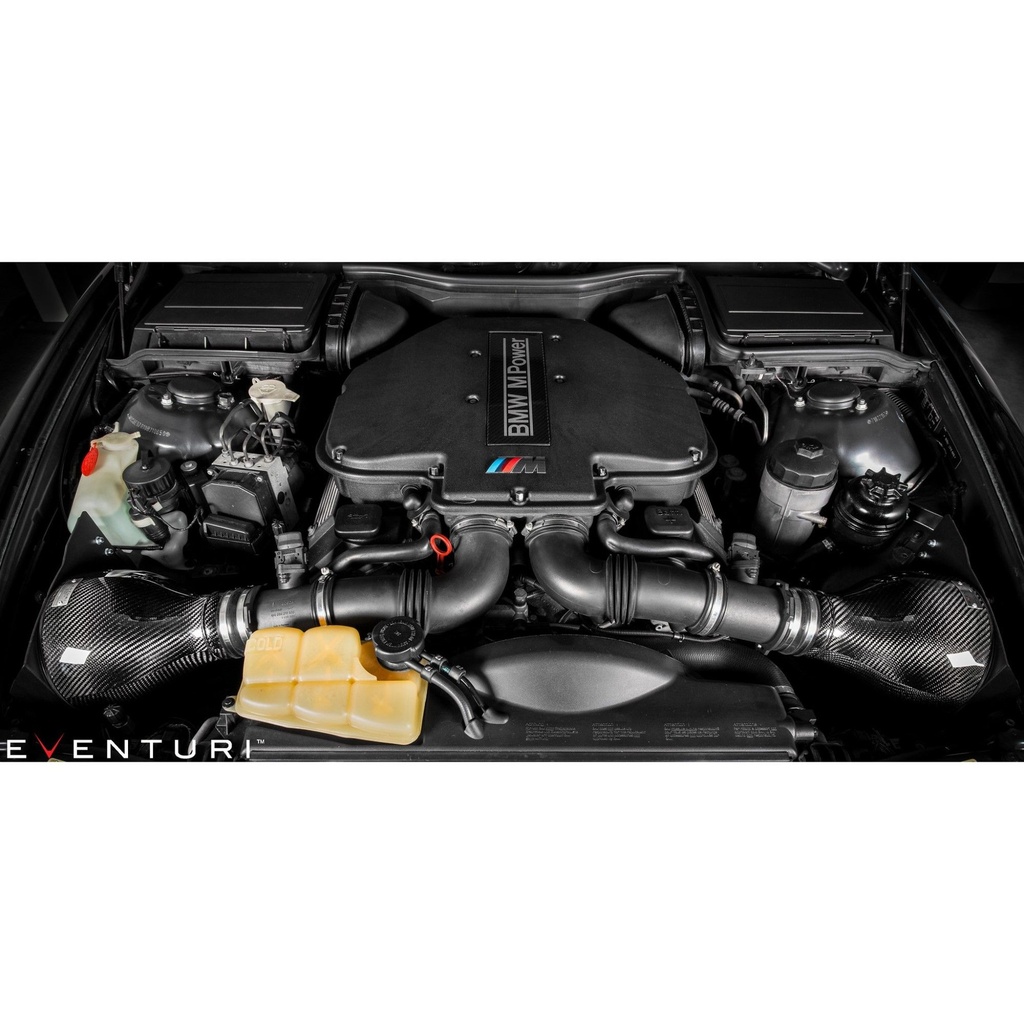

Designed specifically for the BMW (E39) M5, this Eventuri Carbon Fibre Intake System has been developed to provide the intake's most efficient and direct airflow path. Eventuri's patented venturi stack housing and custom intake designs ensure that airflow remains as laminar as possible at all times. Combined with bespoke high-flow filters and vehicle-specific cold air feed/ducts, you get a fully optimised intake system that operates with the lowest inlet air temperatures possible and consistently delivers noticeable performance gains.
Performance Gain: 8-12hp, 8-10ft-lb
At first glance, it's obvious Eventuri intakes are different from the standard filter, intake pipe and heat shield combinations, offered by other aftermarket intake system makers.
Based on their extensive tuning and aeronautics background, the engineers at Eventuri are raising the standards for intake design and development. Focused on a complete solution, each vehicle-specific intake system is extensively developed using cutting-edge design, testing, and prototyping methods. Constructed from only the finest quality components, every intake system undergoes a barrage of Computational Fluid Dynamics (CFD) analysis, including volumetric airflow, intake temperature and dyno testing, to ensure accurate performance figures are achieved.

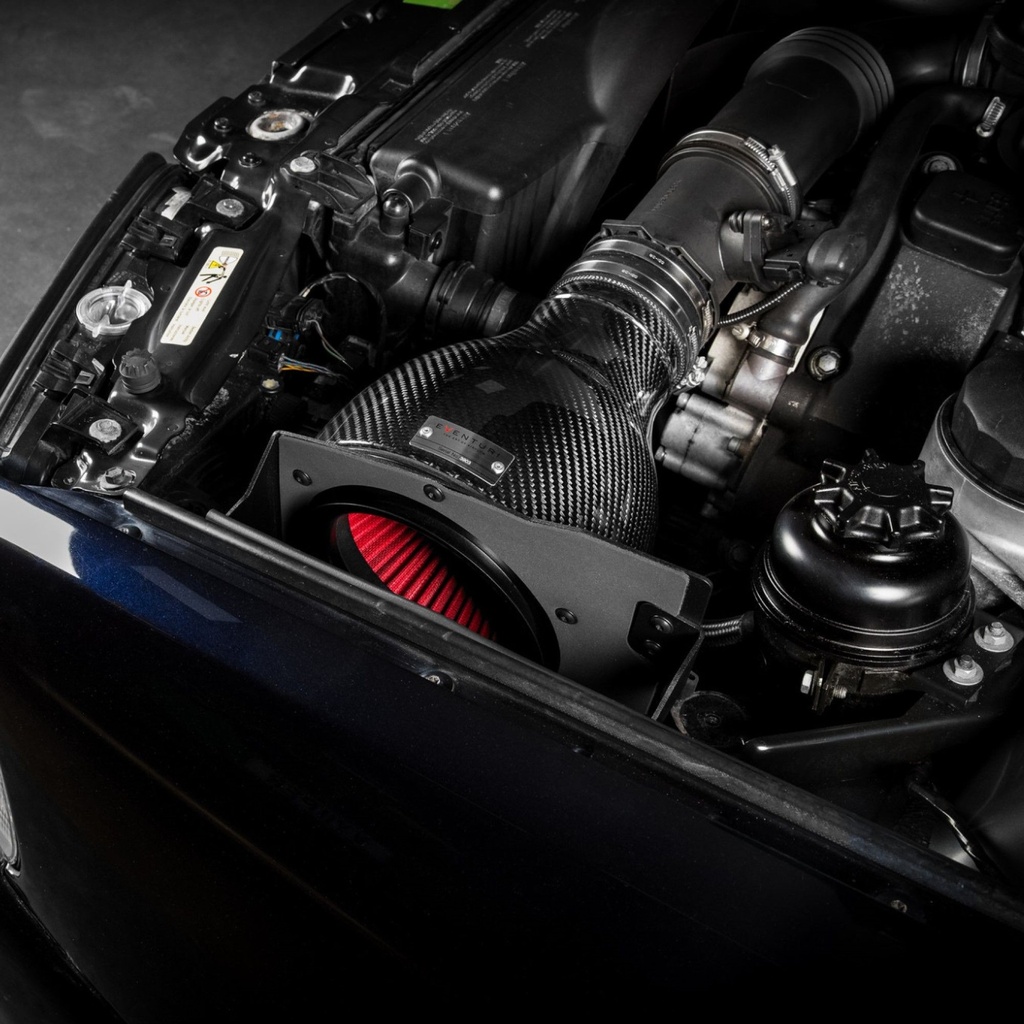

This system uses Eventuri's patent pending carbon fibre venturi housing which provides an aerodynamically efficient airflow path from the filter to the inlet manifold. The filter housing comprises a high-flow filter, aluminium cowl, laser cut bracket and the carbon pod itself.
Eventuri's ground-breaking design utilises a reverse-mounted cone filter that is decoupled from the intake pipe, giving a much smoother airflow, and eliminating the abrupt internal geometry changes found in conventional cone filter/pipe setups. The smooth reduction in cross-sectional area invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. This improved design allows the whole filter housing to act as a velocity stack, increasing the volume and speed of air entering the intake, which directly translates to better engine performance.

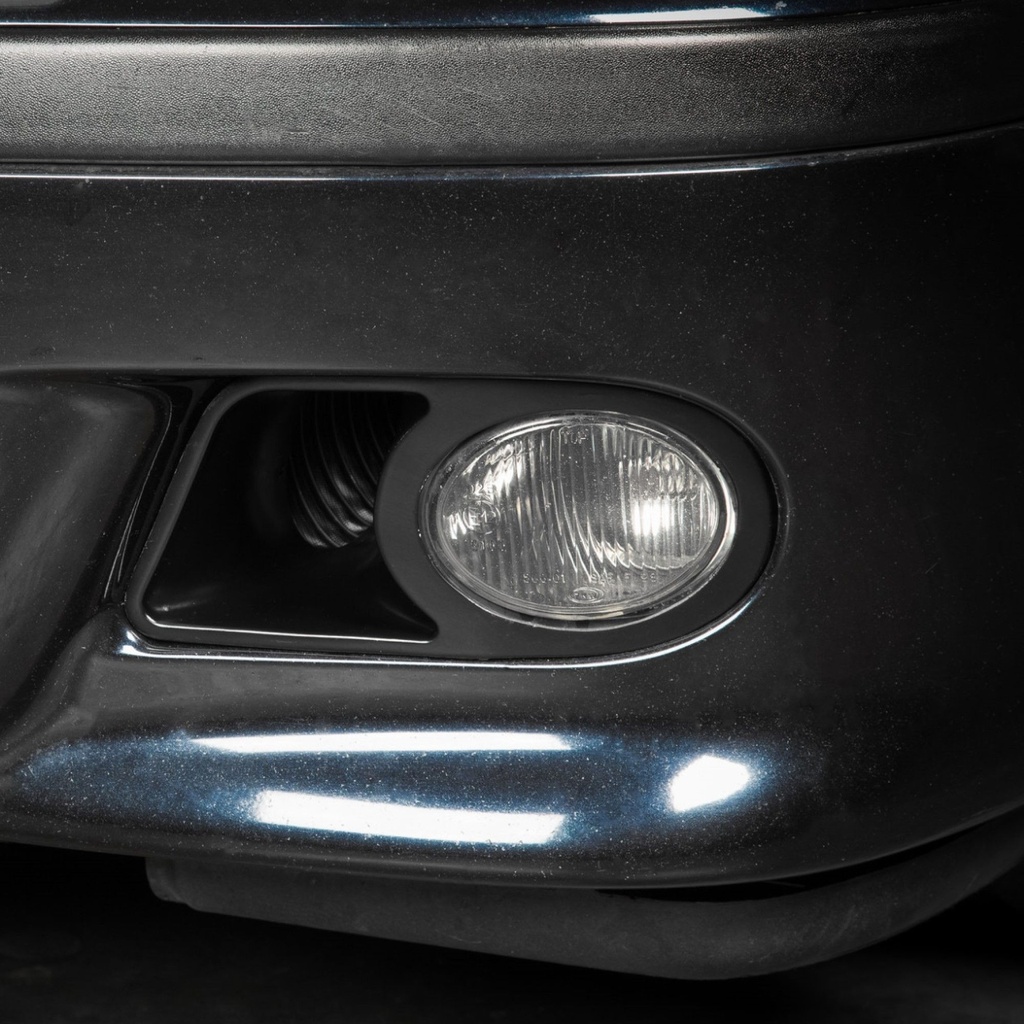

The final parts of the intake system consist of redesigned foglight surrounds that have integrated air ducts. This maximises airflow into the flexible neoprene ducting sections behind and efficiently directs ambient air into the filter ducts, where the laser-cut shields protect against heat soak.
The OE filter and factory-fitted airbox systems create a more turbulent airflow due to the mating of a rectangular air filter/airbox system to a round inlet. Replacing this inefficient set-up with a carbon fibre venturi stack/housing or custom intake design, combined with bespoke filtration, results in not only a more direct and smooth airflow all the way to the intake manifold but a stunning visual upgrade for your engine bay, that is sure to make you the envy of anyone who sees it.
Replacement filter Type - B is available here
Full fitting instructions are found here

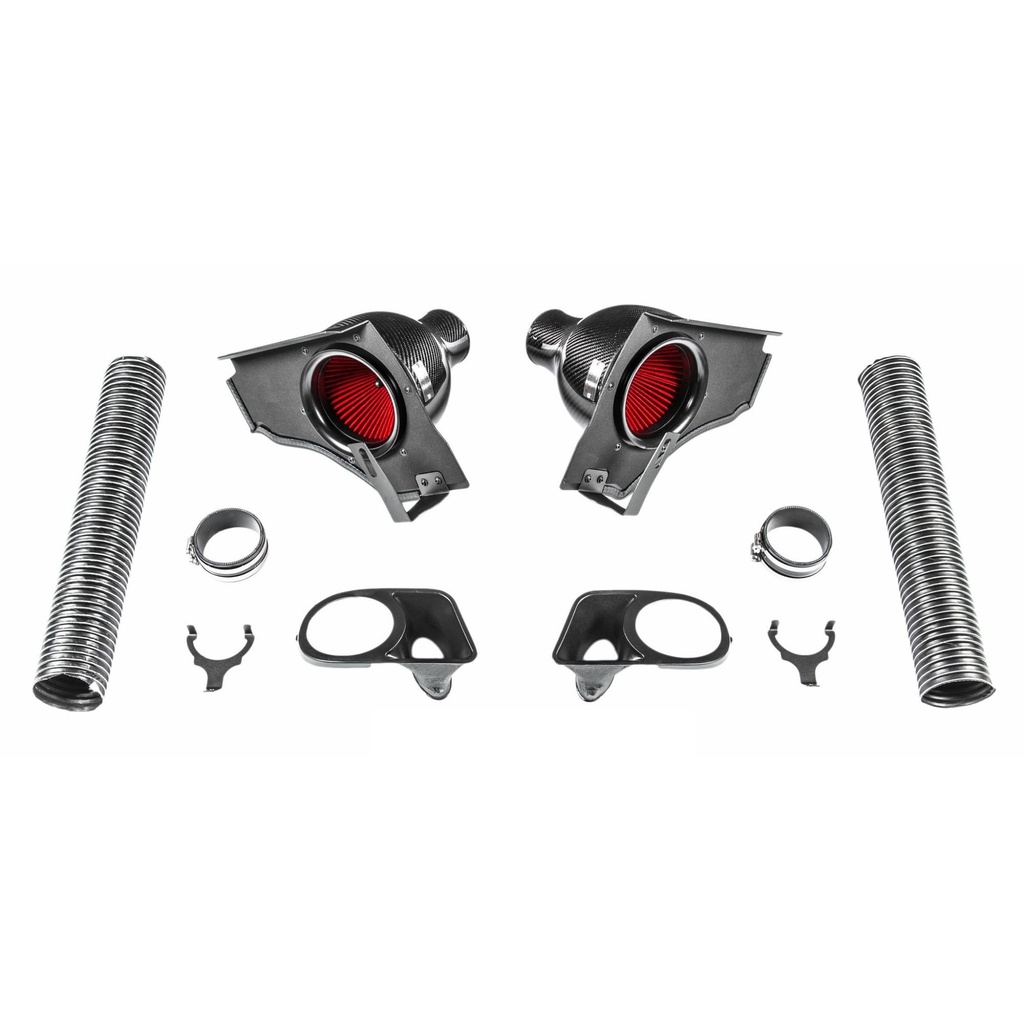

Contents:
2 X Carbon Fibre Venturi Housings
2 X High Flow Generation 2 Air Filters
2 X Aluminium Cowls
2 X Foglamp Surrounds With Integrated Air Ducts
2 X Flexible Neoprene Air Ducting Sections
2 X Laser Cut Aluminium Shields
Laser Cut Custom Brackets
High-Quality Silicon Couplers With Bmw Specification Hose Clamps
